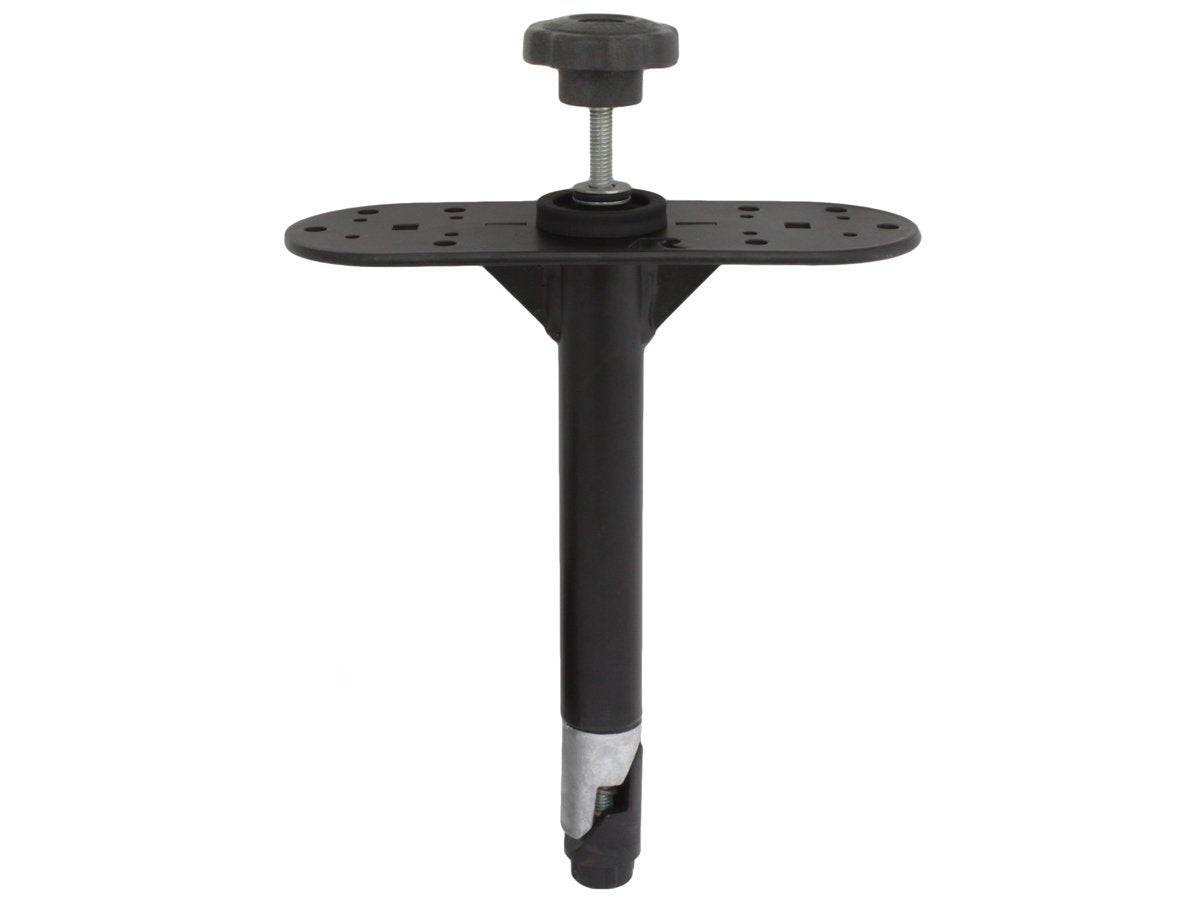

The RAM-VP-TTMFD8U consists of a 8" dual flange plate, connected to a 8" male Tele-Pole™. The flange plate has dual mounting points for swing arms, AMPS hole pattern bases, and the RAM 120 degree hole pattern. Common applications include mounting a display with keyboard, a handheld mobile computer with portable printer or similar device combination. The male Tele-Pole™ is 8" long and has a diameter of 1.328".
Hole Patterns: 1. (2 quantity) AMPs hole pattern 2. (2 quantity) Two holes at 180 degrees 3. (2 quantity) Three holes at 120 degrees
Included with Purchase: 8" long dual flange, threaded rod, knob and washer assembly, as well as hardware to attach a double or single swing arm to the flanges and two sets of hardware to attach the RAM-202U to the flanges.
Note: The "U" in the part number reflects product packaged in poly bag.
