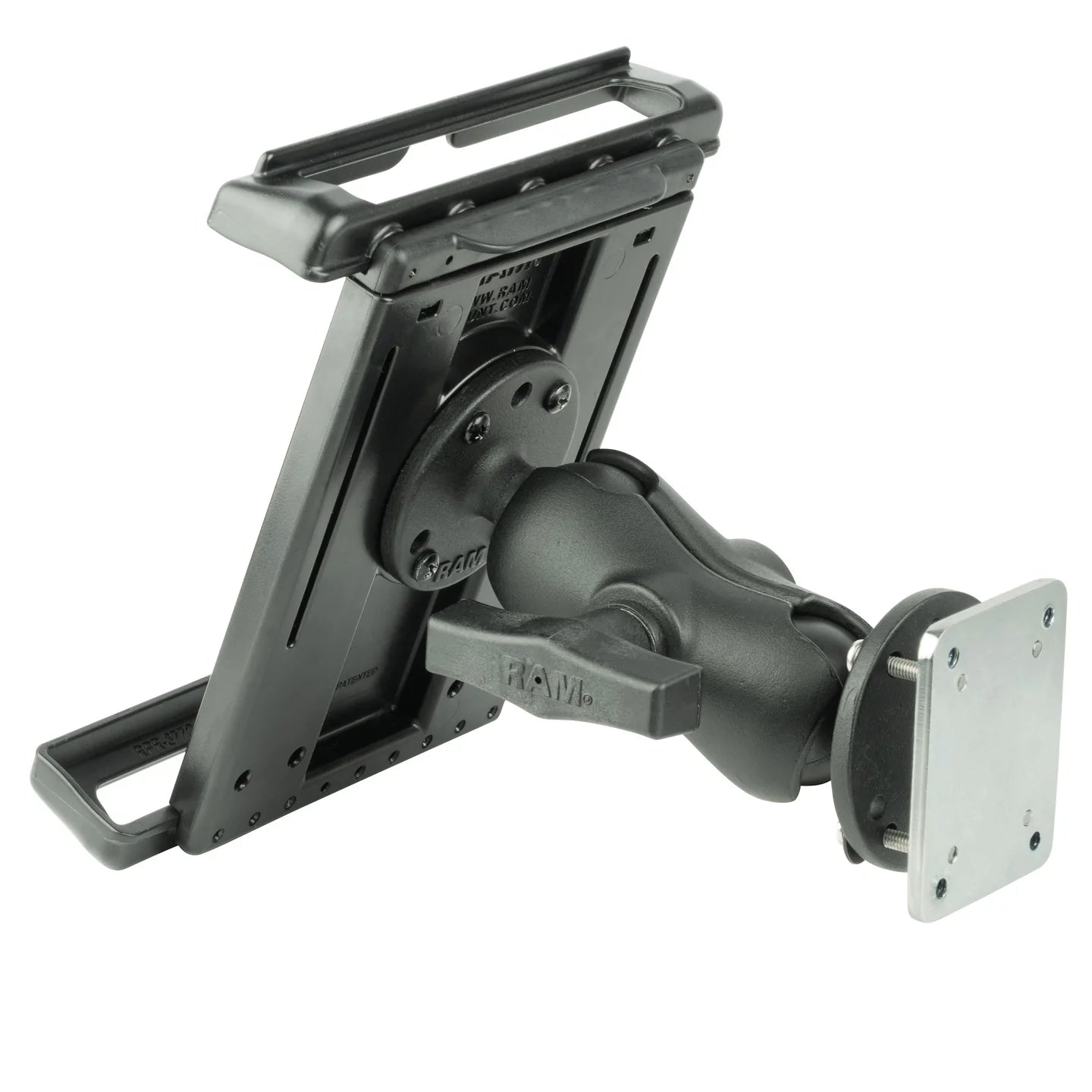

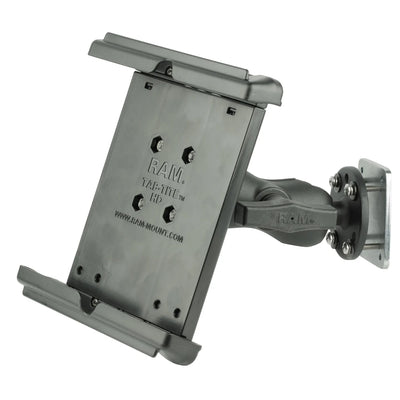

RAM® Dashboard Mount with Backing Plate for 8" Tablets with Cases - RAM-B-101B2-TAB12U

This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware.

The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

• Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
• Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

HARDWARE INCLUDED:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

HOLDER DIMENSIONS:
Height Range: 7.125" - 9.5" Width Range: 5.06" - 5.68" Depth Range: .13" - 1"

SOCKET TO SOCKET LENGTH:
3"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE:
2.5" Diameter

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum High strength composite Powder coated steel

PACKAGING TYPE:
Poly Bag

WEIGHT:
1.04 lb

Apple:

• iPad mini 6 with Case

Amazon:

• Fire 7 Kids
• Fire HD 8 Kids
• Fire HD 8 with Case

ASUS:

• MeMO Pad 8 with Case
• VivoTab 8 with Case

Dell:

• Venue 8 with Case

• Venue 8 (2014) with Case

• Venue 8 7840 with Case

• Venue 8 Pro with Case

Huawei

• Media Pad M3 with Case

• Media Pad M3 Lite with Case

• Media Pad T1 8.0 with Case

• Media Pad T3 8 with Case

Lenovo:

• Ideapad Miix 300 with Case
• IdeaTab A2107 with Case
• Tab 2 A8 with Case
• Tab 4 8 with Case
• Tab 4 8 Plus with Case
• Tab A8-50 with Case
• Tab S8 with Case
• Tab3 8 with Case

LG:

• G Pad F 8.0 (2nd Gen) with Case
• G Pad F2 8.0 with Case
• G Pad II 8.0 with Case
• G Pad X II 8.0 with Case

Nvidia:

• Shield Tablet with Case

Panasonic:

• Toughpad FZ-M1

Samsung:

• Galaxy Tab 2 7.0 with Case
• Galaxy Tab 3 8.0 with Case
• Galaxy Tab A 8.4 with Case
• Galaxy Tab A7 Lite 8.7 with Case
• Galaxy Tab E 8.0 with Case
• Galaxy Tab Pro 8.4 with Case

Social

• Mobile Rhino T80
