RAM® Brake/Clutch Reservoir Mount for Garmin Rino 520, 530 + More - RAM-B-174-GA20U

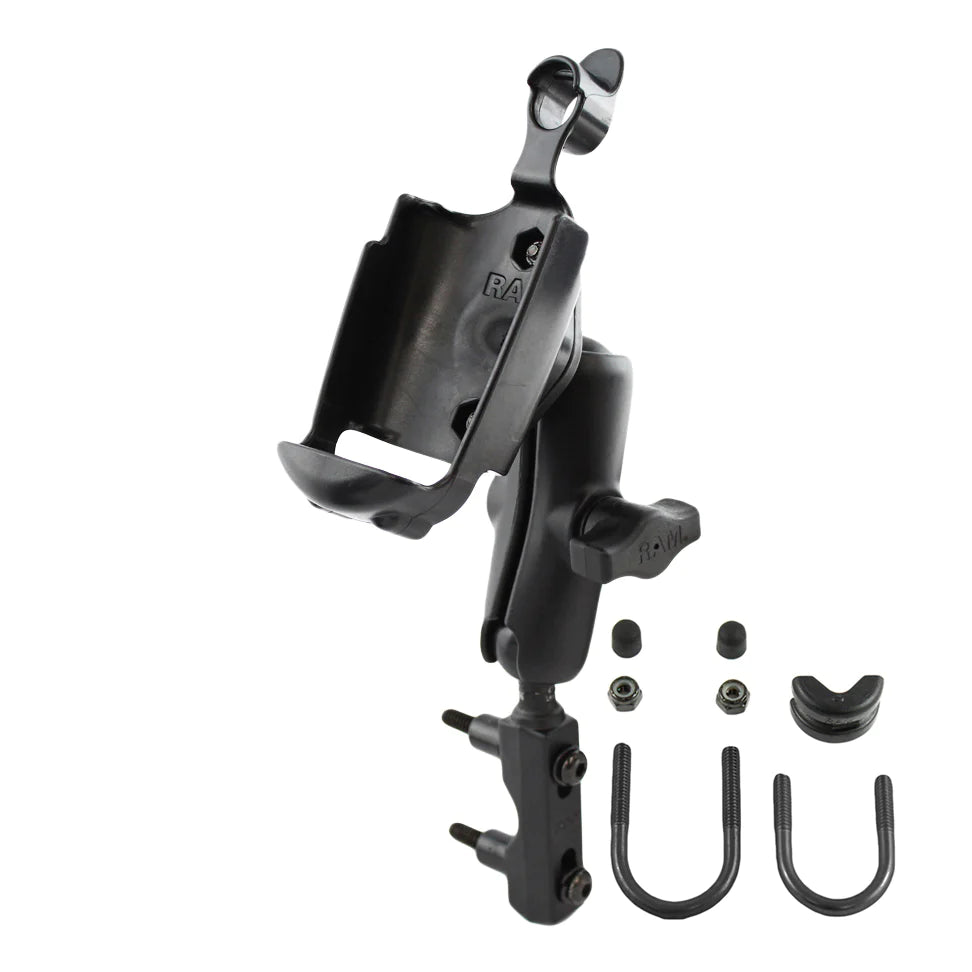

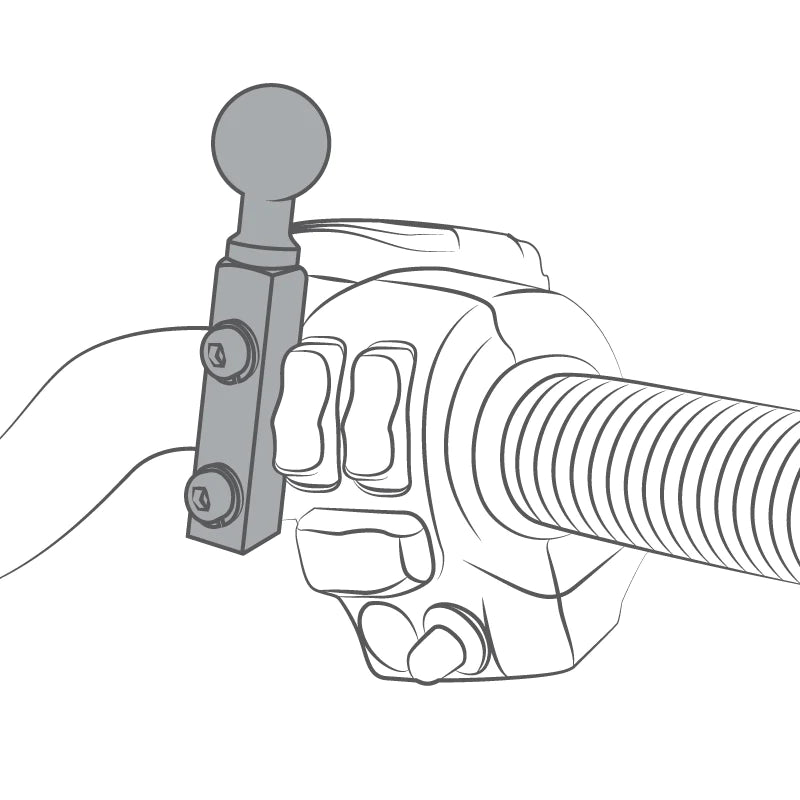

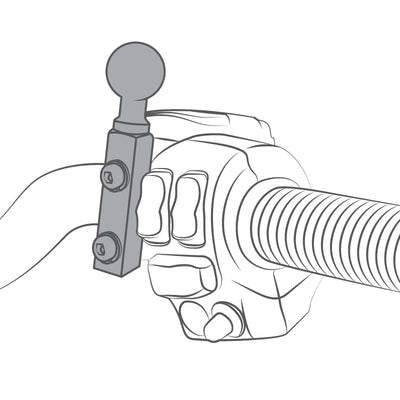

The RAM-B-174-GA20U consists of a medium length B-size arm with our Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base, and form fitting cradle for Garmin Rino 520 and 530 series.

HARDWARE INCLUDED:
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE:
.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH:
3"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum
High strength composite

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.51 lb

  RAM® Form-Fit Cradle for the Garmin Rino 520, 520HCx, 530 & 530HCx - RAM-HOL-GA20U

  RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - RAM-B-174U

COMPATIBLE DEVICES

• Garmin:

  Rino 520
  Rino 520HCx
  Rino 530
  Rino 530HCx
