RAM® Brake/Clutch Reservoir Mount for Garmin nuvi 1390, 2495LMT + More - RAM-B-174-GA34U

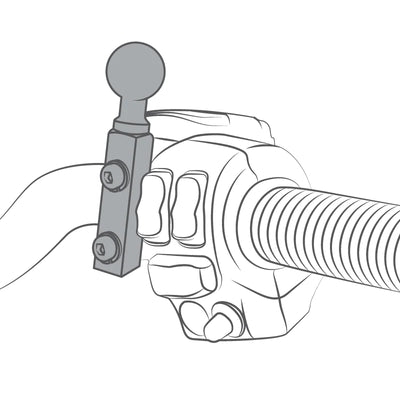

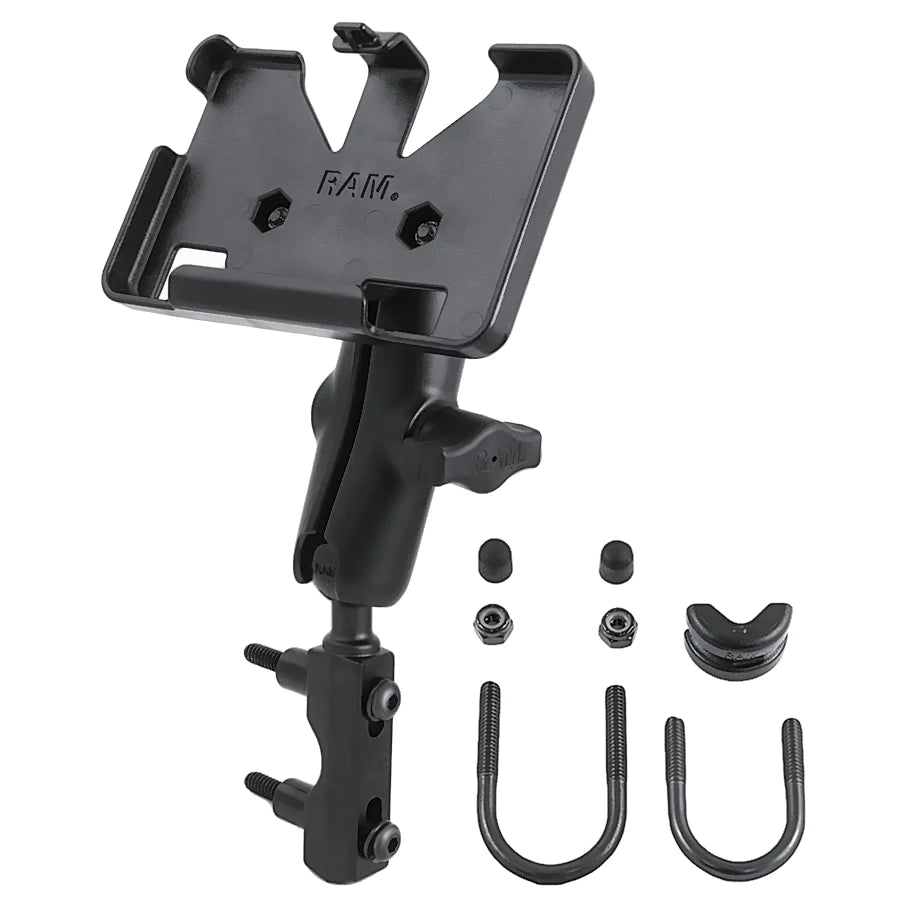

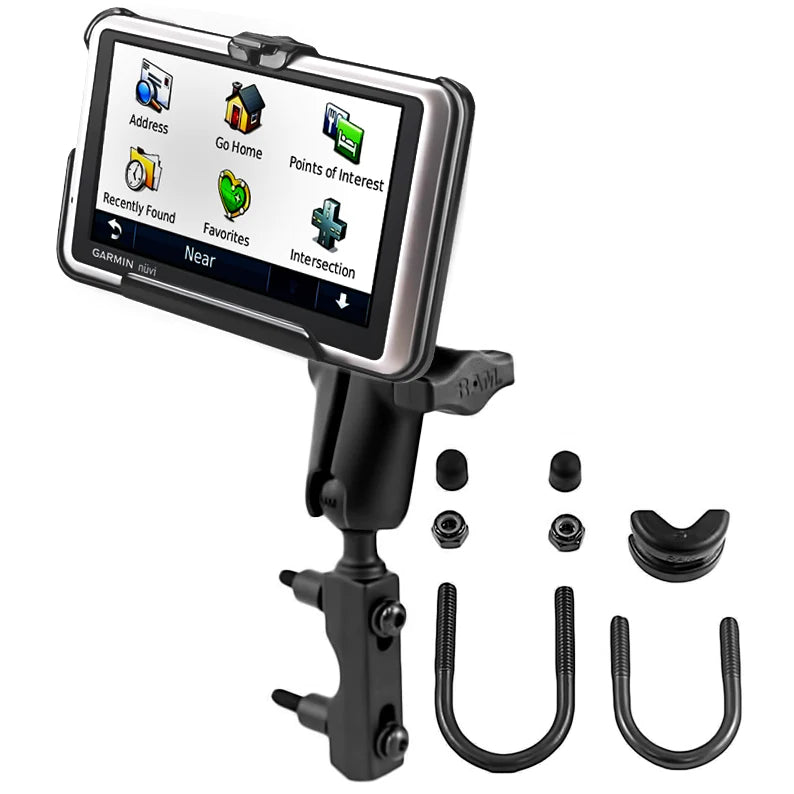

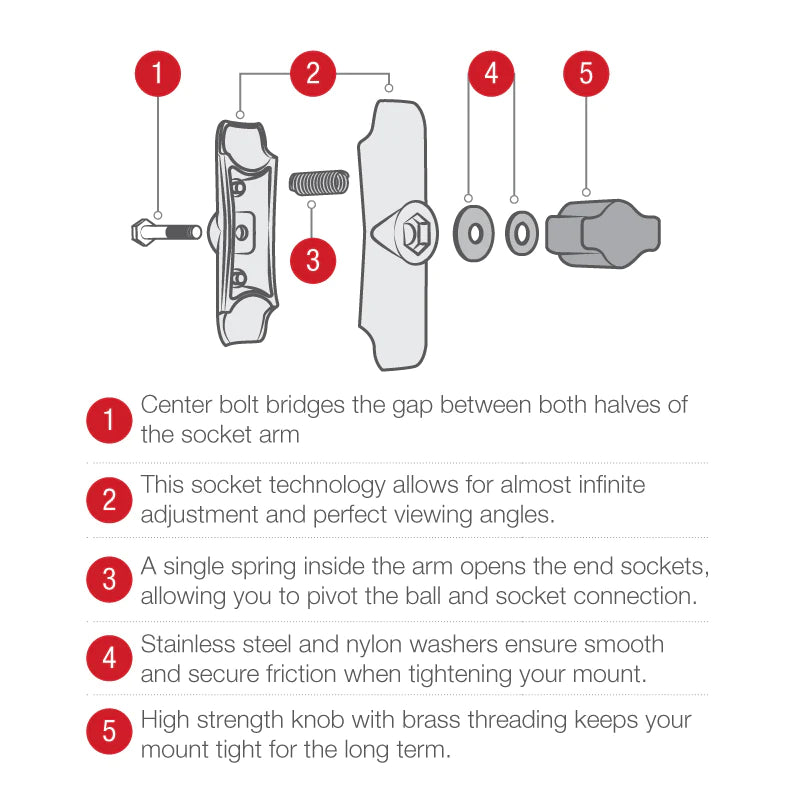

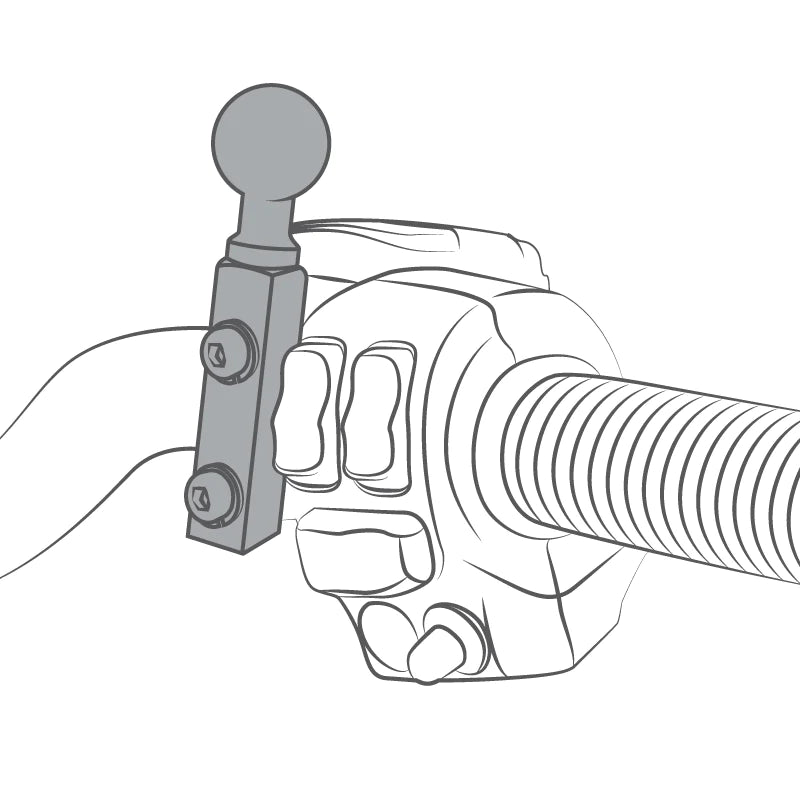

The RAM-B-174-GA34U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond adapter base and custom high strength composite cradle for the Garmin nuvi 1300 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle nuvi mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

HARDWARE INCLUDED:
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE:
.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH:
3"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
Marine-grade aluminum
High strength composite

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.51 lb

COMPATIBLE DEVICES

• Garmin:

  nuvi 1300
  nuvi 1310T
  nuvi 1350
  nuvi 1350T
  nuvi 1370T
  nuvi 1390
  nuvi 1390T
  nuvi 2455LT
  nuvi 2455LMT
  nuvi 2475LT
  nuvi 2495LMT
