RAM® Tough-Charge™ 15W Wireless Charging Mount with Tough-Claw™ - RAM-B-400-A-UN12W-V7M-1

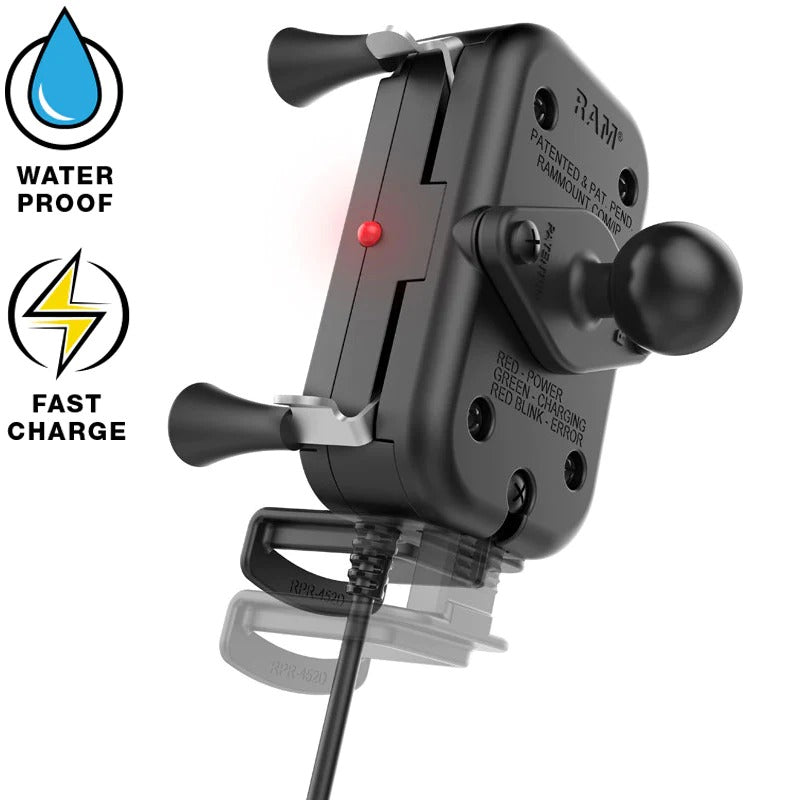

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.

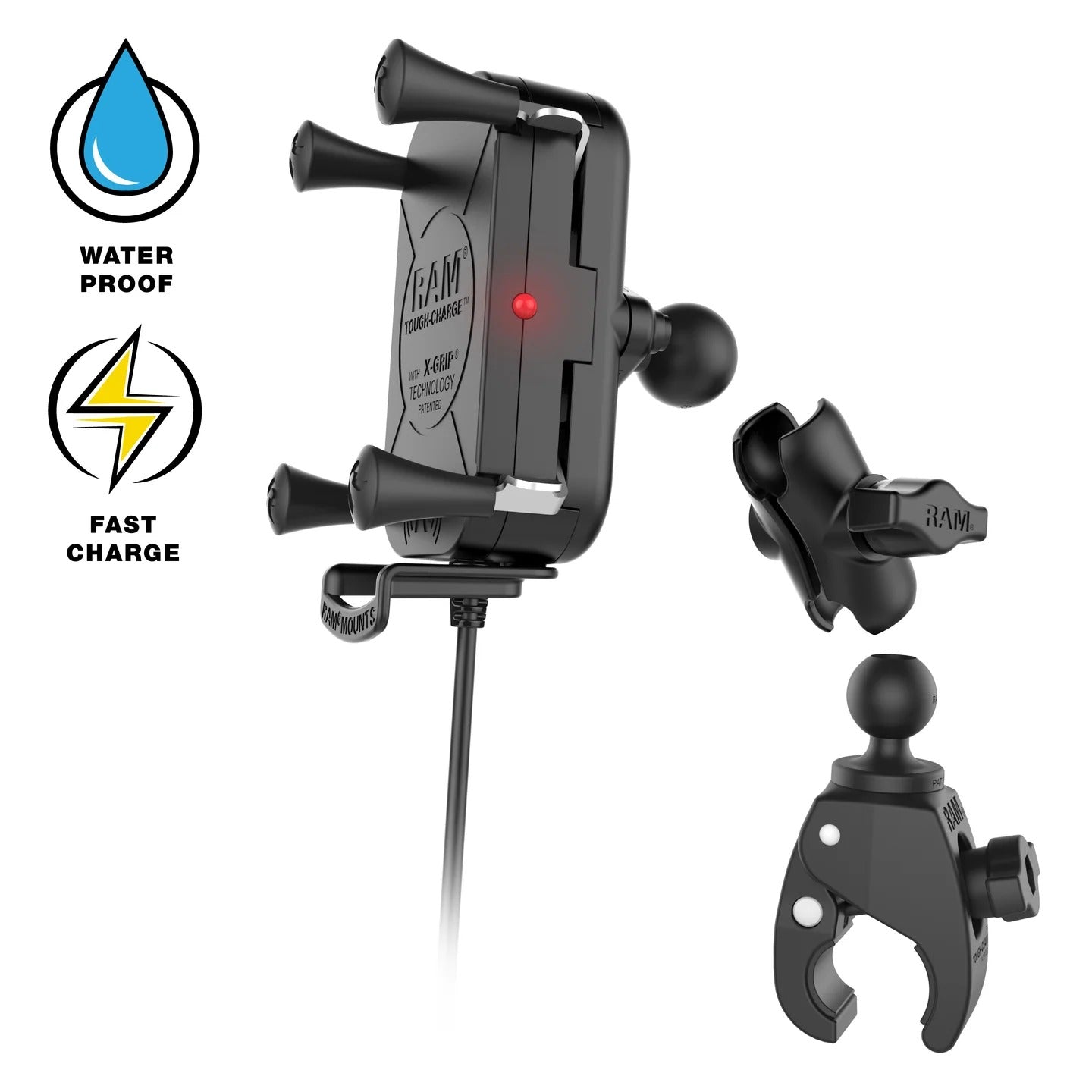

This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and a RAM® Tough-Claw™ clamping base. With the RAM® Tough-Claw™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.5” in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

• Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output
• Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

HARDWARE INCLUDED:
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection

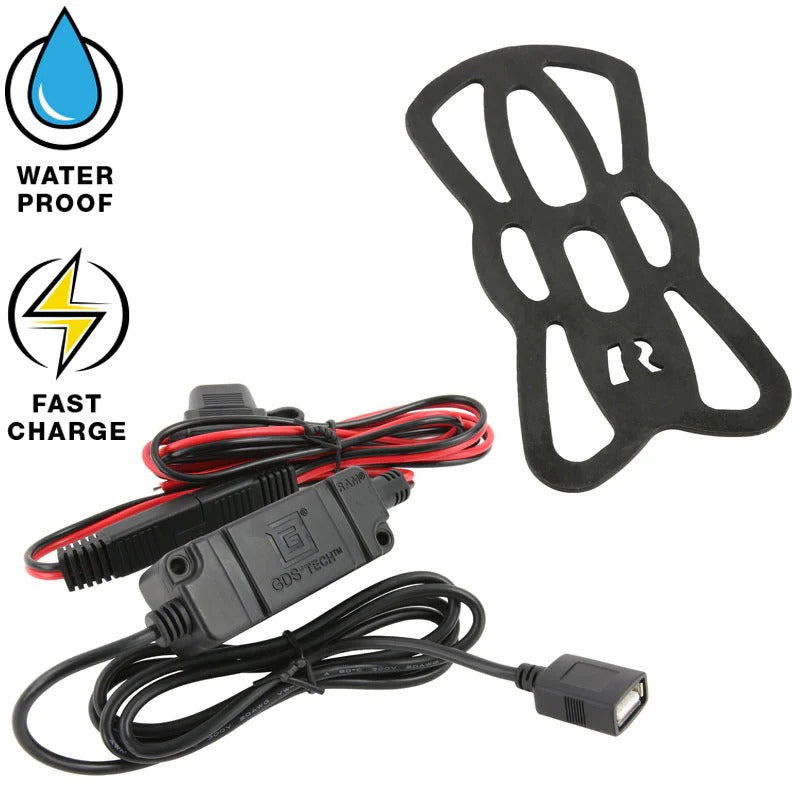

(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties

HOLDER DIMENSIONS:
Width Range: 2.375" - 3.25"
Depth Range: .875" max

CLAMP RANGE:
.625" - 1.14" diameter

SOCKET TO SOCKET LENGTH:
1.75"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
High strength composite
Stainless steel

PACKAGING TYPE:
Retail Box

POWER SPECIFICATIONS:
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies

OPERATING TEMPERATURE:
0°C to +37.7°C

COMPLIANCE:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS:
CE Certification
KC
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY:
1 year warranty

WEIGHT:
1.81 lb

ADDITIONAL INFORMATION:

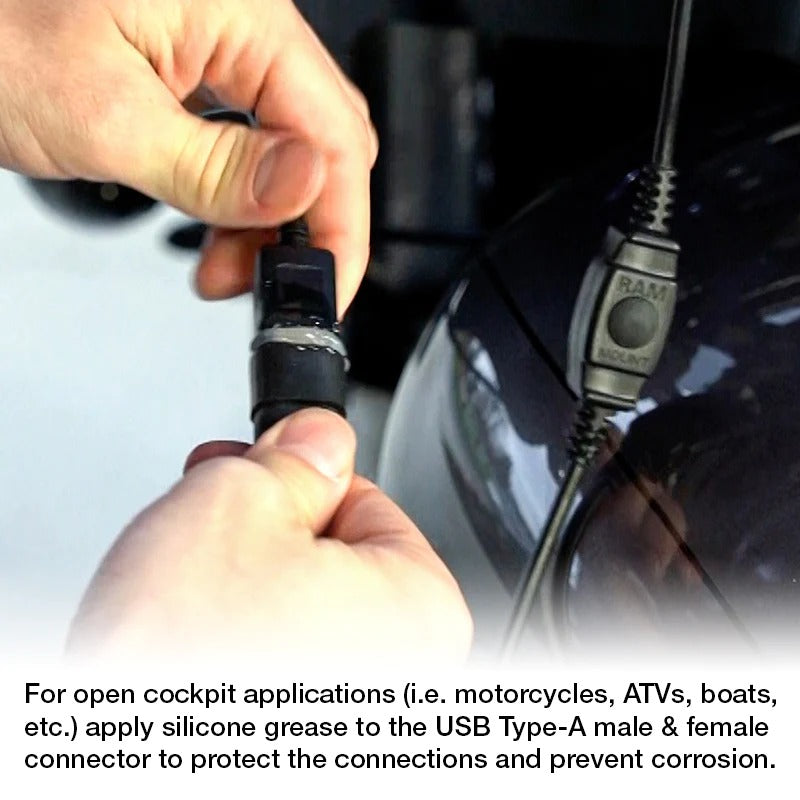

IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty. Click here for instructional video.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.

COMPATIBLE DEVICES

• Apple:

  iPhone 11
  iPhone 11 Pro
  iPhone 11 Pro Max
  iPhone 8
  iPhone 8 Plus
  iPhone SE
  iPhone X
  iPhone Xr
  iPhone Xs
  iPhone Xs Max

• Blackberry:

  Evolve X

• Blackview:

  BV9900
  BV9900 Pro

• Google:

  Pixel 3
  Pixel 3 XL
  Pixel 4
  Pixel 4 XL
  Pixel 5
  Pixel 6
  Pixel 6 Pro
  Pixel 7
  Pixel 7 Pro

• Huawei:

  Mate 20 Pro
  P30 Pro

• LG:

  G6
  G6+
  G7 ThinQ
  G8 ThinQ
  G8S ThinQ
  V30
  V35 ThinQ
  V40 ThinQ
  V50 ThinQ

• Nokia:

  8 Sirocco
  9 PureView

• Razer:

  Phone 2

• Samsung:

  Galaxy Note 10
  Galaxy Note 10 Plus
  Galaxy Note 5
  Galaxy Note 8
  Galaxy Note 9
  Galaxy S10
  Galaxy S10 5G
  Galaxy S10+
  Galaxy S10e
  Galaxy S20
  Galaxy S20+
  Galaxy S20 Ultra 5G
  Galaxy S21 5G
  Galaxy S21+ 5G
  Galaxy S21 Ultra 5G
  Galaxy S22 5G
  Galaxy S22+ 5G
  Galaxy S22 Ultra 5G
  Galaxy S23
  Galaxy S23+
  Galaxy S23 Ultra
  Galaxy S6
  Galaxy S6 Edge
  Galaxy S6 Edge+
  Galaxy S7
  Galaxy S7 Active
  Galaxy S7 Edge
  Galaxy S8
  Galaxy S8+
  Galaxy S8 Active
  Galaxy S9
  Galaxy S9+

• Sony:

  Xperia XZ2
  Xperia XZ2 Compact
  Xperia XZ3

• Xiaomi:

  Mi 9
  Mi 9 Explorer
  Mi Mix 2S
  Mi Mix 3

• ZTE:

  Axon 10 Pro
  Axon 9 Pro
