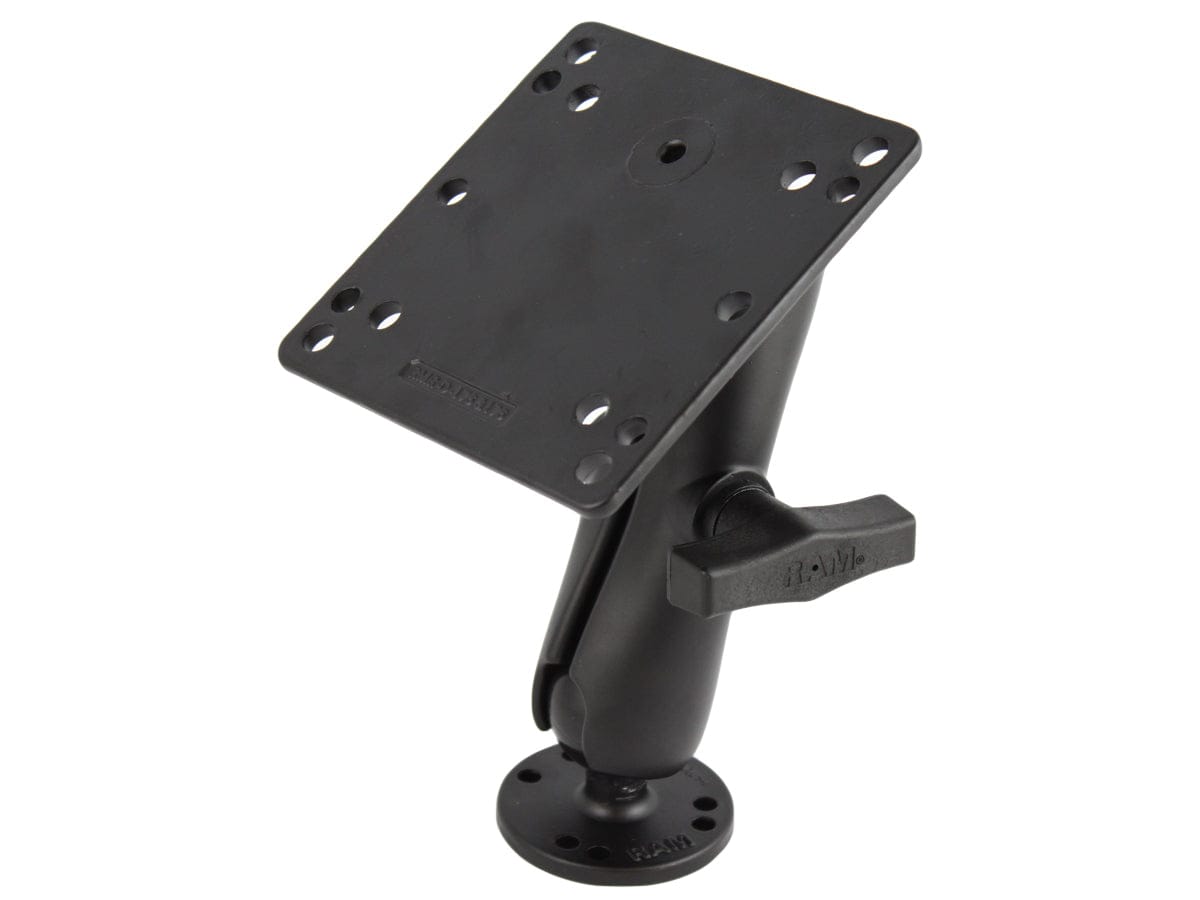

RAM C Size 1.5" Ball Mount with 2.5" Round Plate AMPs Hole Pattern & 4.75" Square Plate VESA 75mm and 100mm Hole Patterns - RAM-101U-246

The RAM-101U-246 consists of a 2.5" diameter round base with the universal AMPS hole pattern, STANDARD length double socket arm and 4.75" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Overall Height:
7.135"

Weight Capacity:
Up to 10 lbs.

Plate Hole Patterns:
100 x 100 VESA Pattern
75 x 75 VESA Pattern
100 x 50 Half VESA Pattern

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5" Rubber Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
1.3 lbs.

RAM 1.5" Diameter Ball Mount with 2.5" Round Base (AMPs Hole Pattern) & 4.75" VESA Base
