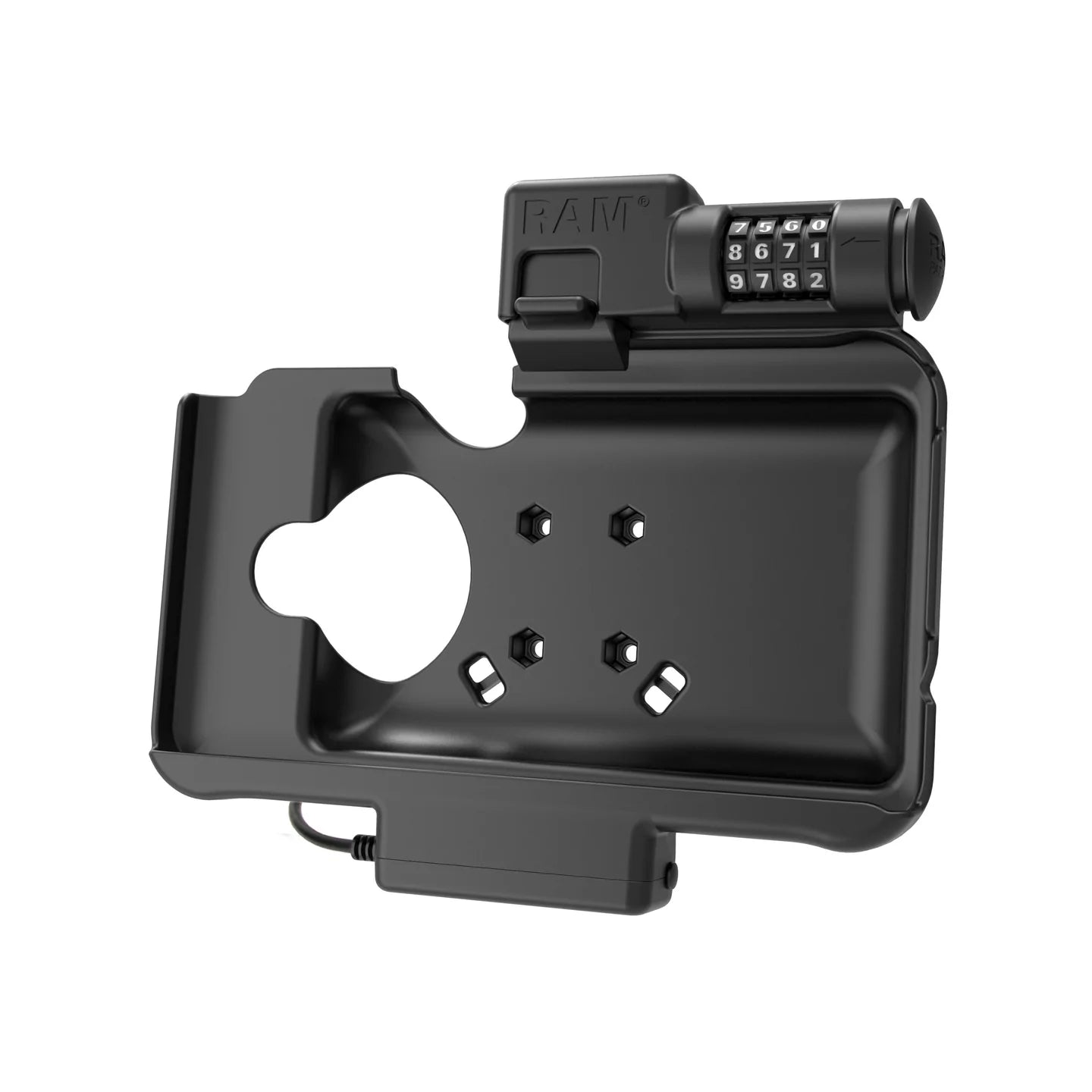

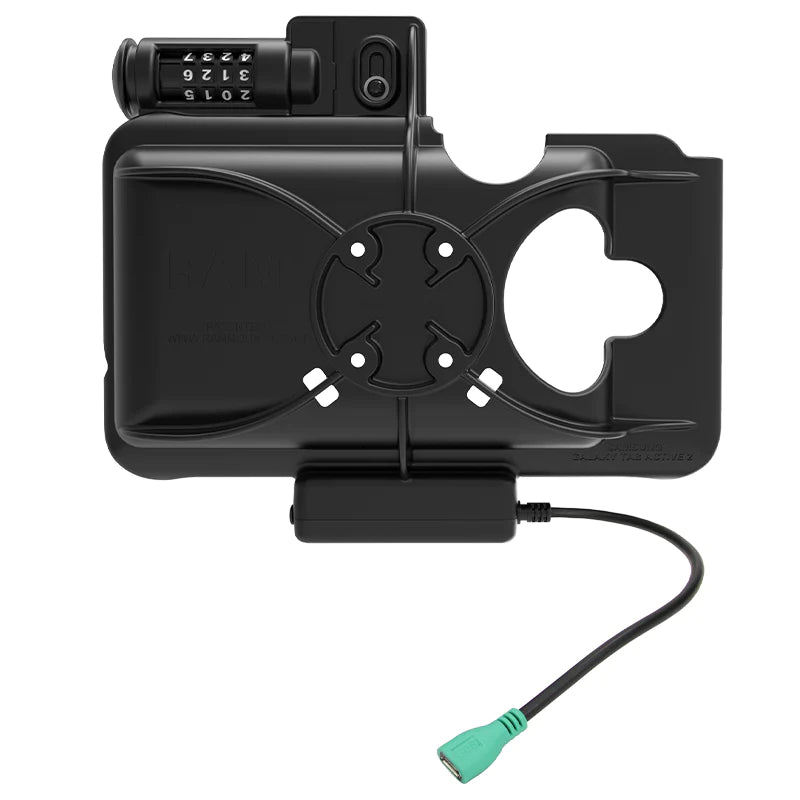

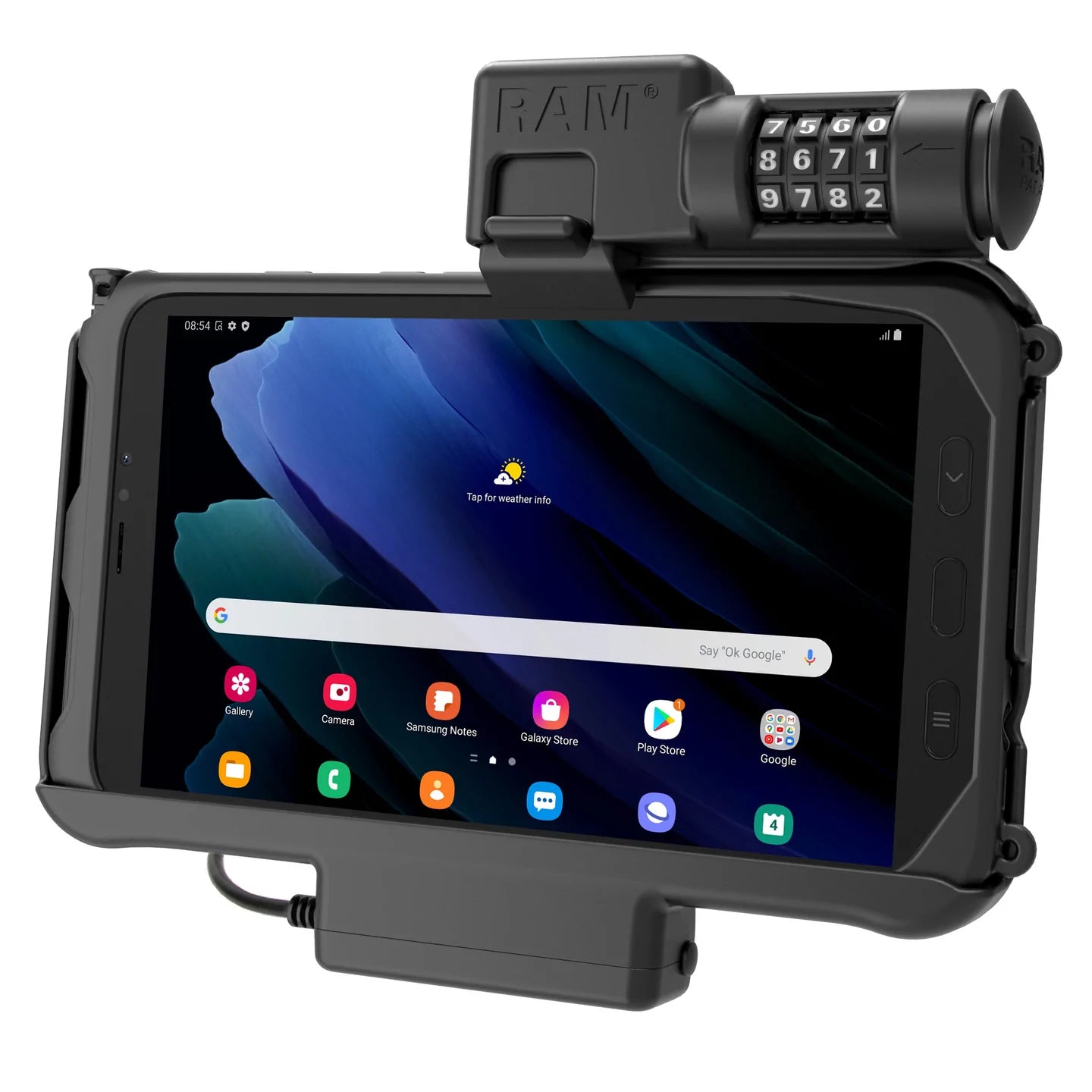

RAM® Combo Locking Powered Dock for Samsung Tab Active5 & 3 - RAM-HOL-SAM58PCLU

This powered combination locking cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7BU hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.

• Powered cradle featuring combination lock for the Samsung Galaxy Tab Active5, Tab Active3 and 2
• RAM^® Mounts Compatible^™ with AMPS hole pattern components
• Made of high-strength composite materials for durability and reliability in the most demanding environments
• Backed by a 3-year warranty

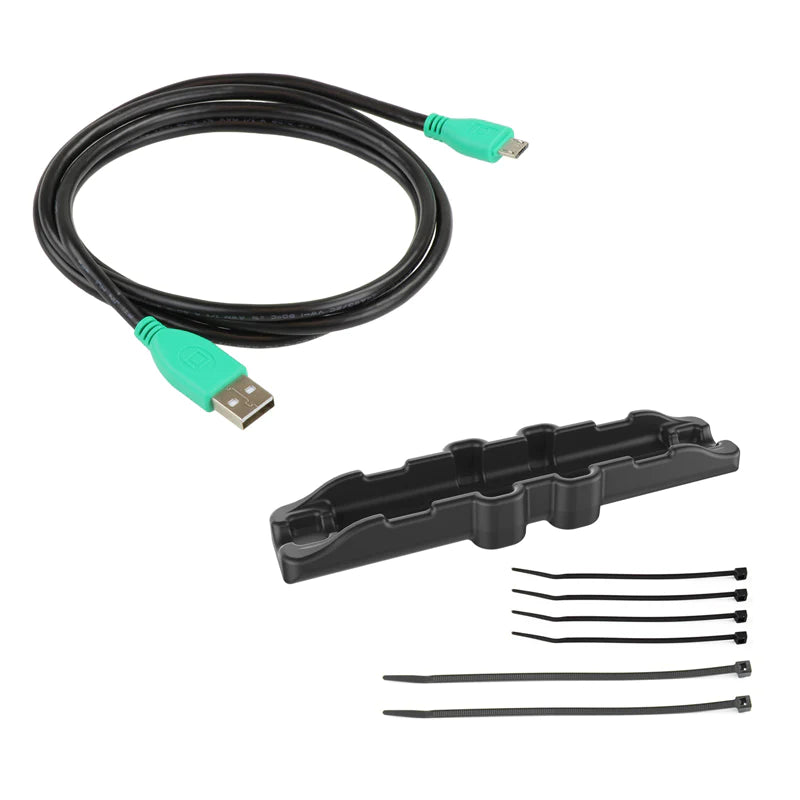

HARDWARE INCLUDED:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties

MATERIALS:
High Strength Composite

PRODUCT DIMENSIONS:
Width: 9.25"
Height: 7.75"
Depth: 3"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

PACKAGING TYPE:
Poly Bag

INPUT VOLTAGE:
4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE:
4.4VDC - 5.4VDC (USB power source dependent)

WARRANTY:
3 year warranty

WEIGHT:
1.14 lb

ADDITIONAL INFORMATION:
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options.

 GDS® Genuine USB 2.0 Straight Cable - 1.2 Meters Long - RAM-GDS-CAB-MUSB2-1

&

GDS® MUSB & Type-C Cable Clamp - RAM-GDS-CAB-CLAMP1U

Samsung

• Tab Active5

• Tab Active3

• Tab Active2
