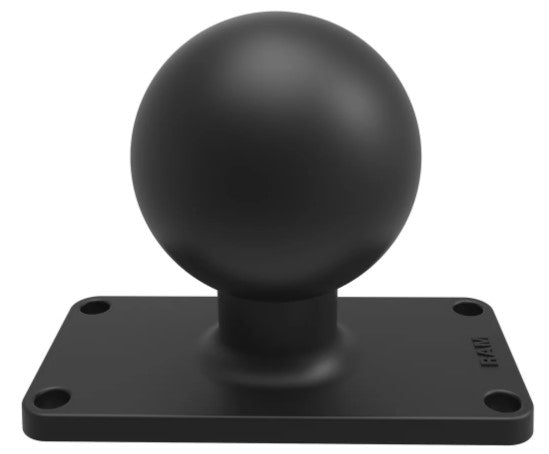

RAM D Size 2.25" Ball on Rectangular Plate with 1.5" x 3.5" 4-Hole Pattern - RAM-D-202U-24

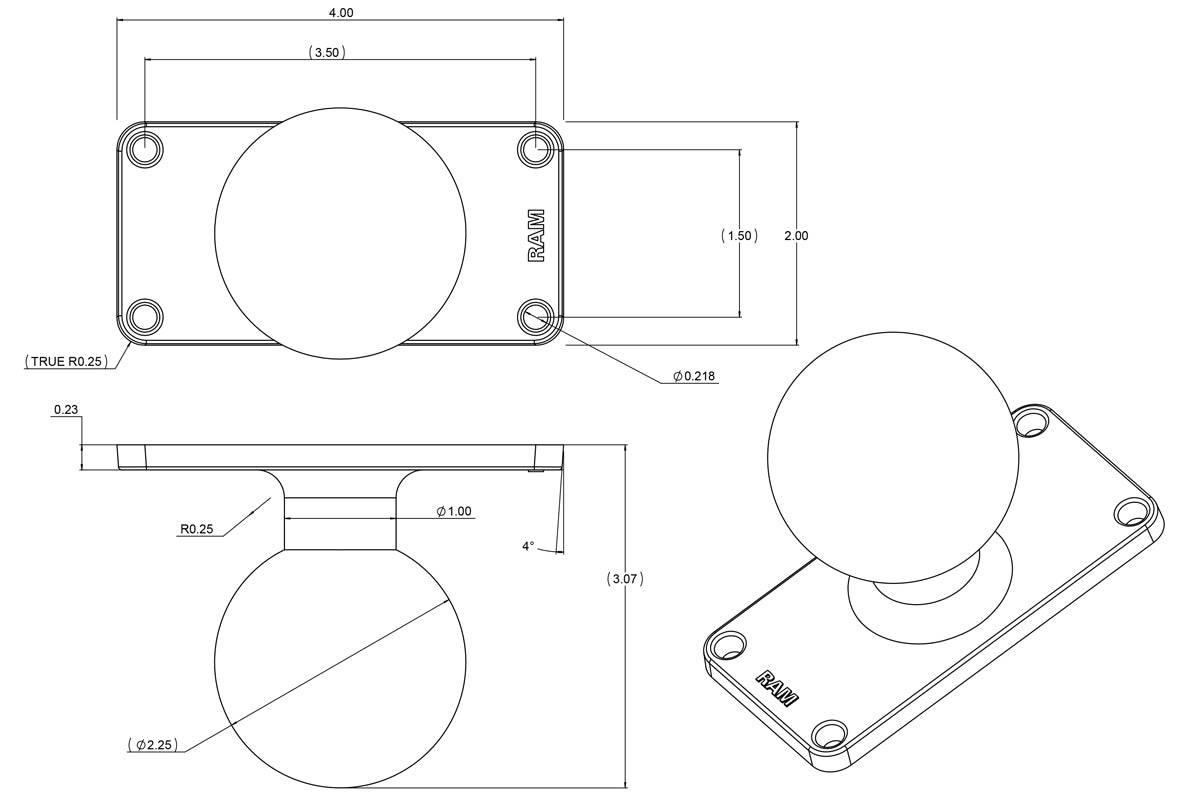

The RAM-D-202U-24 contains a 2.25" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 1.5" x 3.5" center to center. Overall plate dimensions are 2" x 4".

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
2.25" Rubber Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
0.6 lbs.

RAM BASE 2" X 4" WITH 2 1/4" DIAMETER BALL
