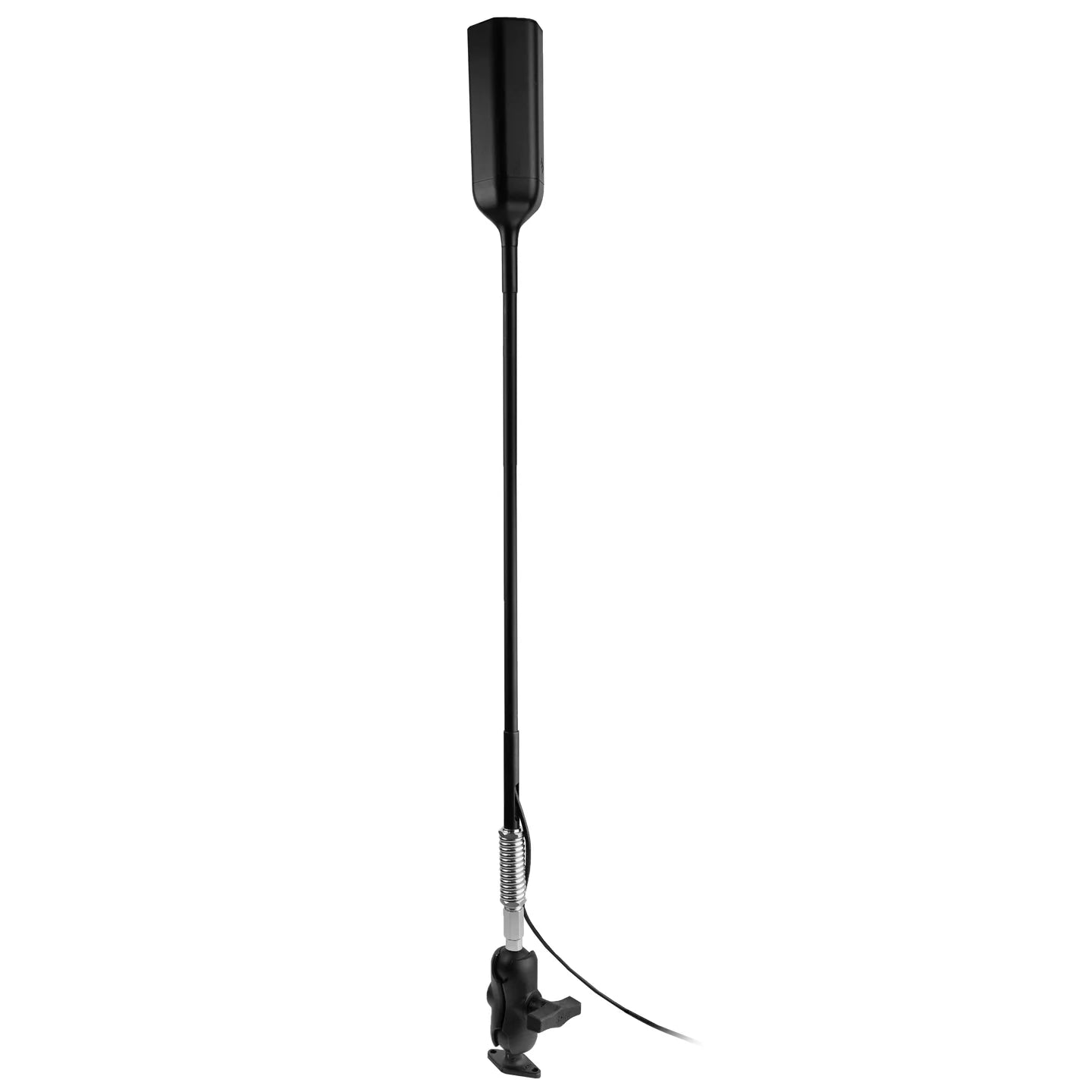

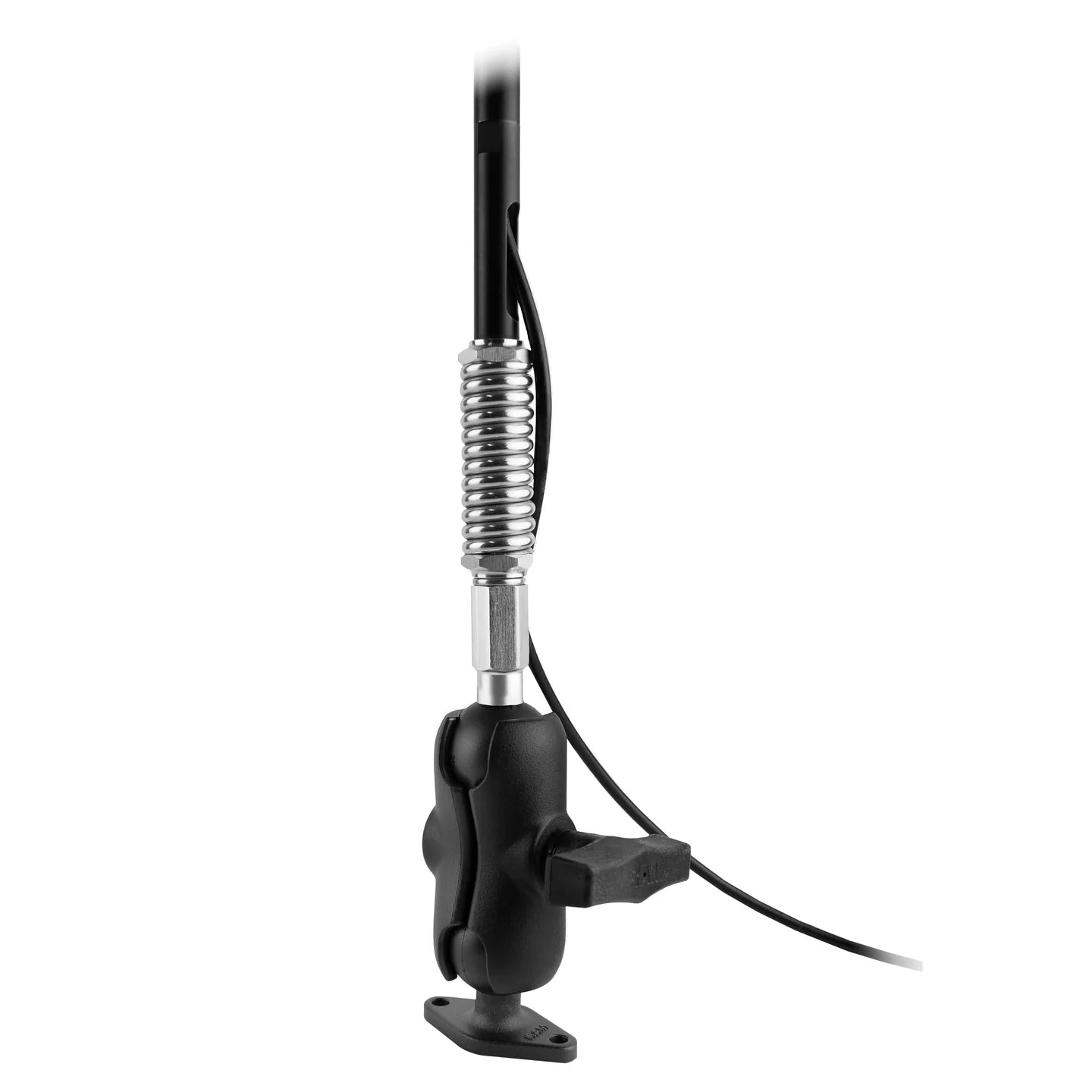

RAM® Drill-Down Heavy Duty Mount for weBoost - RAM-451-B-238U

The RAM^® Drill-Down Heavy Duty Mount for weBoost (RAM-451-B-238U) is a mounting kit that includes a C size ball with a 3/8"-24 x .625" threaded hole compatible with the weBoost antenna, a C size short length socket arm, and a C size RAM^® Diamond Ball base for flat surface drill-down mounting such as a rear bumper, spare tire carrier, or antenna bracket.

The adjustability of the RAM^® Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with the Drive Reach OTR and Drive X antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.

FEATURES

• Kit includes a C size bal with a 3/8"-24 x .625" threaded hole that screws onto the thread adapter of the weBoost antenna, C size short length socket arm and C size RAM^® Diamond Ball base for flat surface drill-down mounting such as a rear bumper, spare tire carrier, or antenna brackets

• The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas

• Made of marine-grade aluminum for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

SOCKET TO SOCKET LENGTH
2.5"

HOLE PATTERN
2-Hole AMPS 1.912"

THREAD PITCH
3/8"-24

PLATE SIZE
2.43" x 1.31"

BALL SIZE
C Size (1.5")

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS
Marine-grade aluminum
High strength composite

WEIGHT
0.81 lb
