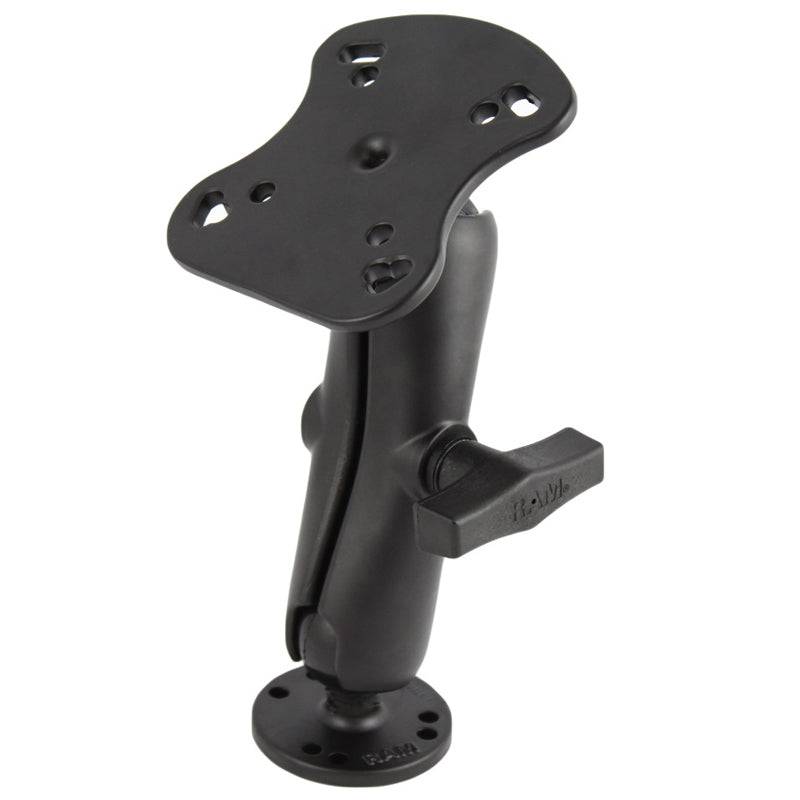

RAM® Fishfinder Mount for Humminbird Devices - RAM-107U

The RAM-107U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and connecting Humminbird/Apelco marine adapter base. The mount is esigned with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

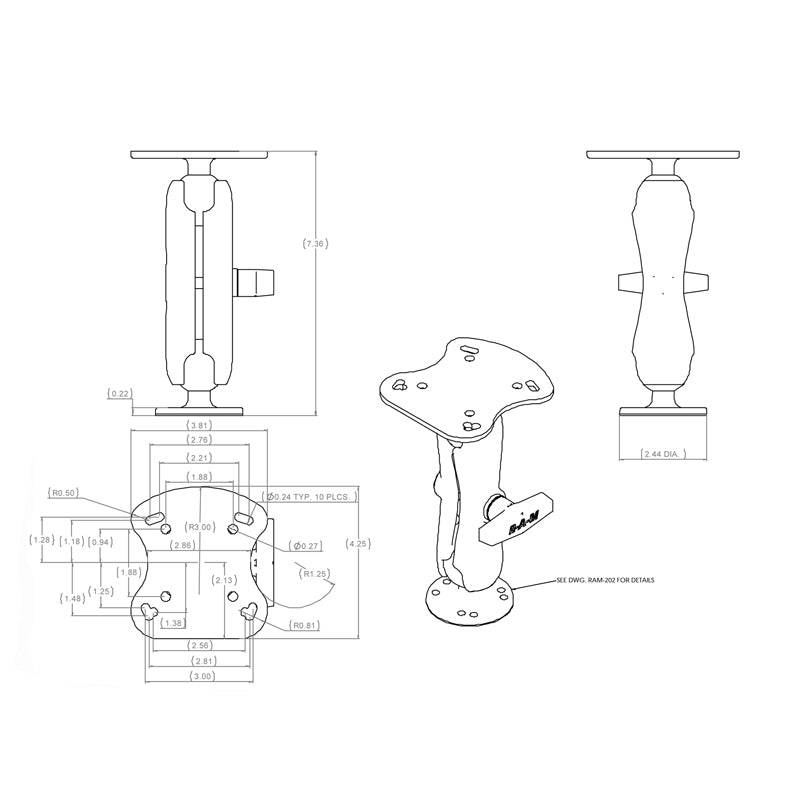

Dimensions:
Overall Height: 7.35"

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
C Size 1.5" Rubber Ball

Note:
The "U" in the part number reflects product packaged in poly bag. The RAM-107U is a "rugged use" mount, designed to hold large marine electronic devices.

Weight Capacity:
Up to 4 lbs

Weight:
1.3 lbs.

RAM 1.5" Ball "RUGGED USE" Mount for the Humminbird 100, 300, 500, 700, and Matrix Series

RAM® Mounts C Size Double Ball Mount Functionality

Additional Mounting Base Options

RAM 6.25" x 2" Universal Electronics Base with 1.5" Ball - RAM-111BU

RAM 4.75" Square Base with VESA (4 X 75mm) (4 X 100mm) Hole Patterns & 1.5" Ball - RAM-246U

RAM Triple Suction Cup Base with 1.5" Ball - RAM-224-3U

RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U

RAM 3.68" Round Base with 1.5" Ball - RAM-240U

RAM 1.5" Ball Base with Strap 1" to 2.1" Diameter - RAM-108BU

RAM 75mm X 75mm VESA 3.625" Plate with 1.5" Ball - RAM-2461U

RAM C Size 1.5" Ball on Rectangular Plate with 1.5" x 2" 4-Hole Pattern - RAM-202U-225

UNPKD RAM SUCT BASE W/ 1 1/2" DIA. BALL - RAM-224U

RAM Rail Base with "Rust-Proof" Stainless Steel U-Bolt & 1.5" Ball - RAM-231U

RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U

RAM Medium Length Double Socket Arm For C Size 1.5" Balls - RAM-201U

RAM® Fishfinder Ball Adapter for Humminbird Devices

• Humminbird 700 Series
• Humminbird 600 Series
• Humminbird 500 Series
• Humminbird 300 Series
• Humminbird 100 Series
• Humminbird Matrix Series (excluding Matrix 97)
• Lowrance Elite-5
• Lowrance Elite-5M
• Lowrance Elite-5X
• Raymarine Apelco Fishfinder with matching hole pattern
