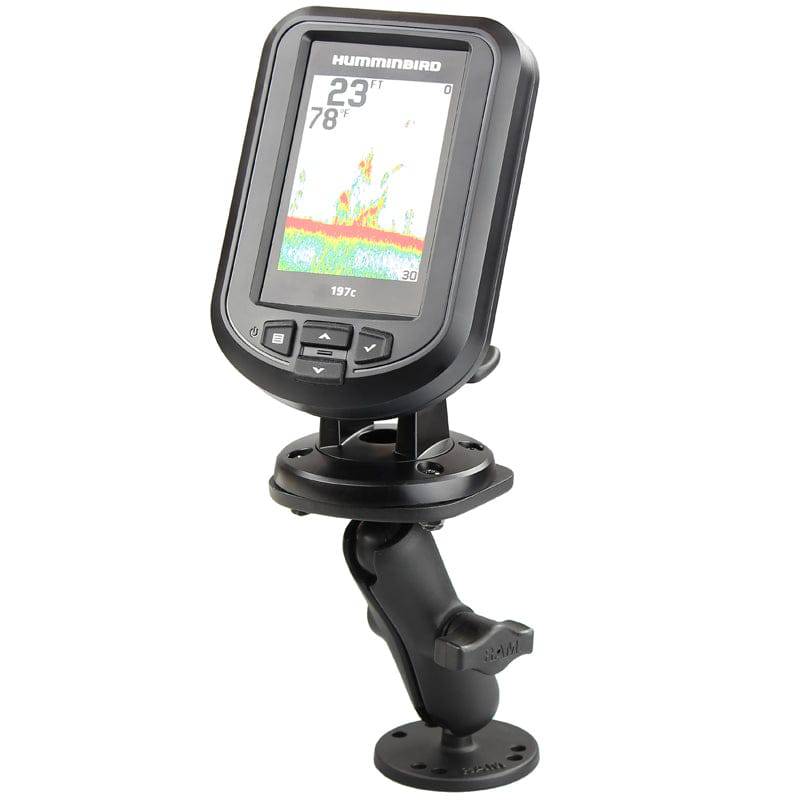

RAM Flat Surface Marine Electronic Mount for the Eagle Cuda, FishEasy, Humminbird Piranha & Lowrance X-4 - RAM-B-107-1U

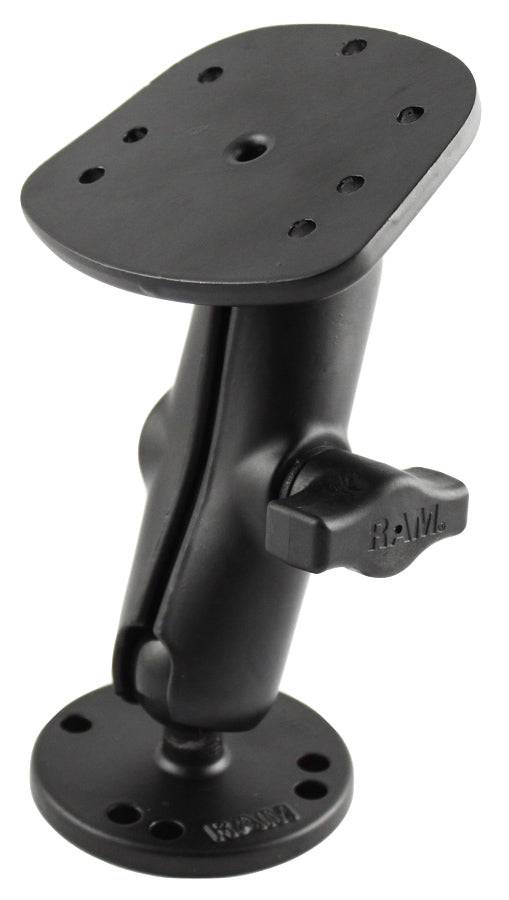

The RAM-B-107-1U, powder coated marine grade aluminum mount, consists of a double socket arm, one 2.5" diameter round base and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at the cradle base and bottom base. With a twist of the arm knob, you can move the marine mount to your optimum viewing position.

Overall Height:
5"

Weight Capacity:
To 2.25kg weight (approx 5 lbs)

Ball Size:
1" Rubber "B" Ball Size

Material:
Powder Coated Marine Grade Aluminum

Note:
The "U" in the part number reflects product packaged in poly bag

Weight:
0.62 lbs.

RAM Marine Electronic Mount for the Eagle Cuda, FishEasy, Humminbird Piranha & Lowrance X-4

RAM® Mounts Interchangeable Components

RAM B Size 1" Track Ball™ Quick Release Track Base (Track Dimensional Range: .250" - .562") - RAP-B-383U

RAM Flex Adhesive Base with 1" Ball - RAP-B-378U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM B Size 1" Balland Rectangular Plate with 1.5" x 2" 4-Hole Pattern - RAM-B-202U-225

RAM Press-N-Lock™ Base with 12" Long Tube and 1" Diameter Ball - RAP-B-385-12U

RAM Press-N-Lock™ Base with 18" Long Tube and 1" Diameter Ball - RAP-B-385-18U

• Eagle Cuda 240i
• Eagle Cuda 240
• Eagle Cude 168
• Eagle Cuda 128
• Eagle FishEasy 320C
• Eagle FishEasy 240
• Humminbird Piranha MAX 20
• Humminbird Piranha MAX 15
• Humminbird Piranha MAX 10
• Lowrance X-4
• Lowrance X-4 Pro
