RAM-HOL-ZE24PU
Out of Stock
( Chat Live to get an ETA )

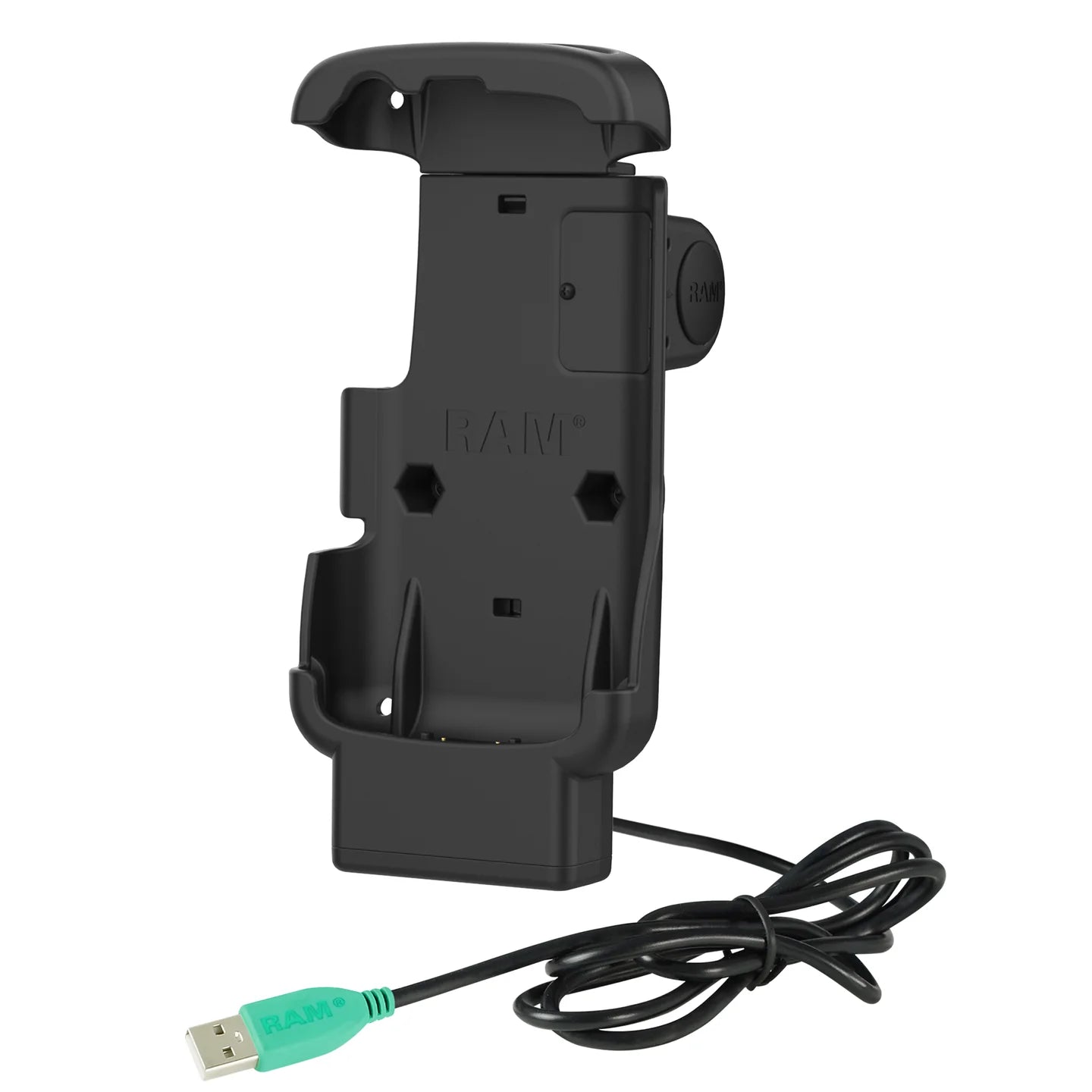

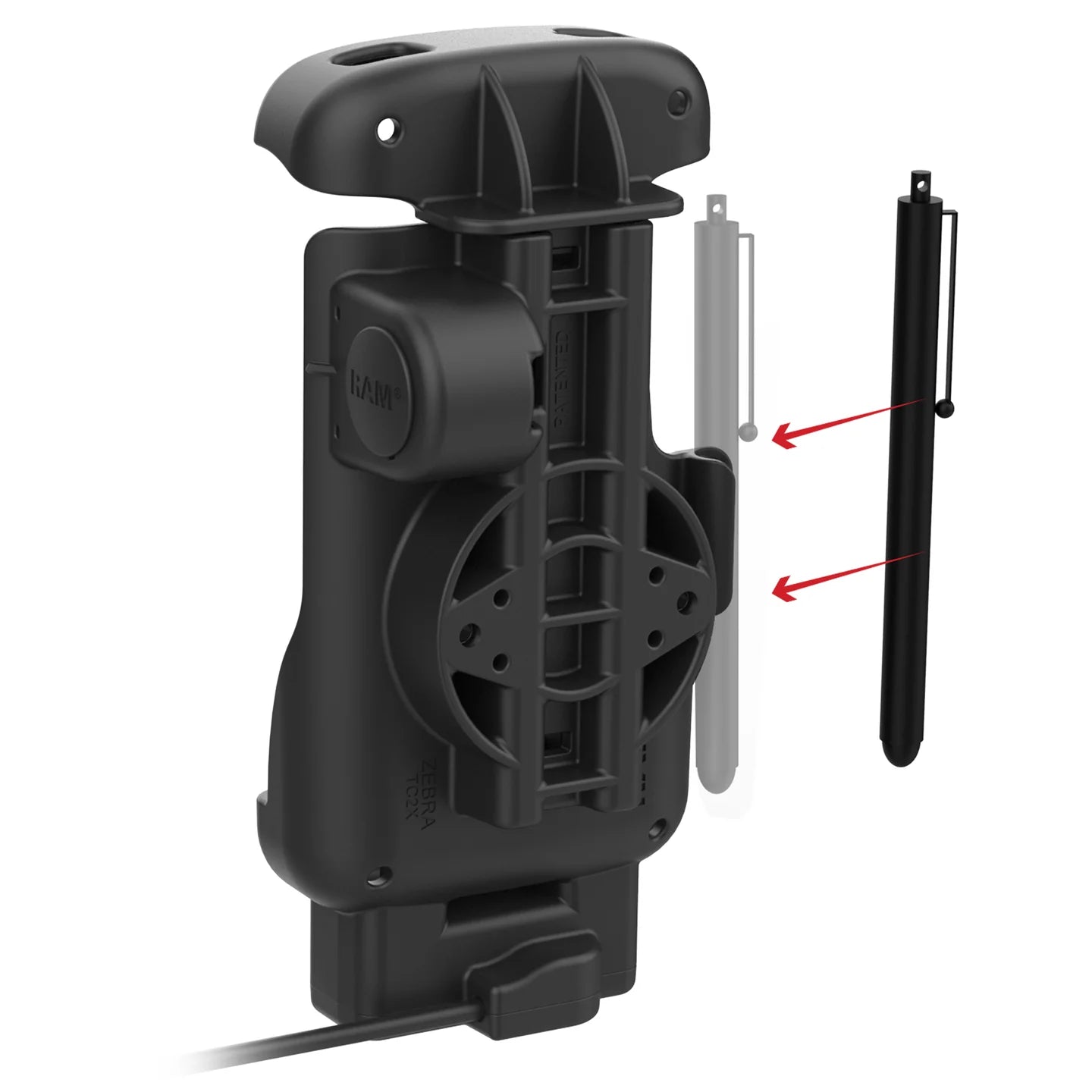

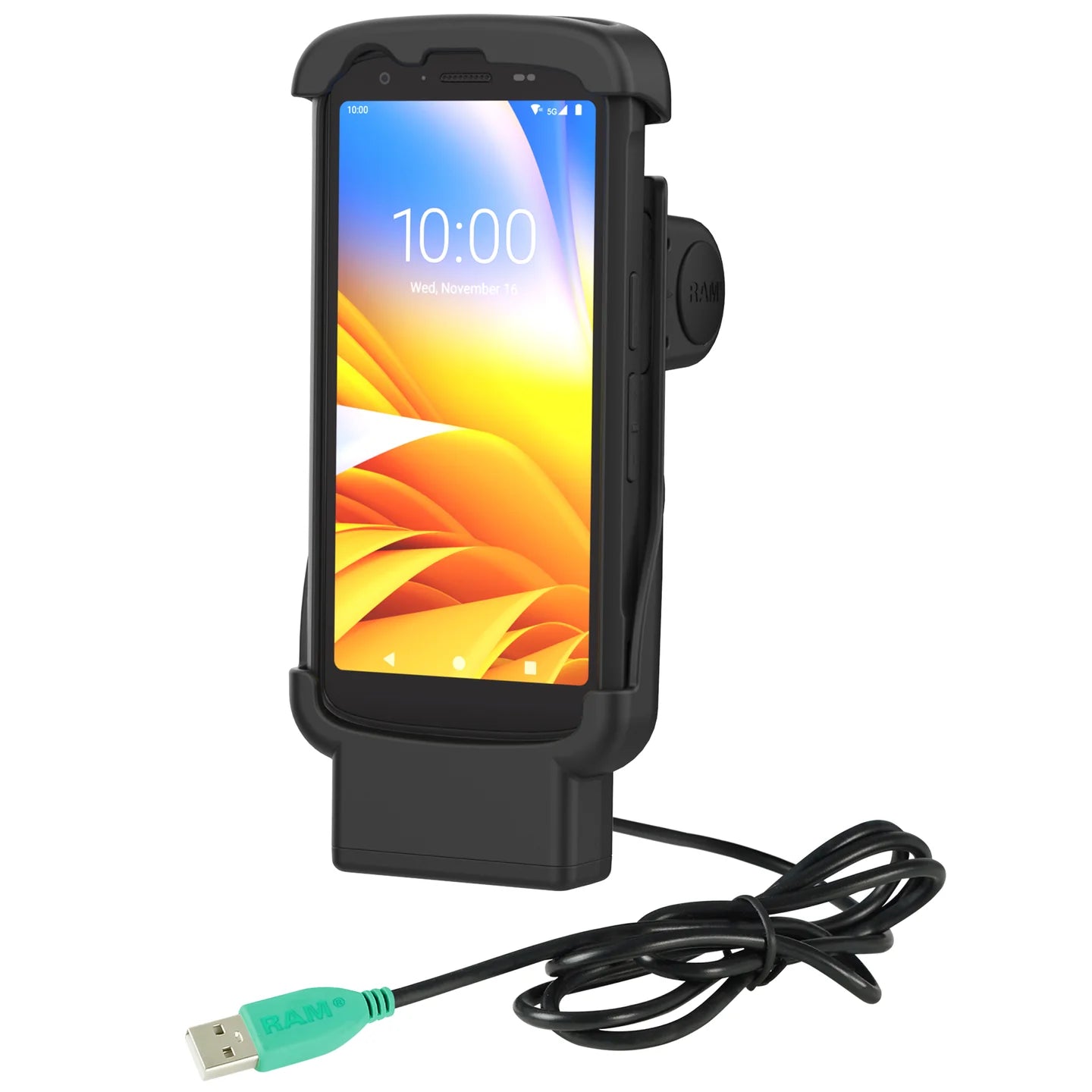

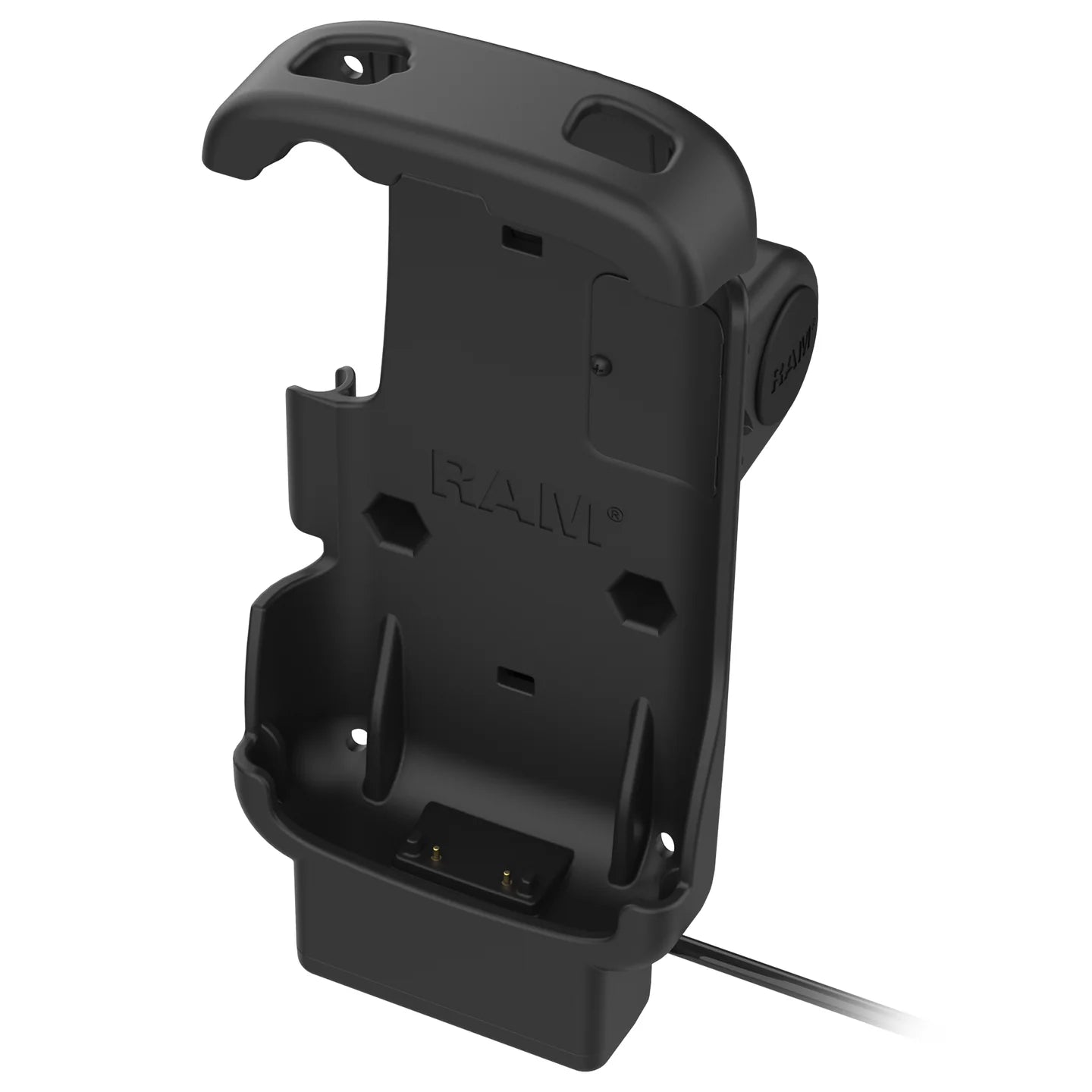

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24PU) allows you to secure the Zebra TC22 and the TC27 handheld computer with the Rugged Boot installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included). FEATURES Spring-loaded form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer with Rugged Boot; provides power through 1.25-meter long USB Type-A connector Utilizes pogo pin docking contacts to provide charging capabilities to the device Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability Backed by a lifetime warranty HARDWARE INCLUDED PRODUCT DIMENSIONS HOLE PATTERN MATERIALS INPUT CONNECTOR INPUT CABLE LENGTH WARRANTY WEIGHT Zebra TC22 & TC27 with Rugged Boot RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-238U RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-B-238U RAM® Double Socket Arm With Diamond Ball Plate - RAM-103-D-238U RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1 RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U Documents
Description
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"
2-Hole AMPS: 1.912"
High strength composite
USB Type A
1.25 Meters
3 year warranty
0.5 lb Compatibility
Mounting Options
Accessories Additional Information
