GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7" - RAM-GDS-101LB2-SAM80CP-V7B1U

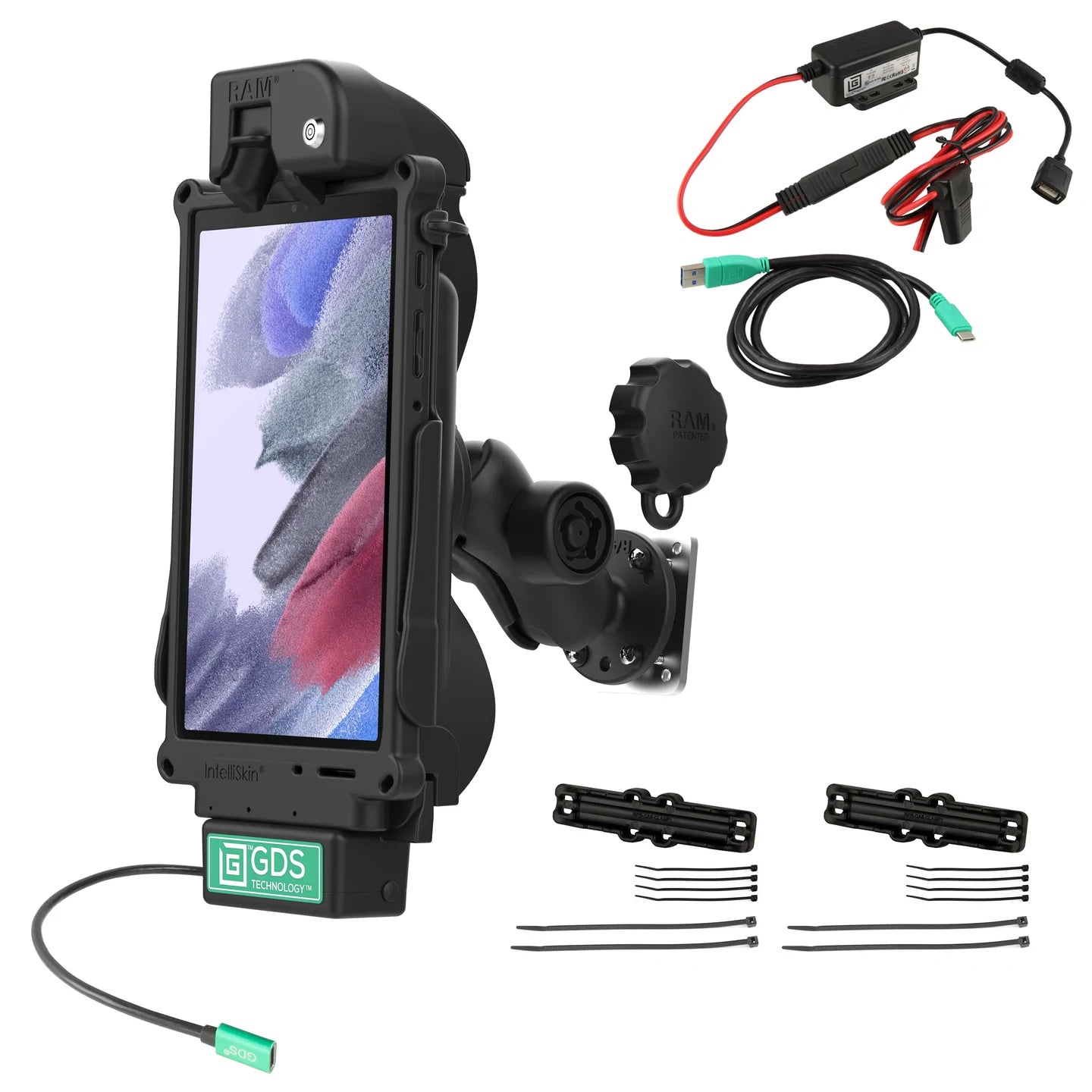

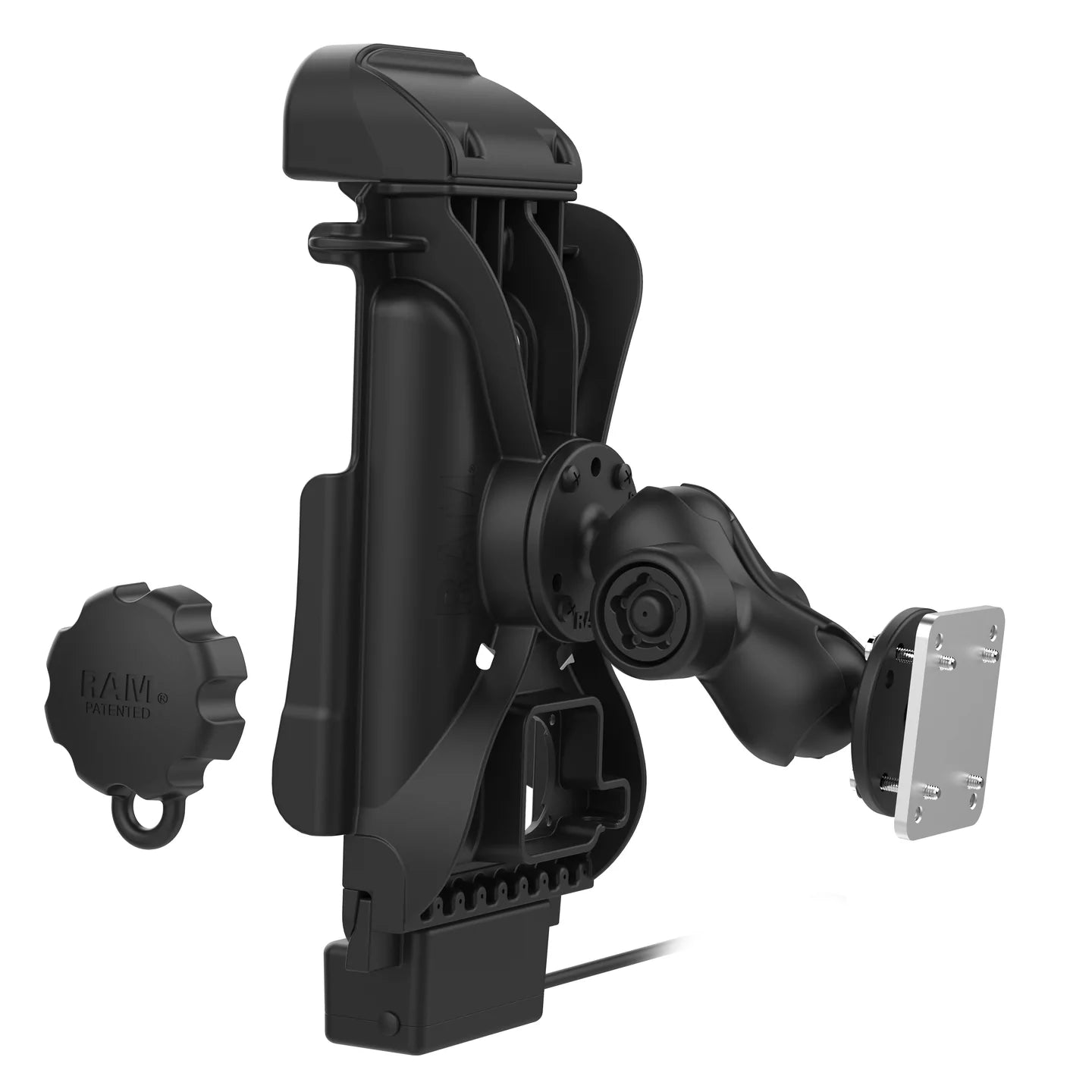

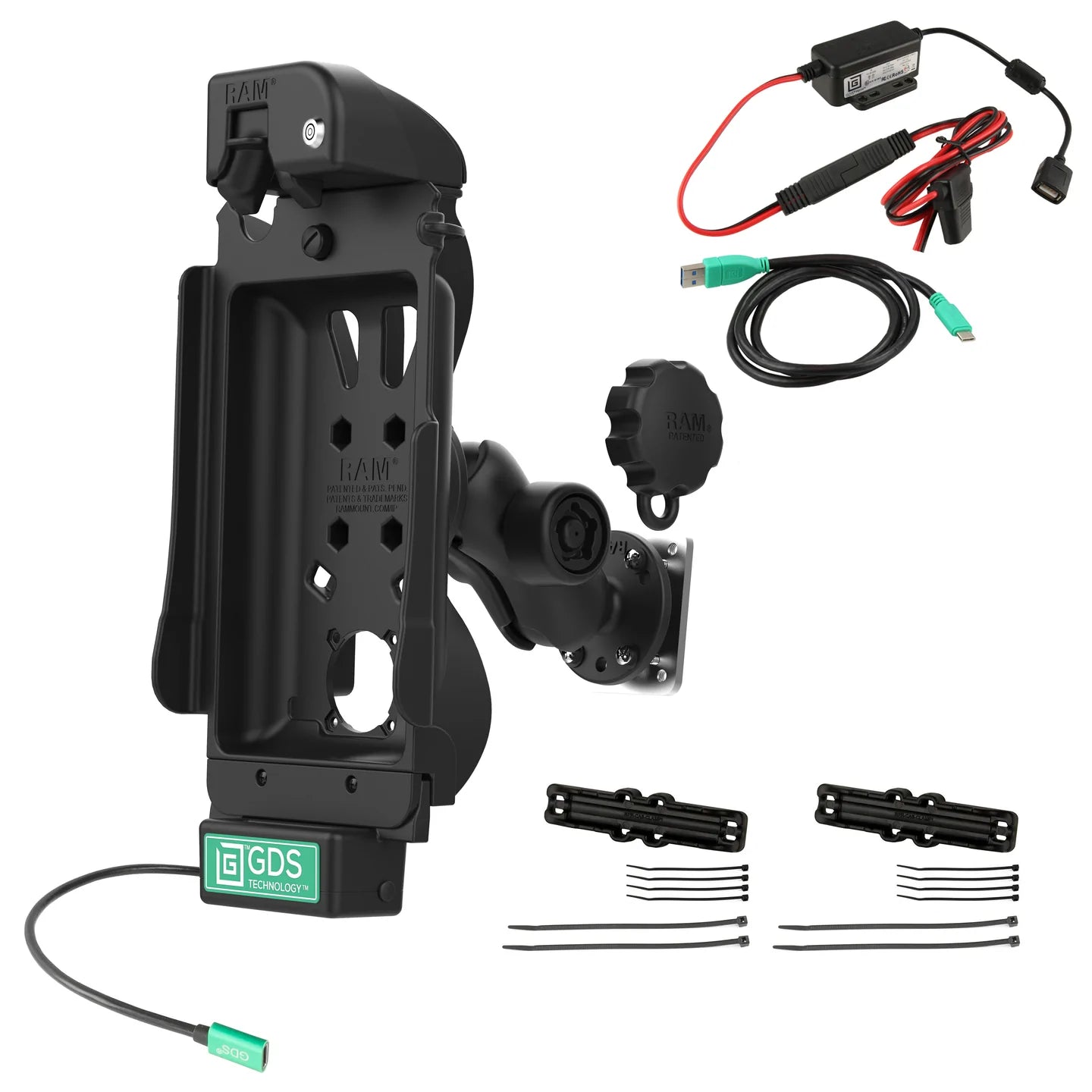

This security bundle is the ideal locking solution for transportation and large fleet vehicles paired with your new Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225). This bundle includes key locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225), hardwire charger with USB Type A connector, C Size double ball mount with short arm, backing plate adapter, RAM® Pin-Lock™ security knob for socket arm and x2 cable clamps. This bundle is also ELD compliant providing a turnkey solution for your fleet.

• Security bundle includes key locking GDS^® Tough-Dock^™, IntelliSkin^® Next Gen for Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225), hardwire charger with Power Delivery, low-profile double ball mount with C size (1.5") ball, backing plate adapter, RAM^® Pin-Lock^™ security knob for socket arm and two cable clamps
• Dock features GDS^® Technology^™ for charging capabilities
• RAM^® Mounts Compatible^™ and compatible with the GDS^® Hand-Stand^™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

HARDWARE INCLUDED:
Assembly Hardware
(2) Dock Keys
(1) Knob Key
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) USB Type-C to USB Type-A Cable
(1) Vehicle Hardwire Charger

SOCKET TO SOCKET LENGTH:
2.5"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE:
C Size (1.5")

MATERIALS:
Steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
5-9VDC*

INPUT CONNECTOR:
Female USB Type-C

INPUT CABLE LENGTH:
1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH:
150mm

OPERATING TEMPERATURE:
-20°C to +70°C

STORAGE TEMPERATURE:
-40°C to +85°C

COMPLIANCE:
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

CERTIFICATIONS:
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support

WARRANTY:
3 year warranty

WEIGHT:
2.5 lb

ADDITIONAL INFORMATION:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

• Samsung:

  Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
