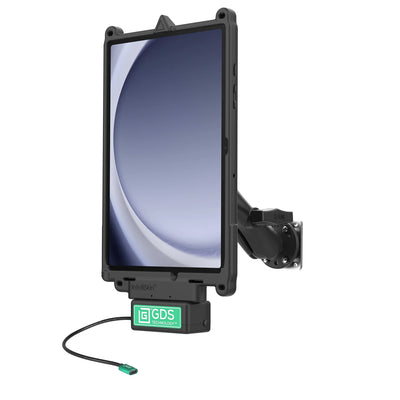

GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9+ - RAM-GDS-U1-SAM88-KIT1

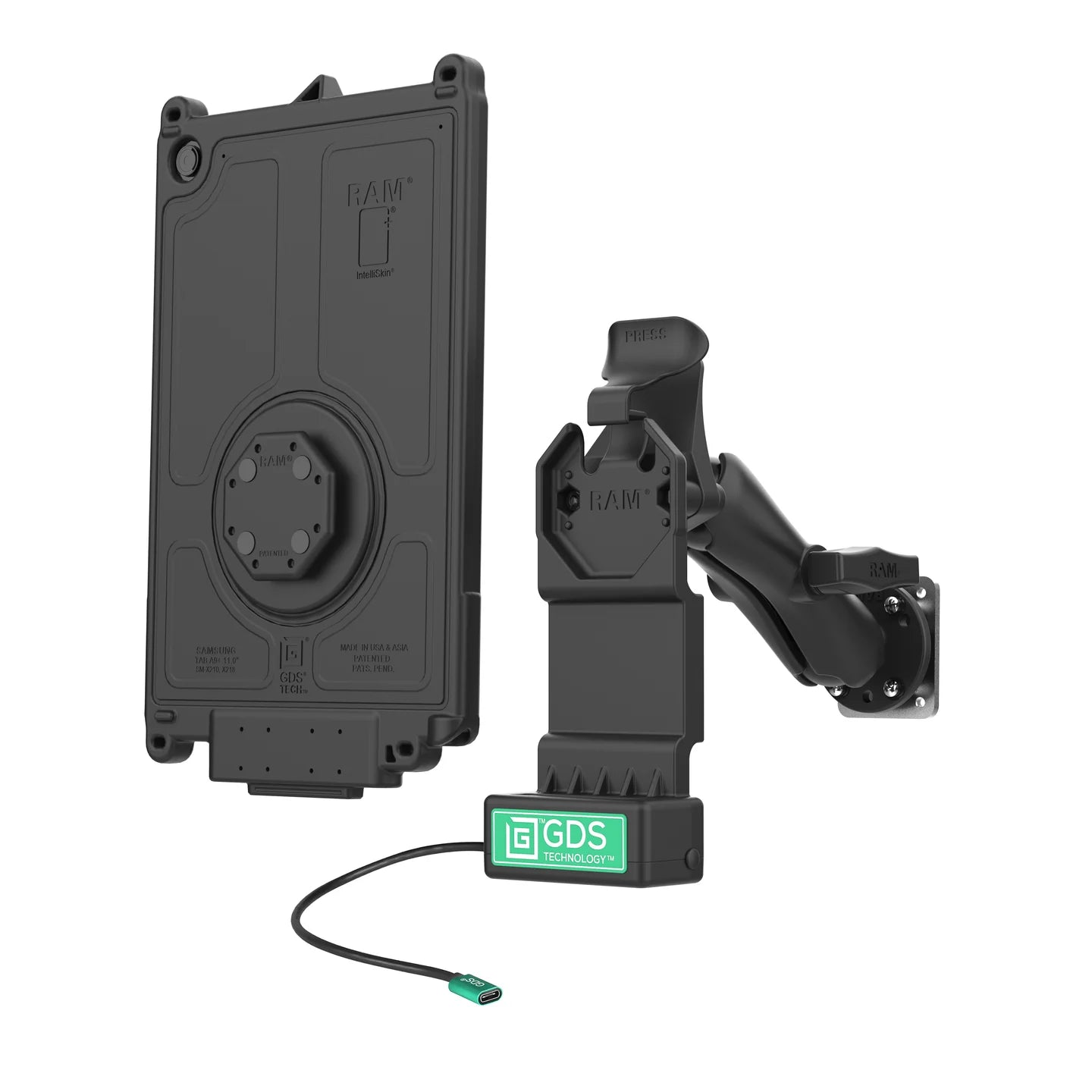

The GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT1) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter with hand strap, IntelliSkin® for the Tab A9+, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked.

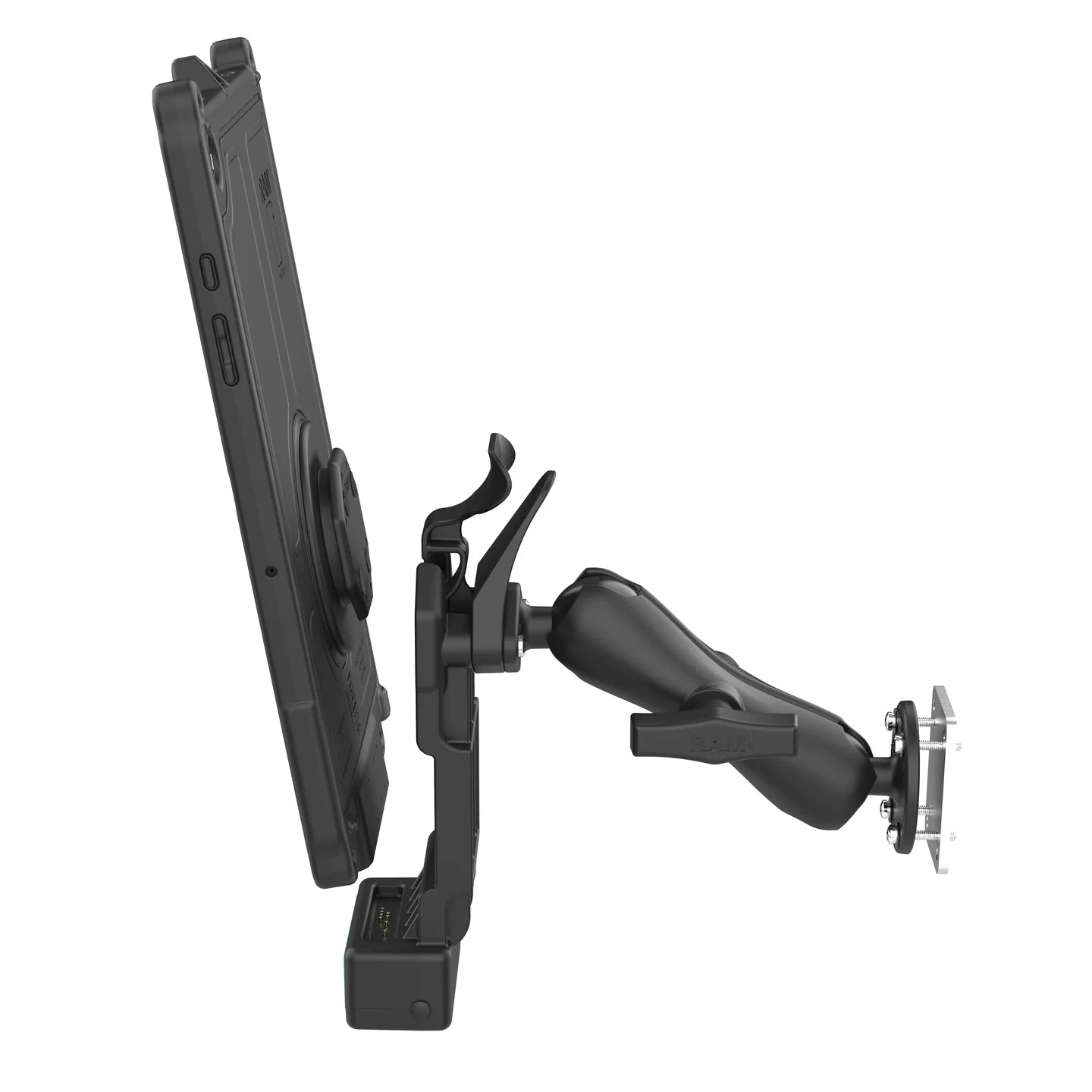

It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet, all with one hand. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™

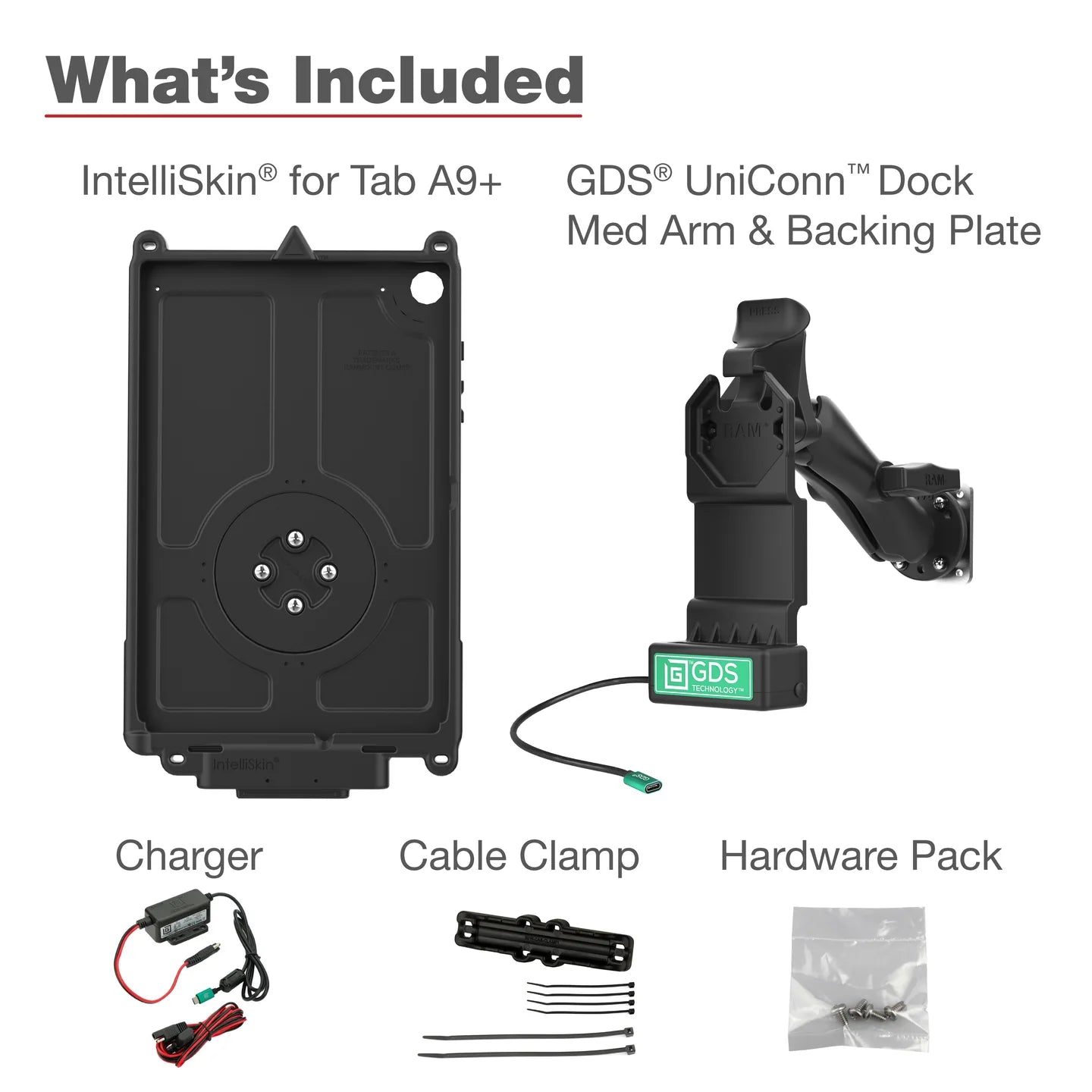

• Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter with hand strap, IntelliSkin® Next Gen for Samsung Tab A9+, C size double ball mount with short arm, backing plate adapter, and cable clamp

• Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power

• Uni-Conn™ dock features an easy, single-handed insertion and removal

• Backed by a 3-year warranty

HARDWARE INCLUDED
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger

SOCKET TO SOCKET LENGTH
4.66"

BALL SIZE
C Size (1.5")

MATERIALS
Steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Peripheral: 5V @ 900mA max

POWER OUTPUT
15W

WARRANTY
3 year warranty

Samsung Galaxy Tab 9A+

IntelliSkin^® Next Gen for Samsung Tab A9+ - RAM-GDS-SKIN-SAM88-NG

GDS^® Uni-Conn^™ Adapter for IntelliSkin^{® -}RAM-GDS-U1U

GDS^® Uni-Conn^™ Powered Dock - RAM-GDS-DOCK-U1CPU

RAM^® Diamond Ball Base - C Size - RAM-238U

RAM^® Double Socket Arm with RAM^® Pin-Lock^™ Security Knob - C Size Medium - RAM-201-SU

RAM^® Drill-Down Dashboard Ball Base with Backing Plate - C Size - RAM-202-225-2U

GDS^® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

Assembly Instructions for GDS^® Uni-Conn^™ Dock
