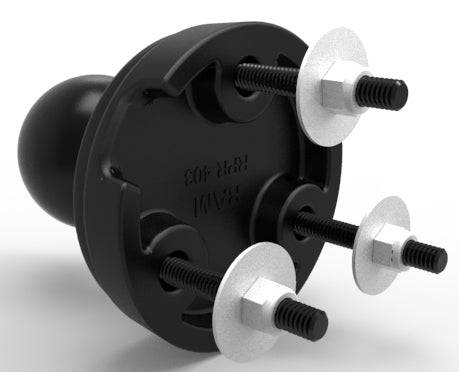

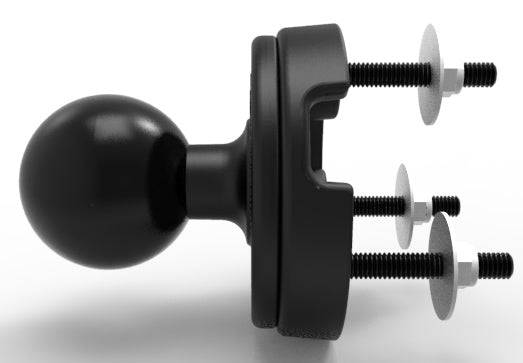

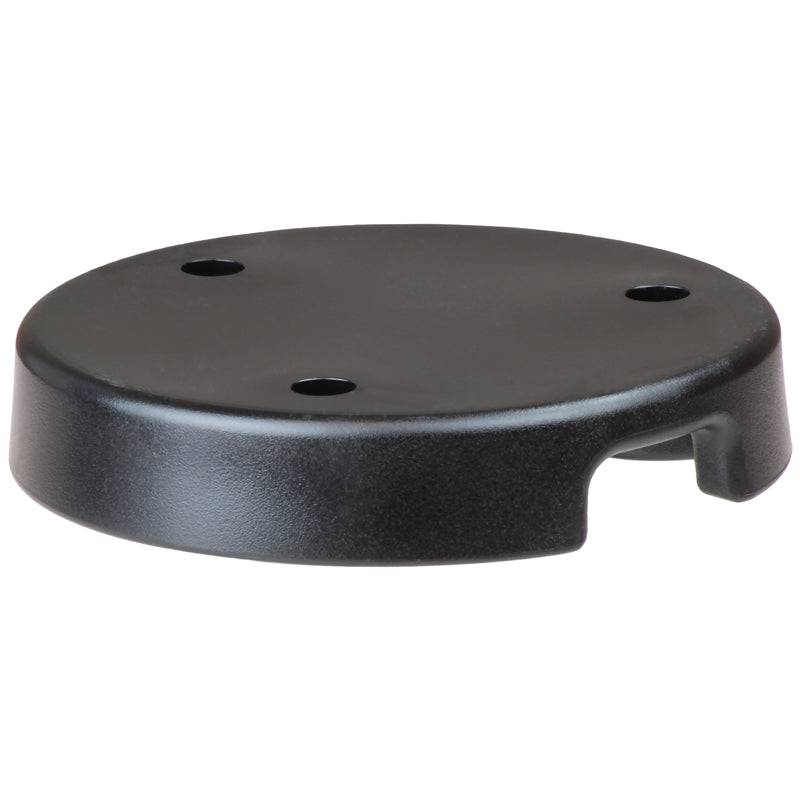

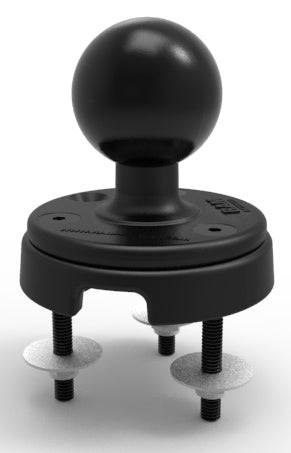

RAM Large Cable Manager for 4" Diameter Round Base Plates - RAP-402U

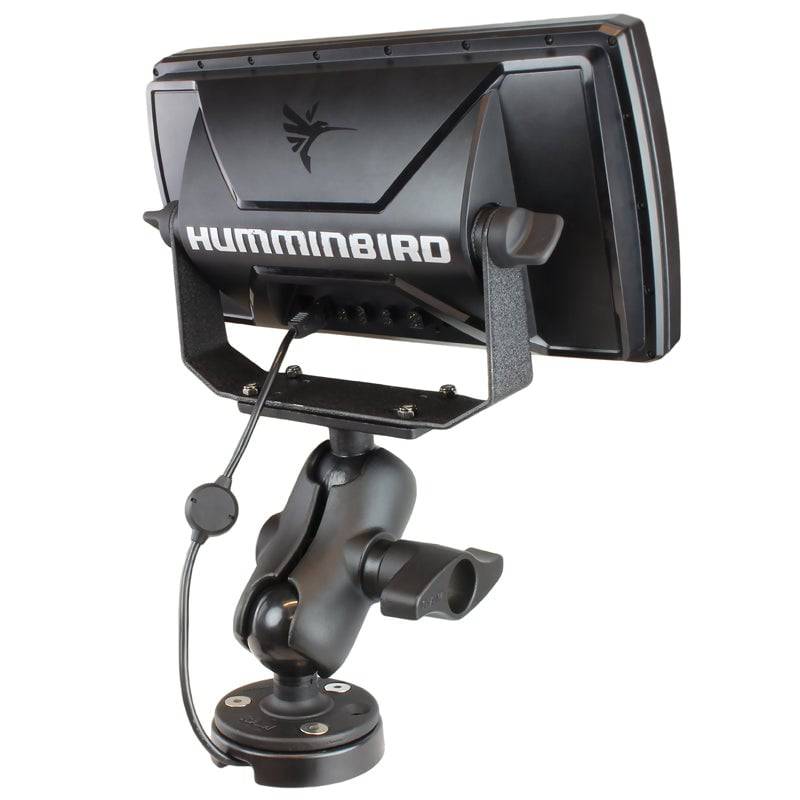

Great for your GPS or if you need to bring cables out from under your mount. Bring the cables up through the bottom while still being mounted securely to the surface.

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will fit any of the 4" diameter round plates with a 3 hole pattern. (Will not work with the AMPs hole pattern plates)

Compatible RAM Mounts:
Compatible with all 2.25" diameter ball bases that contain a three hole, 120 degree hole pattern.

Dimensions:
Cable slot height: 0.45”
Cable slot width: 0.95”
Max mounting surface thickness: 1.47”

Material:
High Strength Composite and Glass Filled Nylon

IMPORTANT:
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.

Note:
The "U" in the part number reflects product packaged in poly bag. RAM ball base not included with purchase.

Weight:
0.5 lbs.

RAM Large Cable Manager Assembly Instructions

RAM Large Cable Manager for 2.25" Diameter Ball Bases

RAM® Cable Manager
