RAM® No-Drill™ Laptop Mount with Flat Arms for '12-23 Ram 2500-5500 - RAM-VB-178A-SW1-FL

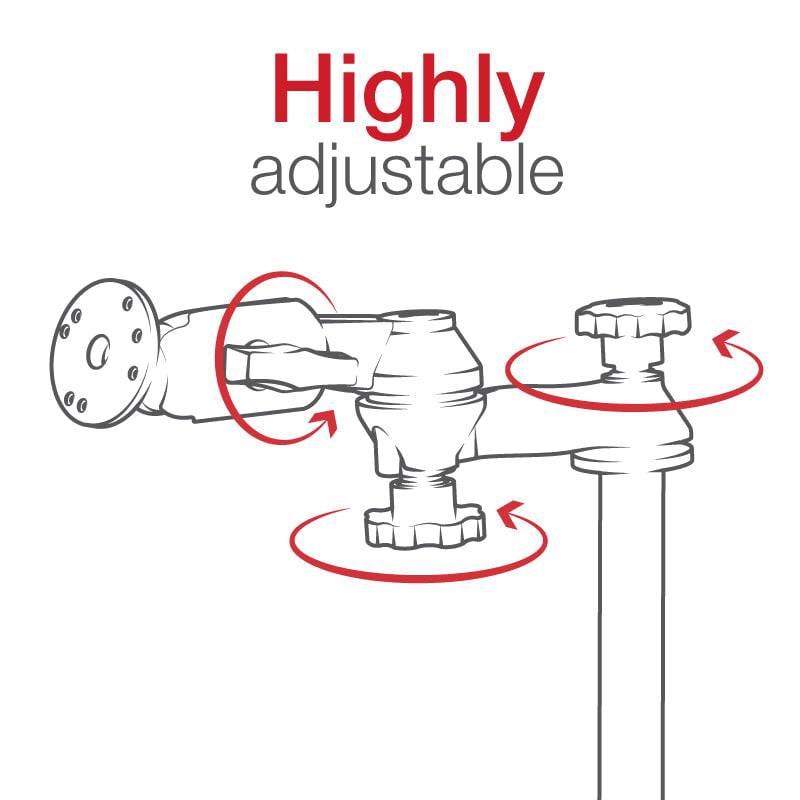

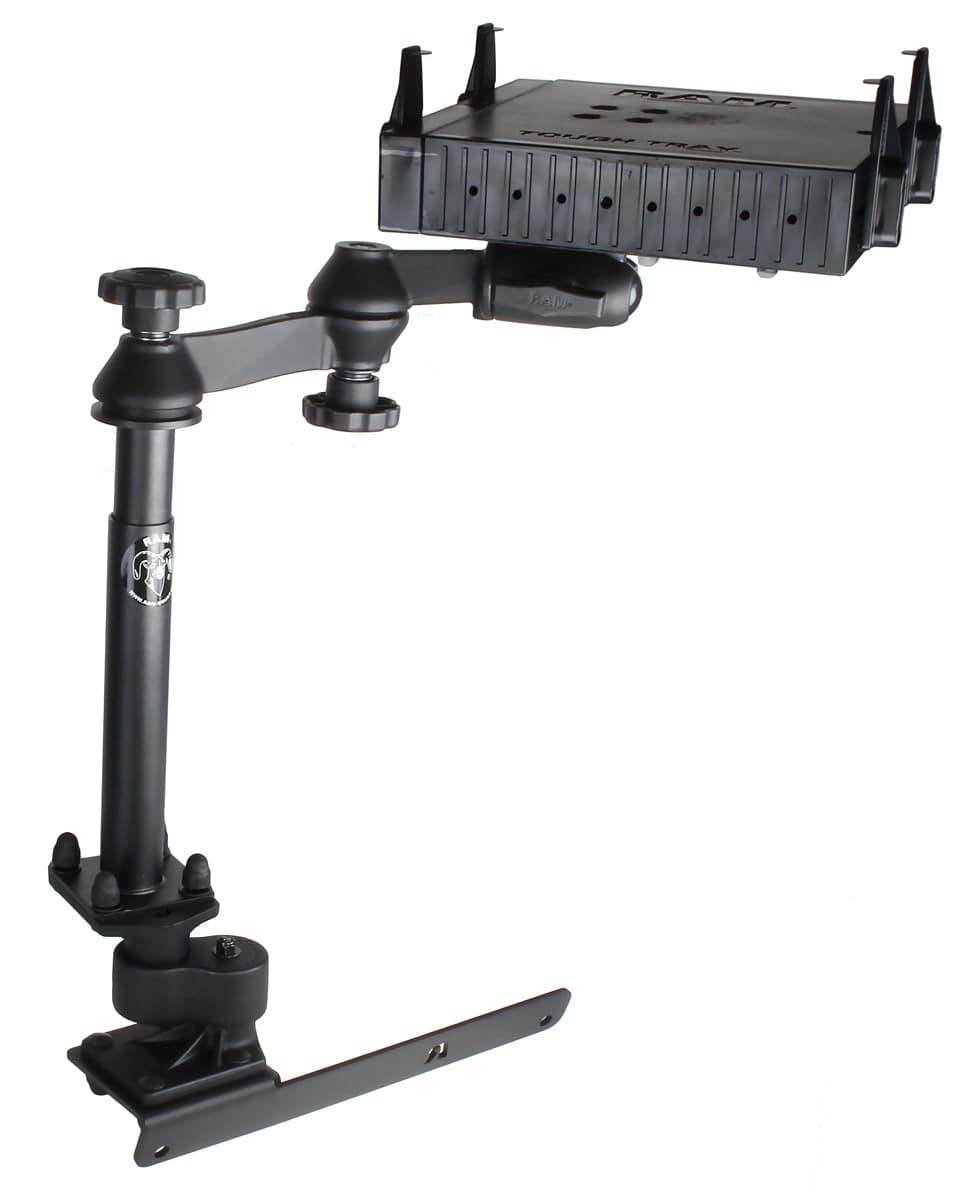

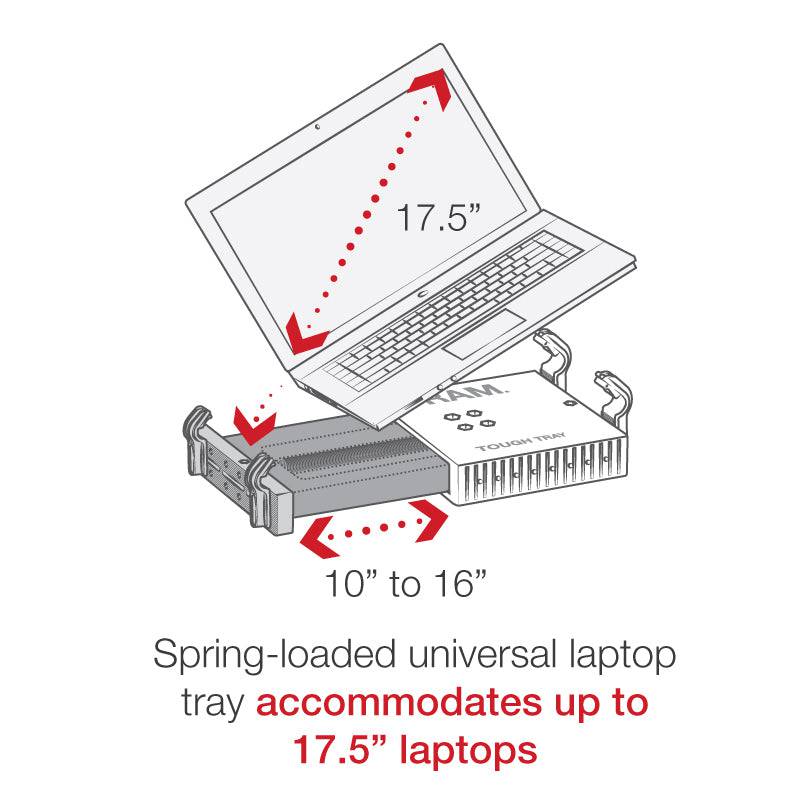

This No-Drill^™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four FLAT adjustable retaining arms; these allow for your laptop to close completely while in the RAM Tough-Tray^™. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

HARDWARE INCLUDED

Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

TRAY DIMENSIONS

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN

Seat Bolt Distance: 13.25" center to center

BALL/SOCKET SIZE

C Size (1.5")

MATERIALS

Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE

Box

WEIGHT

15.0 lbs.
