RAM® Power & Data Mount for Samsung Tab Active Pro with Backing Plate - RAM-101-B-SAM52PD-V7BU

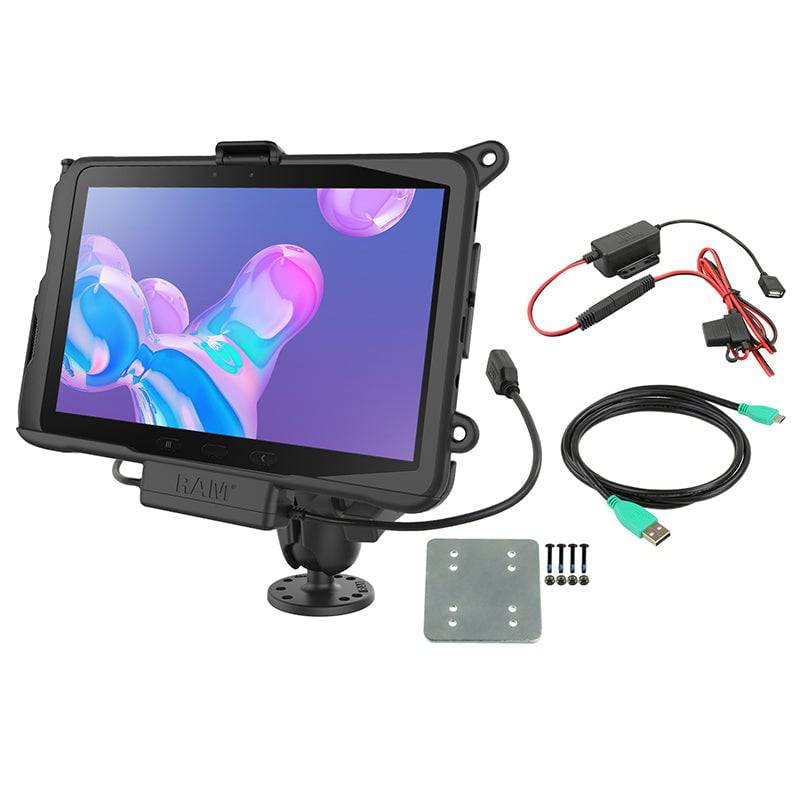

This Samsung Tab Active Pro kit includes everything you need to keep the device powered and secure. It includes the RAM^® EZ-Roll’r^™ powered/data cradle, C size double ball mount with two round plates and short double socket arm, backing plate adapter, GDS^® modular hardwire charger, GDS^® USB 2.0 cable, and cable clamp. The RAM^® EZ-Roll’r^™ powered/data cradle for the Samsung Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM^® Skin^™ for the Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM^® Skin^™ while utilizing the GDS^® HandStand^™ or GDS^® shoulder strap. While keeping the Tab Active Pro secure, the RAM^® EZ-Roll’r^™ powered cradle also leaves the device’s speakers, mics, headphone jack, and NFC reader exposed and usable. For mounting, pair the cradle with RAM^® round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner.

HARDWARE INCLUDED

(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

4 lbs

MATERIALS

Steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

INPUT RANGE

8V - 40V DC

OUTPUT VOLTAGE

5VDC

OUTPUT CURRENT

2.5A max

OUTPUT CONNECTOR TYPE

Female USB Type A

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meters

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Meets SAE J-1113

CERTIFICATIONS

FCC, Industry Canada, CE, WEEE, RCM, e-Mark and RoHS Compliant

WARRANTY STATUS

3 year warranty

RAM® EZ-Roll'r™ Power & Data Cradle for Samsung Galaxy Tab Active Pro - RAM-HOL-SAM52PDU

RAM C Size 1.5" Ball Mount with Short Double Socket Arm & 2/2.5" Round Plate AMPs hole pattern - RAM-101U-B

3 X 3 Backer Plate W/ AMPS And 1.5" X 2" Hole Patterns With Hardware - RAM-202-225BU

GDS® Modular Hardwire Charger with Female USB Type A Connector - RAM-GDS-CHARGE-V7BU

• Samsung

• Galaxy Tab Active Pro
