RAM® Power + Dual USB Dock for Zebra ET6x - Heated Pins - RAM-HOL-ZE25PD2HU

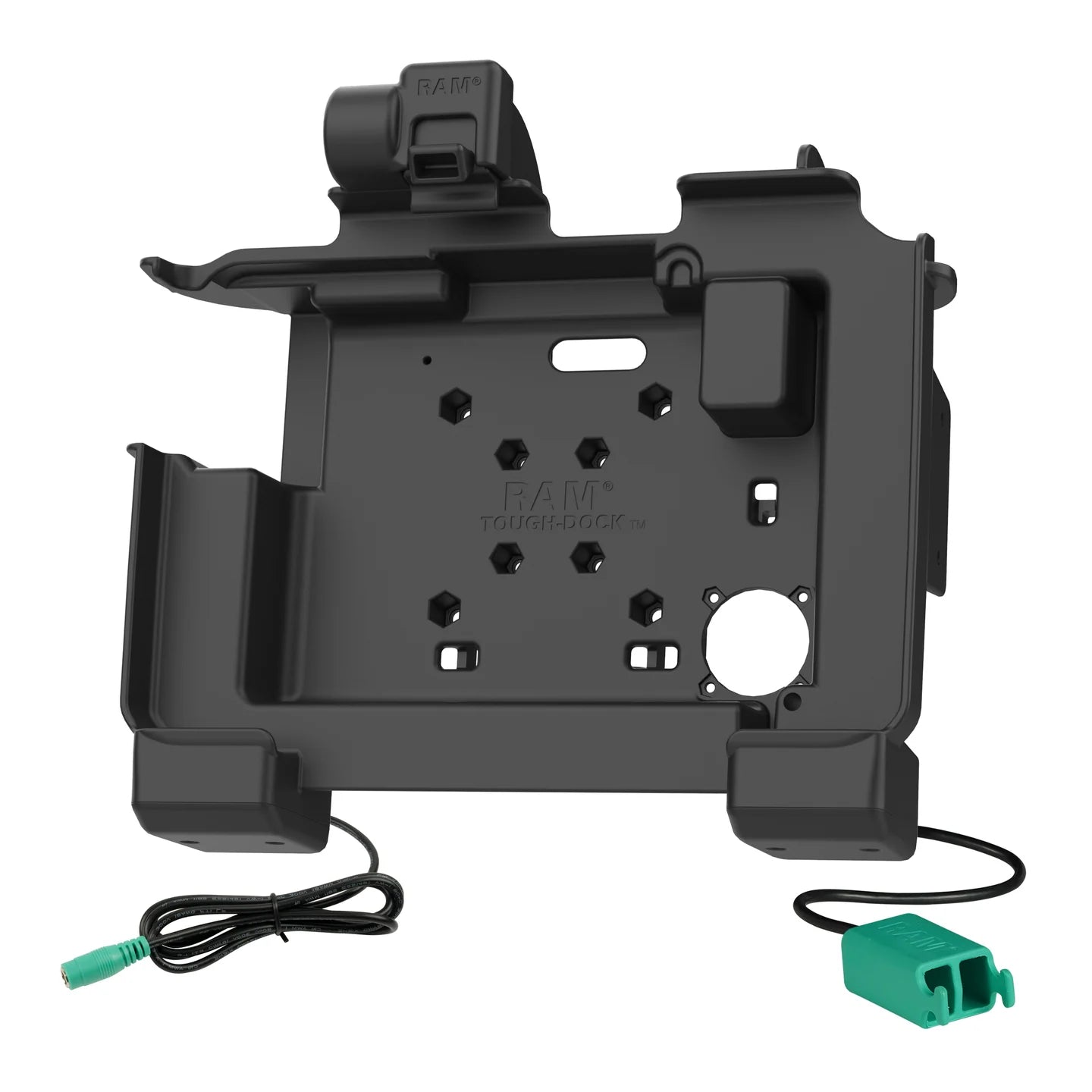

This power + Dual USB Type-A RAM^® Dock (RAM-HOL-ZE25PD2HU) features a form-fitting design specifically for the Zebra ET60 & ET65 tablets. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A dual USB Type-A pigtail connector is provided for adding up to two peripherals.

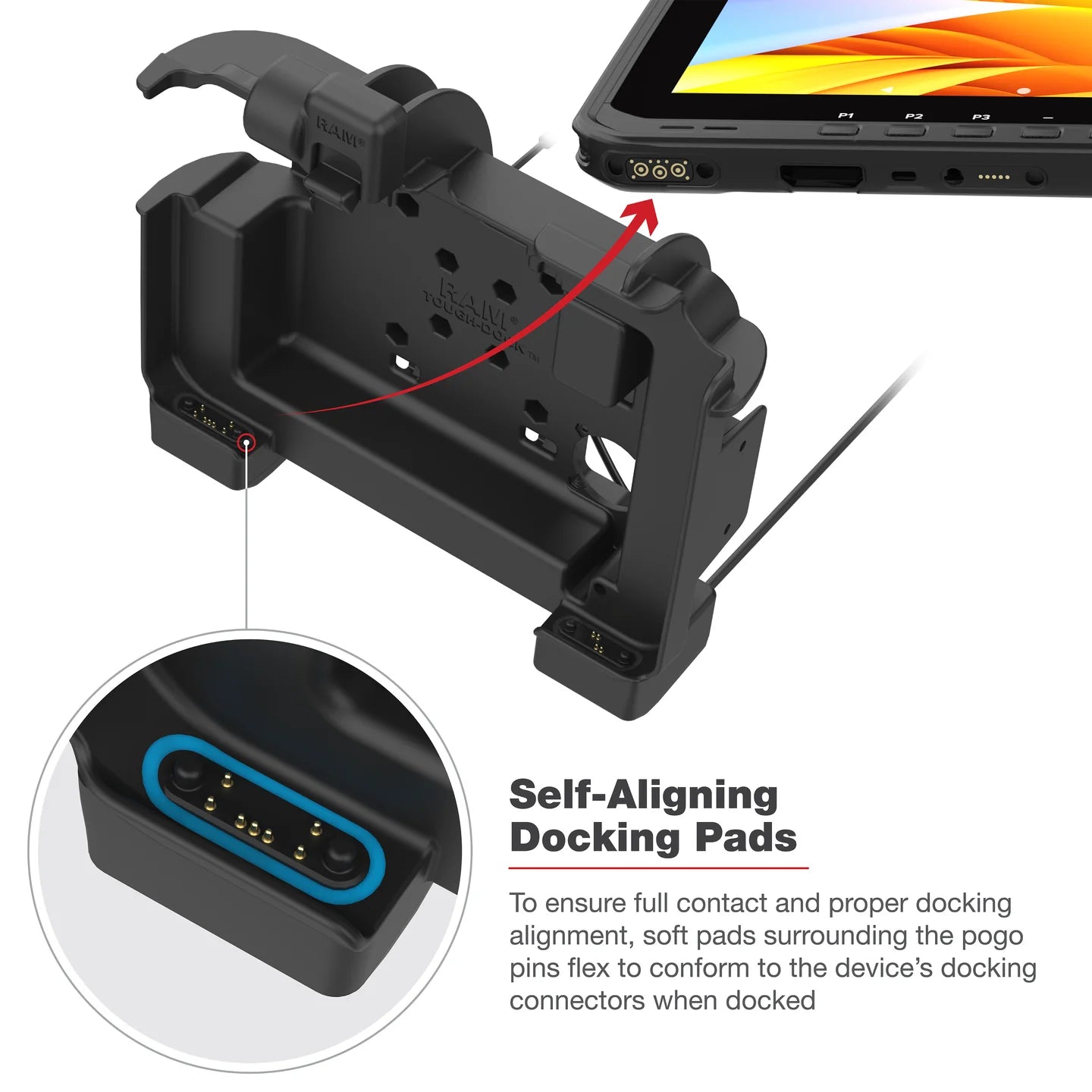

Special for this dock is a new self-aligning docking pad that surround the pogo pins and conform to the tablet when seated in the dock to provide optimal contact, and prevent damage to the pins. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM^® Vent-Temp^™, RAM^® Temp-Right^™, RAM^® NFC Reach^™, as well as two small device mounting areas on both the left and right side of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount.

These docks are RAM^® Compatible^™ equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM^® mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries in colder climates including cold storage warehousing, fixed vehicle docking in commercial transportation, and utility services in subzero environments.

FEATURES

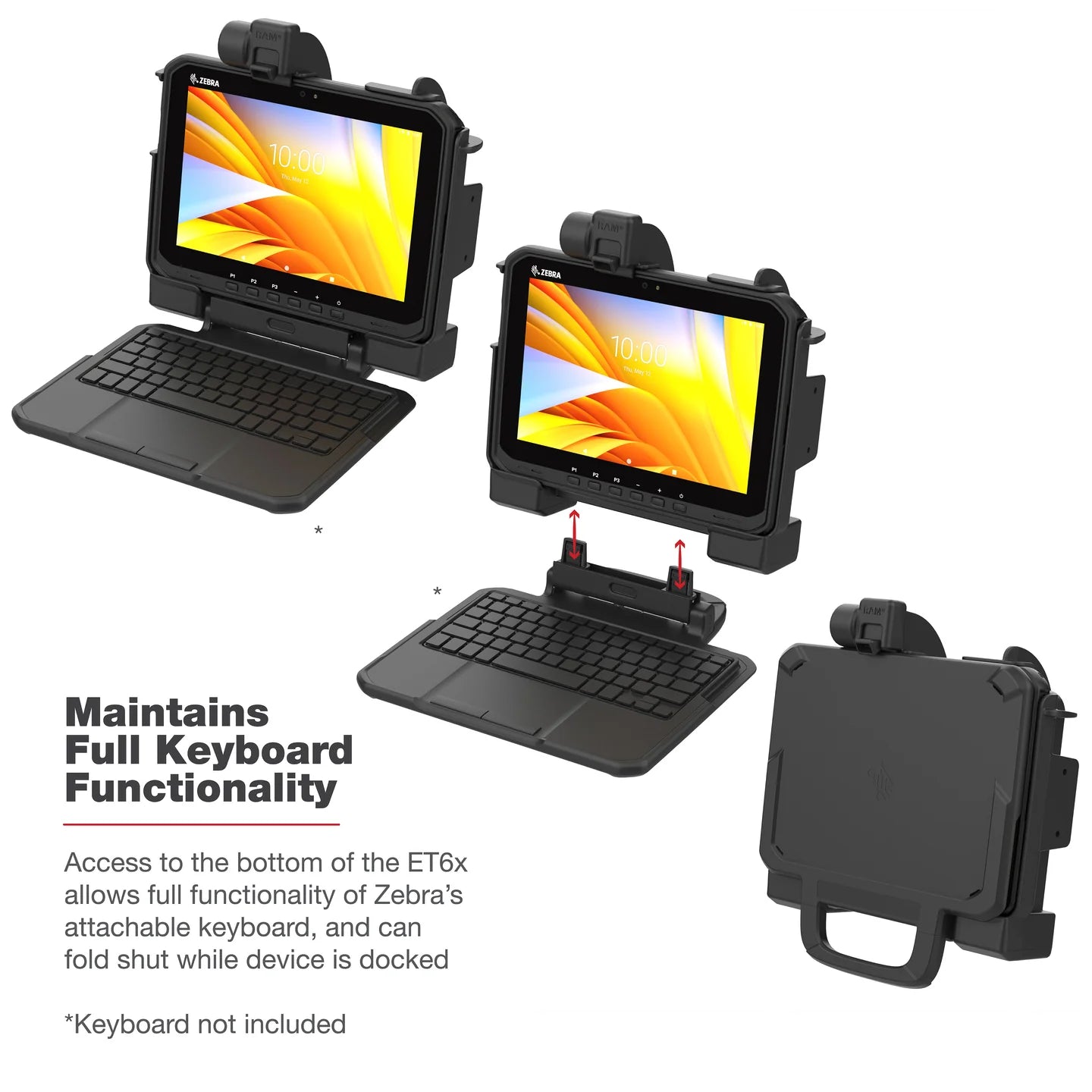

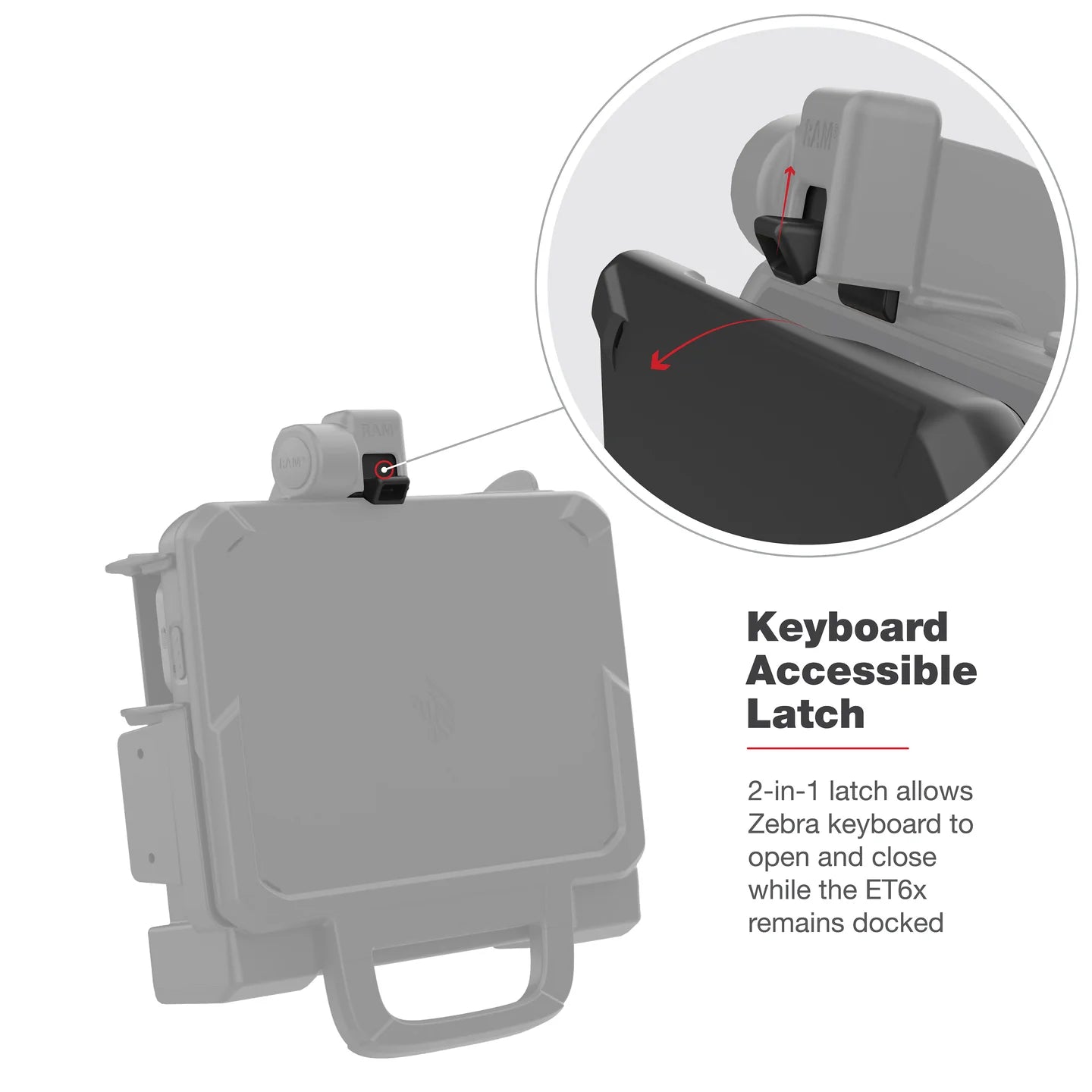

• Form-fit power + Dual USB Type-A dock designed specifically for the Zebra ET60 & ET65 tablets; compatible with or without Zebra keyboard featuring unique 2-in-1 latch that secures the ET60/ET65 while allowing the keyboard to open and close freely

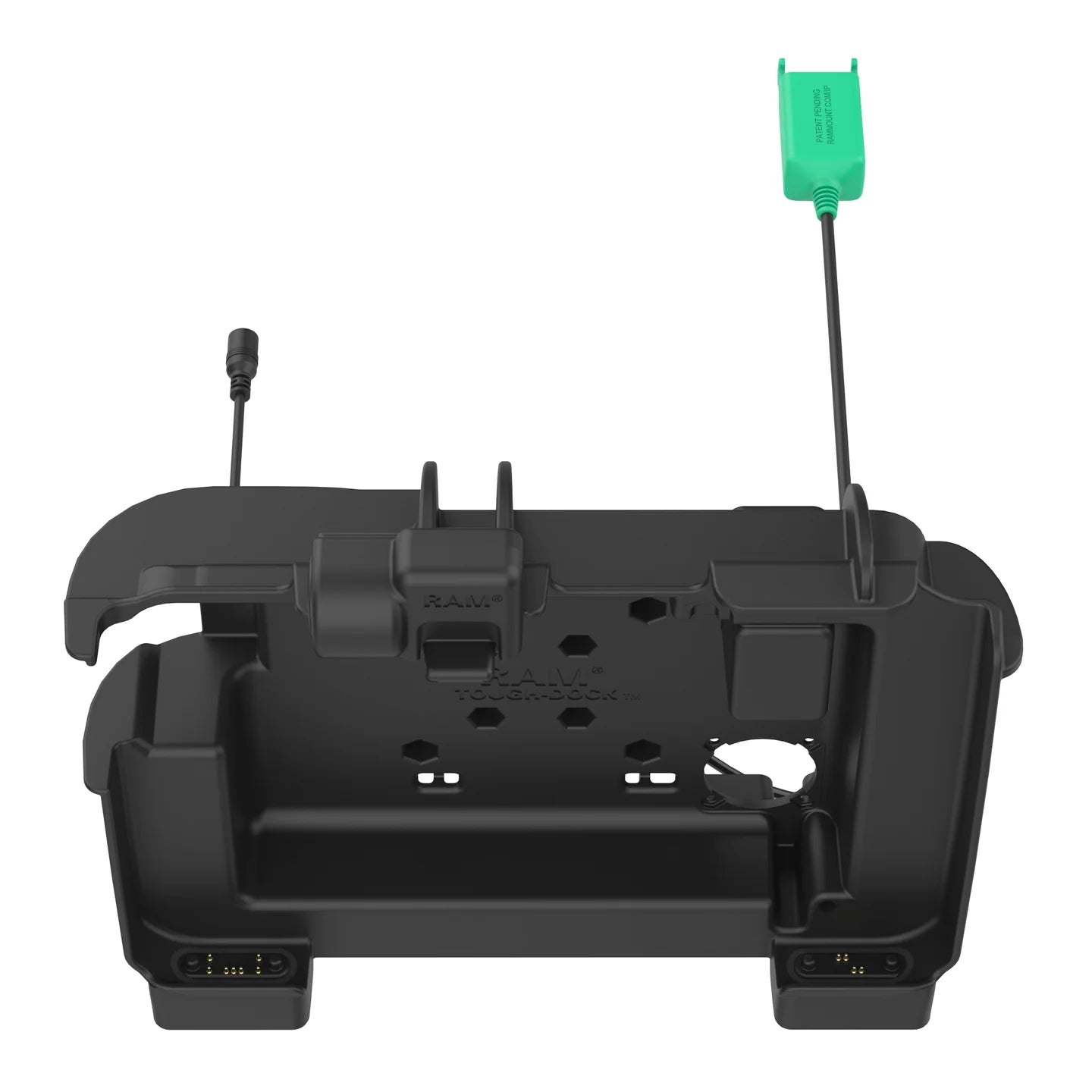

• Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device

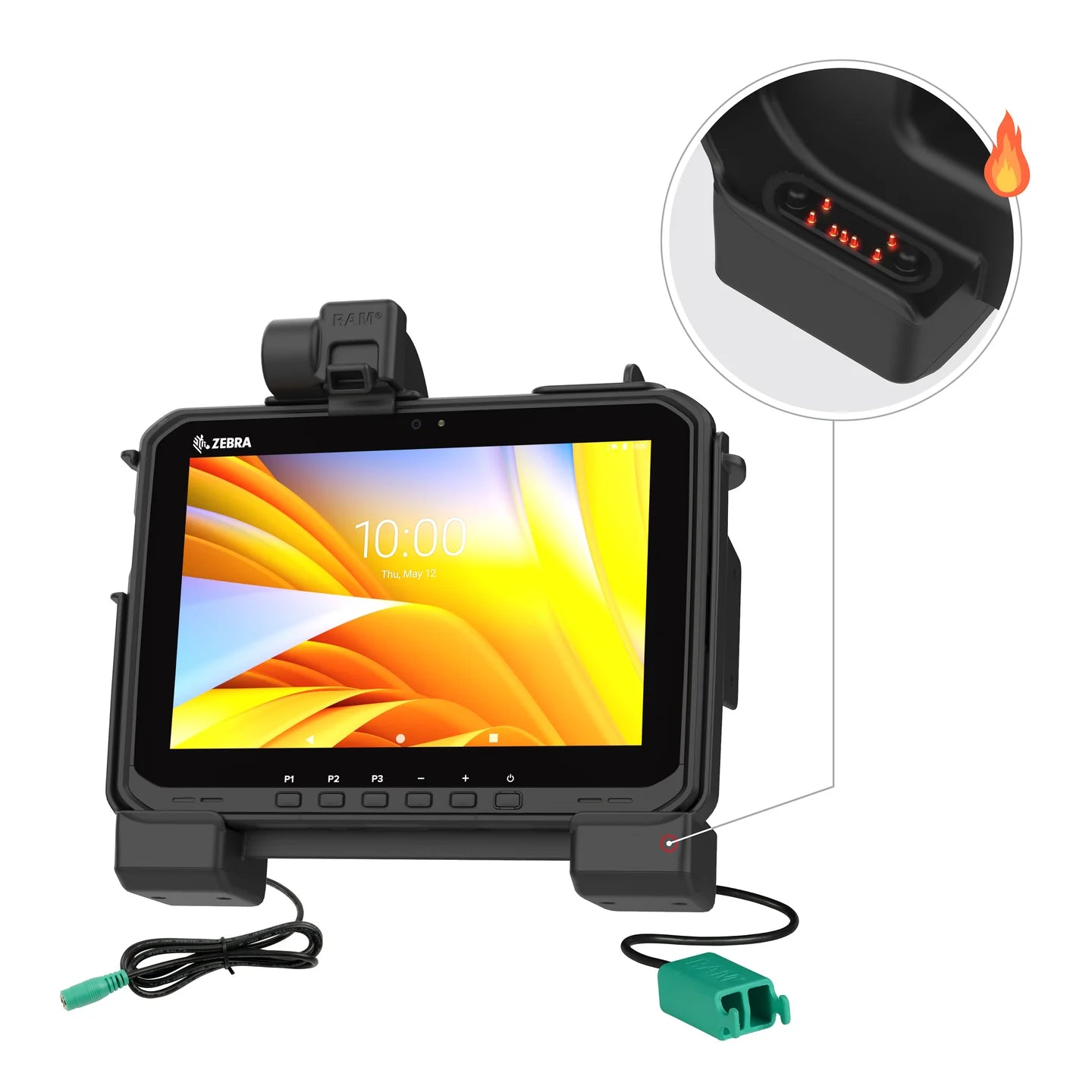

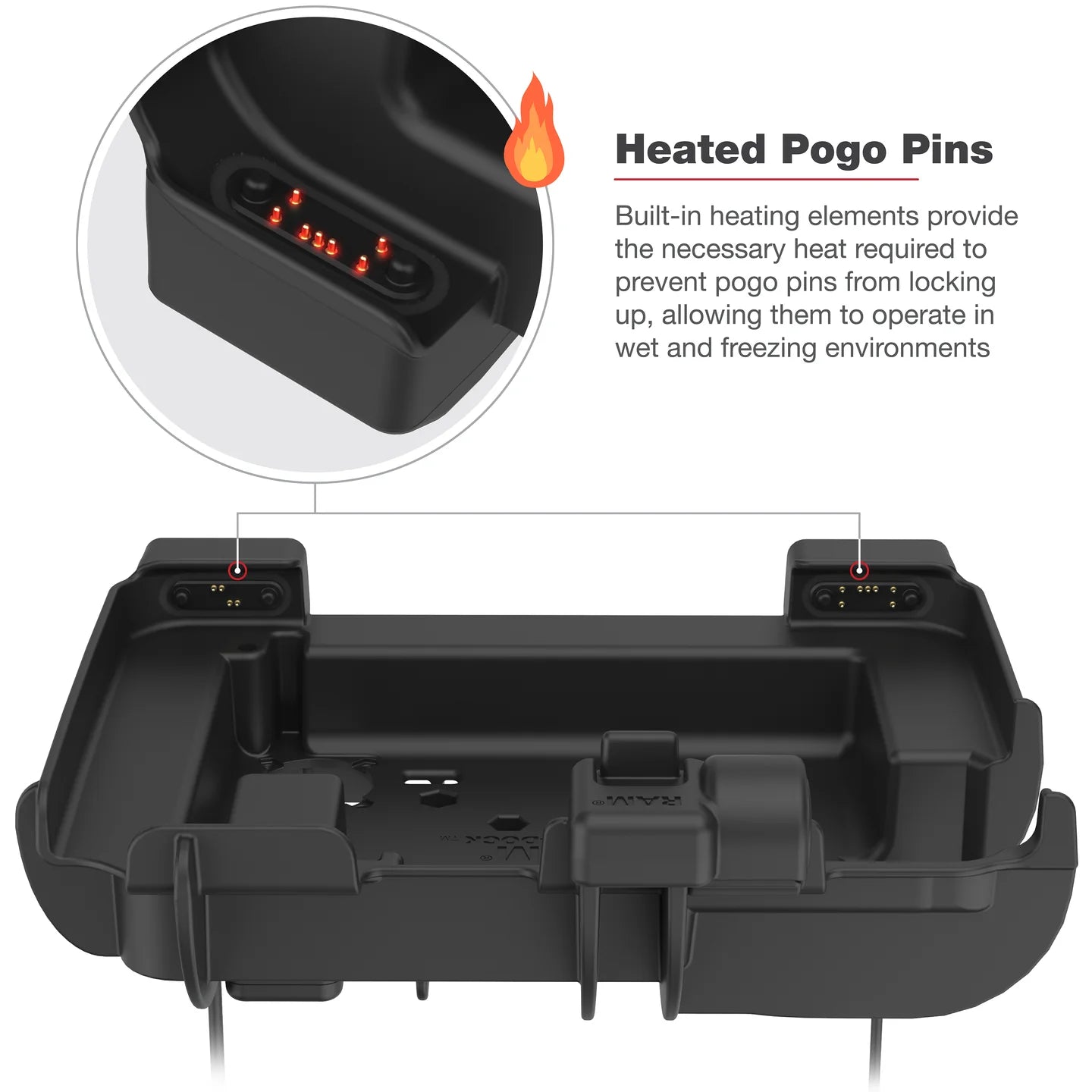

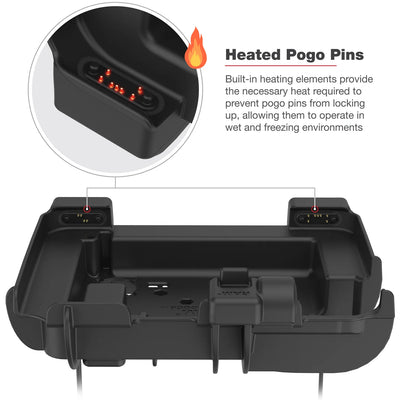

• Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments.

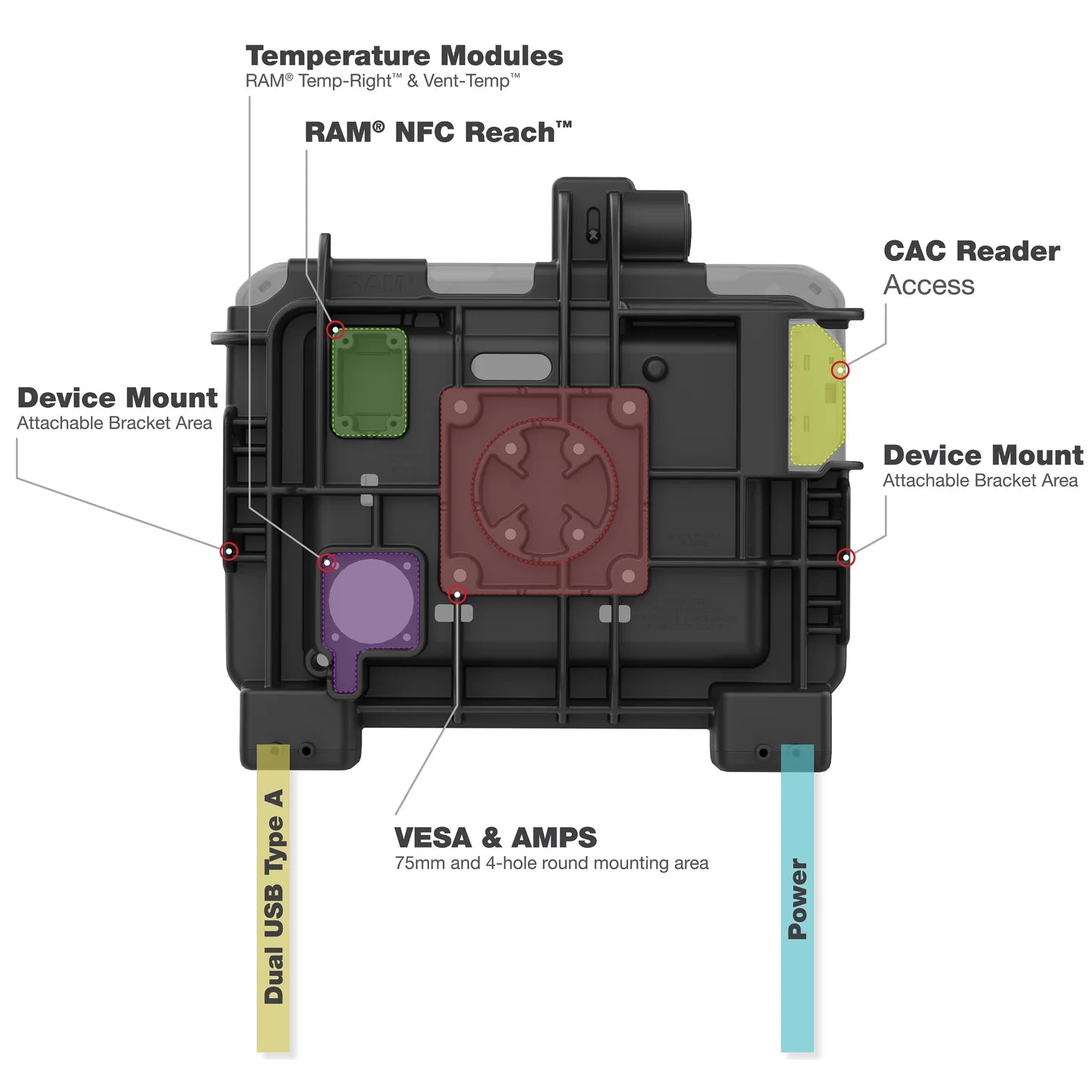

• Add-on accessory compatible including RAM^® Vent-Temp^™, RAM^® Temp-Right^™, RAM^® NFC Reach^™, as well as two small device mounting areas on both the left and right side of the dock; dock also includes cut out on the side of the dock giving access to the Zebra CAC reader with the ability to open and close the CAC reader door

• Backed by a 3-year warranty

HARDWARE INCLUDED
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(8) 4" Zip Ties
(2) 7" Zip Ties

HOLE PATTERN

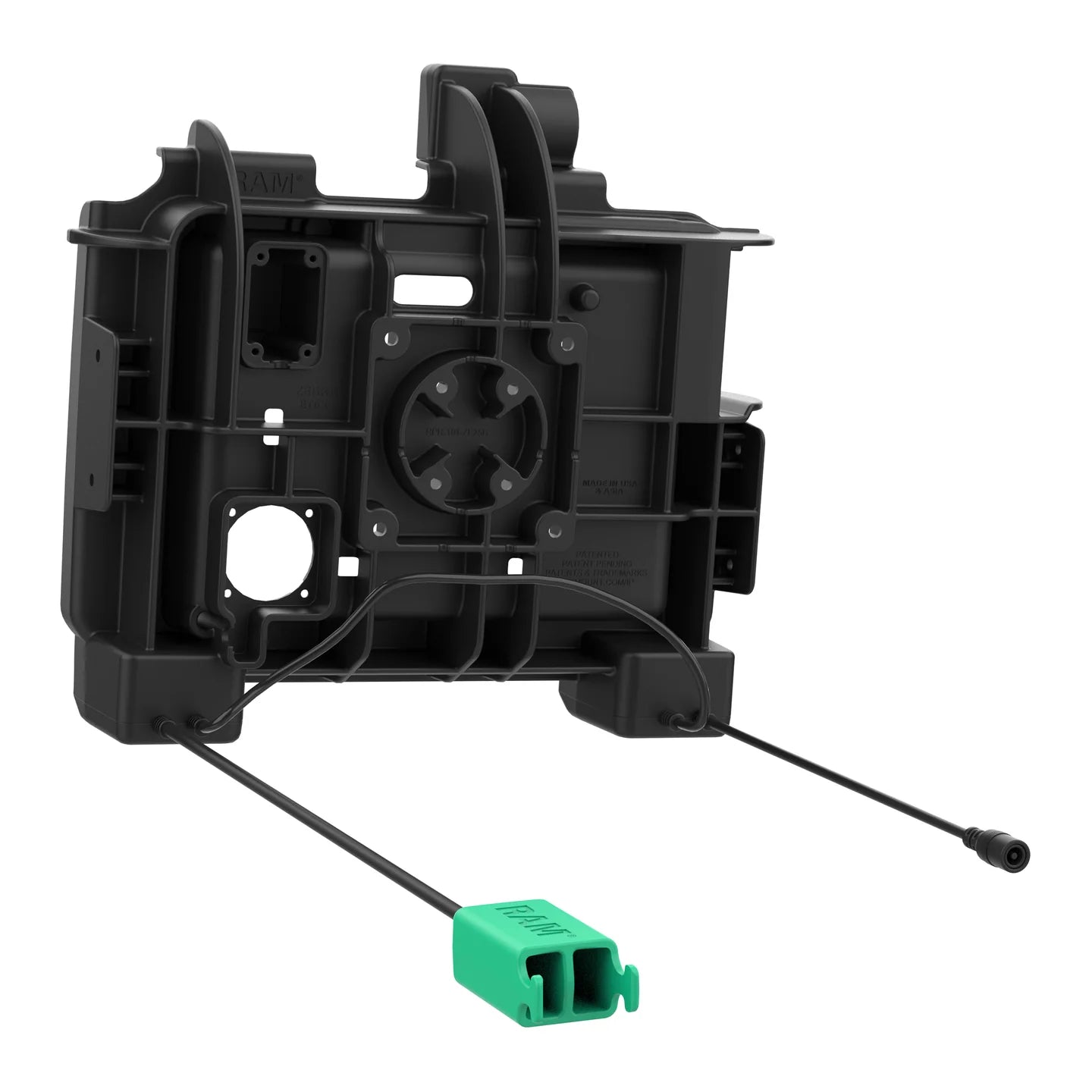

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

INPUT CONNECTOR
5.5mm DC Connector

INPUT CABLE LENGTH
1 Meter

OUTPUT CONNECTOR
(2) USB 2.0 Type A

OUTPUT CABLE LENGTH
305mm

TRANSFER SPEED
12Mbps

 Zebra

• ET60

• ET65
