      Home / Products / RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & 3 - RAM-HOL-SAM60CPN-1AU

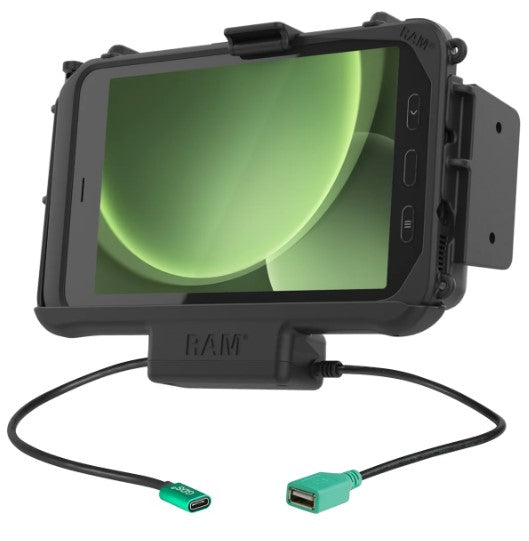

      Powered Tablet Holder for Samsung Active 5

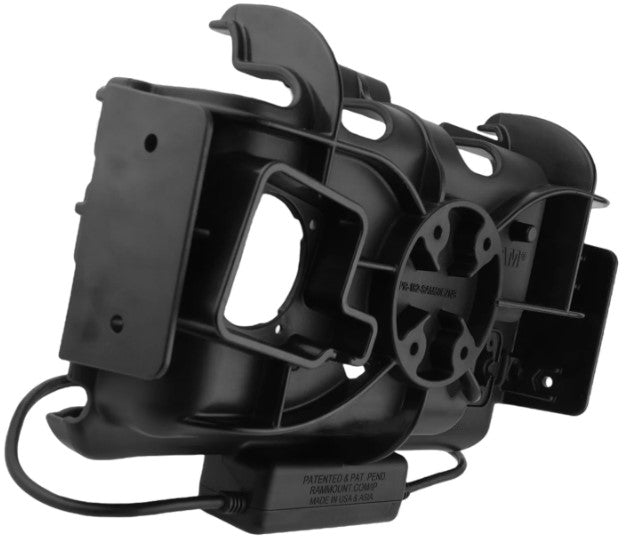

      Backside of Powered Tablet Holder for Samsung Active 5

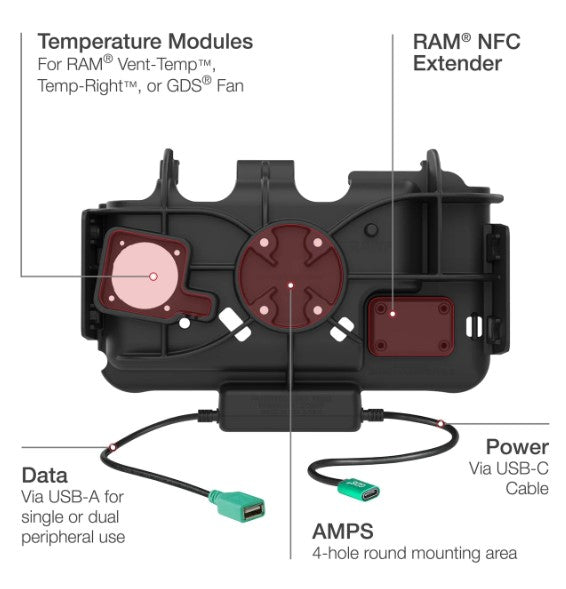

      Features of the Samsung Active 5 Holder

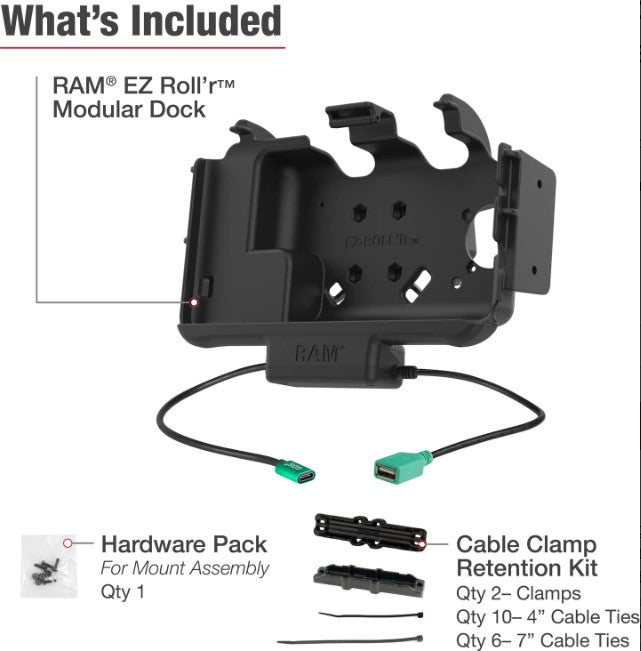

      Whats included with the Samsung Active 5 Holder
      Powered Tablet Holder for Samsung Active 5
      Backside of Powered Tablet Holder for Samsung Active 5
      Features of the Samsung Active 5 Holder
      Whats included with the Samsung Active 5 Holder

      RAM-HOL-SAM60CPN-1AU

      RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & 3 - RAM-HOL-SAM60CPN-1AU

      $118.49 $132.99

      In Stock  - Ships for Free!

      The RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CPN-1AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more.

      Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation.

      This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™.

      Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB-C female pigtail, cable clamp, and zip ties.


      EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection

      Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments

      Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector

      Compatible with the Samsung OEM skin as well as the RAM® Skin™

      Backed by a 3-year warranty

      Hardware Included:

      (4) #8-32 x 5/8" Machine Screws
      (4) #8-32 Nylock Nuts
      (2) Optional Cable Clamp Housings
      (6) Large Cable Ties
      (10) Small Cable Ties

      hole pattern:

      4-Hole AMPS: 1.181" x 1.496"

      materials:

      High strength composite

      packaging type:

      Poly Bag

      input voltage:

      5.3-5.4VDC

      output voltage:

      5VDC

      power output:

      500mA

      input connector:

      USB Type-C Female

      input cable length:

      250mm

      output connector:

      USB 1.1 Type A

      output cable length:

      250mm

      peripheral output:

      500mAh

      transfer speed:

      12Mbps

      Warranty:

      3 year warranty

      Weight:

      0.95 lb

      Additional Information:

      Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

      This product will not support the "No Battery Mode" function.


      Samsung Tab Active5

      Samsung Tab Active3

      Samsung Tab Active2
