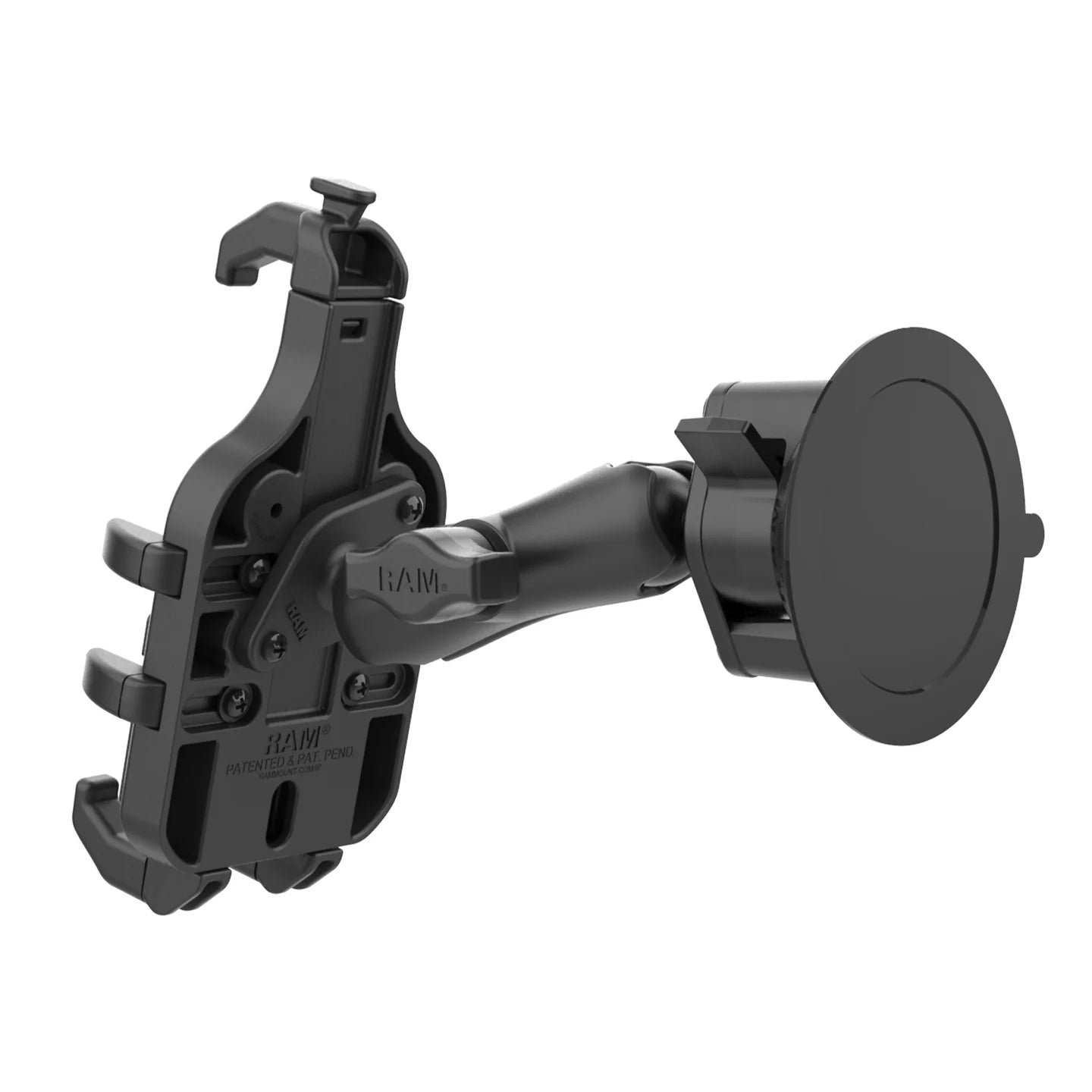

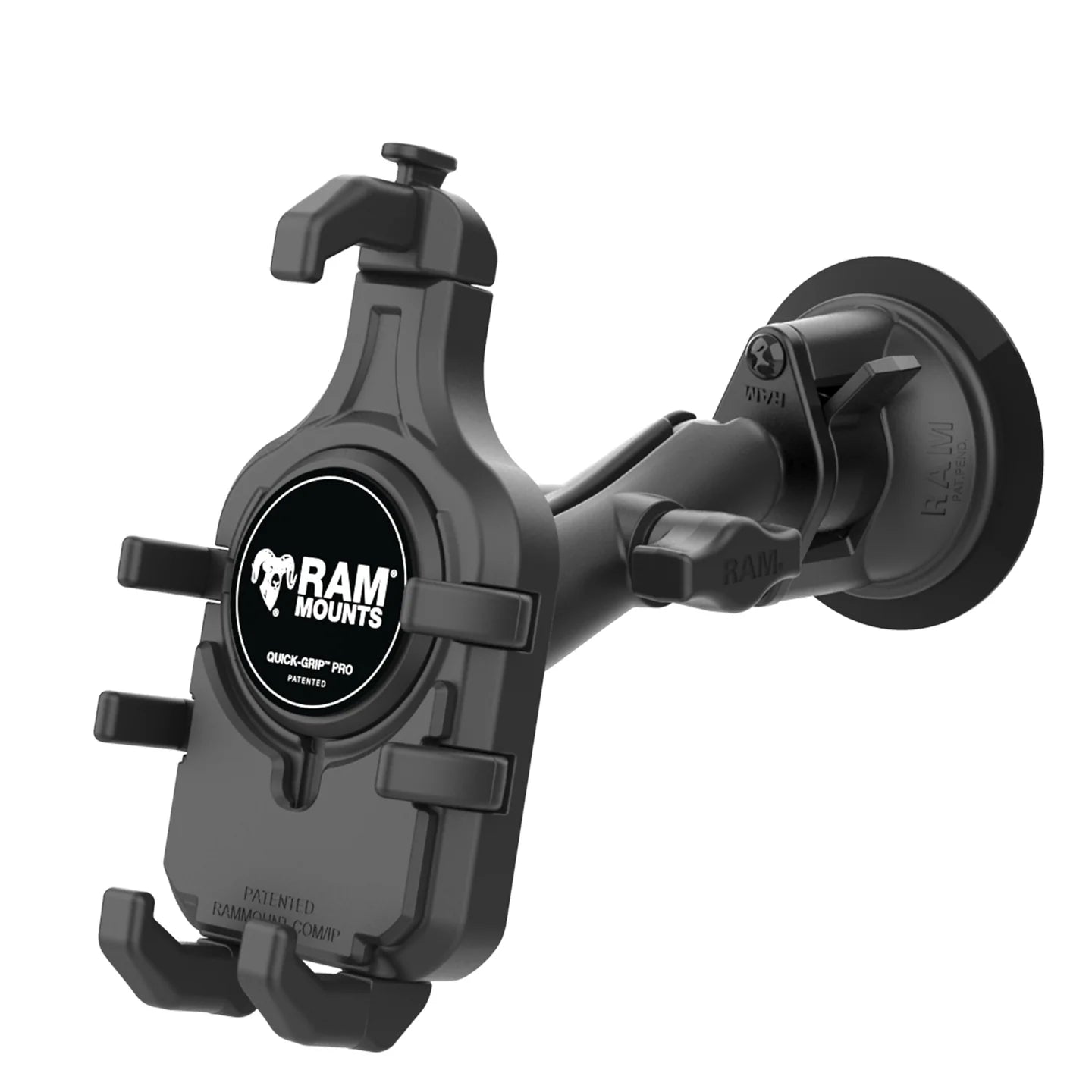

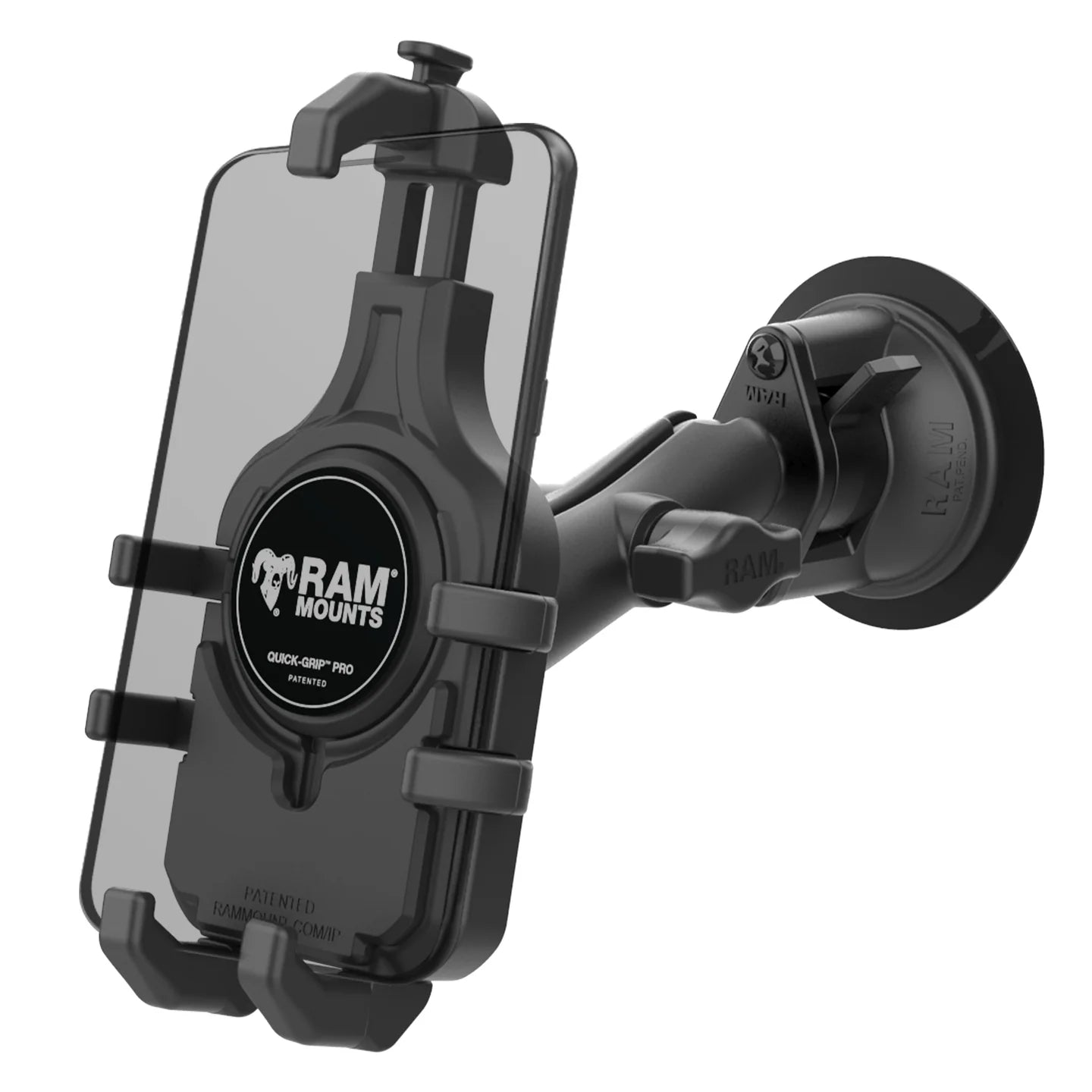

RAM® Quick-Grip™ Pro Phone Mount with Twist-Lock™ Suction Cup - Medium - RAM-B-166-PD5U

The RAM® Quick-Grip™ Pro Phone Mount with Twist-Lock™ Suction Cup - Medium (RAM-B-166-PD5U) is ideal for vehicle windshields and features the next evolution of in RAM® Quick-Grip™ series.

The phone holder is re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. It also features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed.

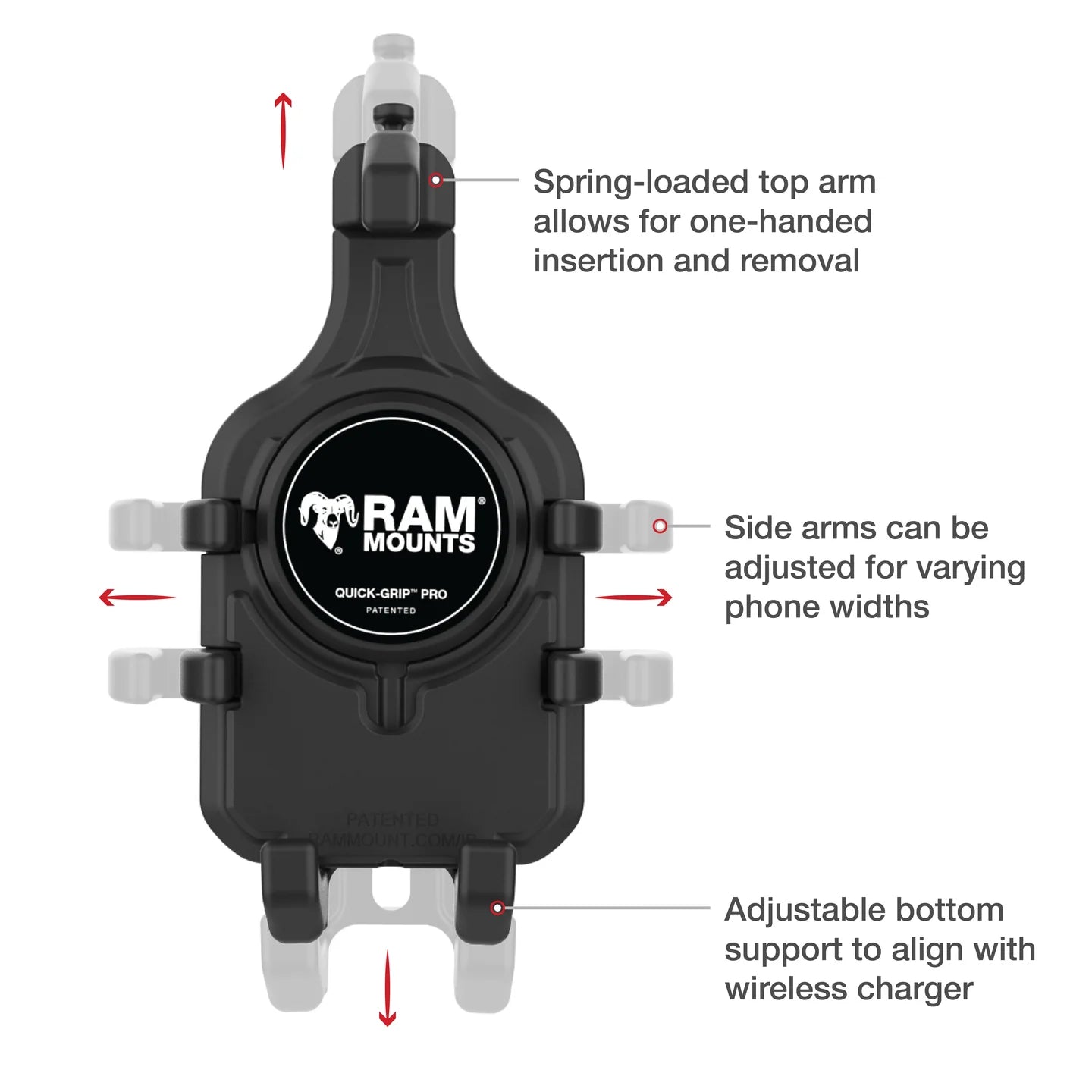

The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes a 3.3" diameter RAM® Twist-Lock™ suction cup base that easily installs onto any non-porous surfaces. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit.

It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

• Spring-loaded holder features adjustable side supports over molded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

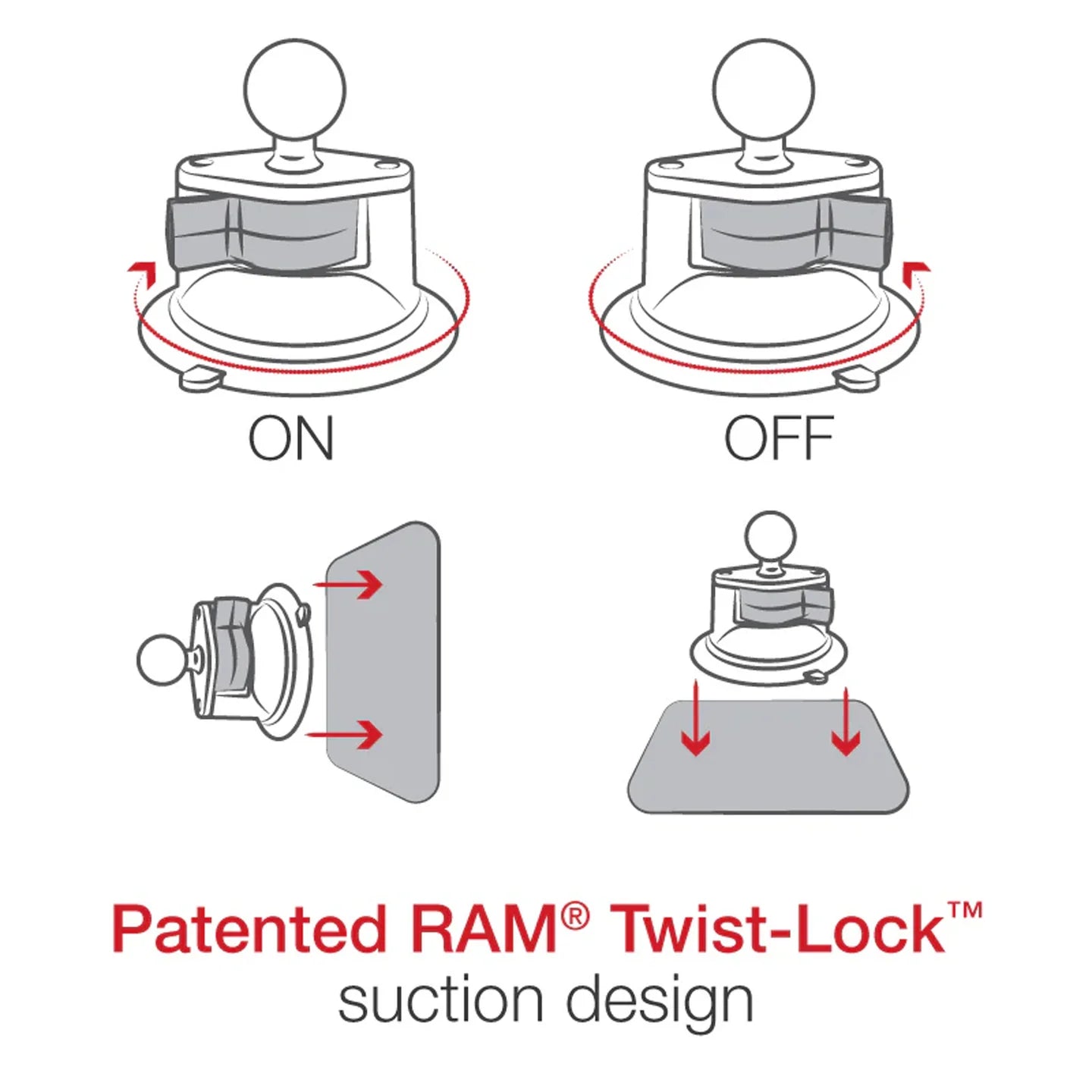

• Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

• Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included

• Comes with optional device tether for open cockpit environments

• Backed by a lifetime warranty*

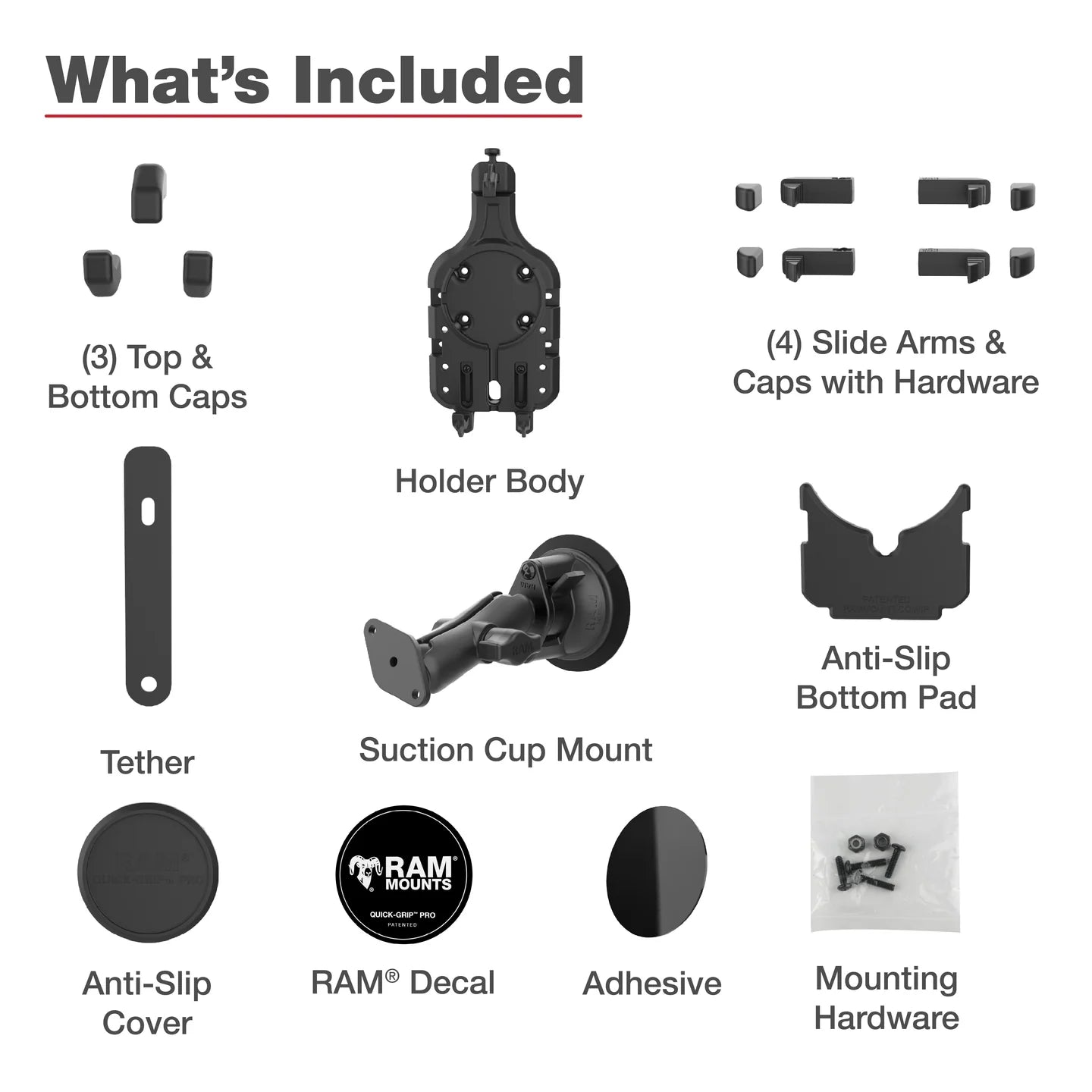

hardware included:
Assembly Hardware

holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"

suction size:
3.3" Diameter

socket to socket length:
3"

ball size:
B Size (1")

weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:
Marine-grade aluminum
High strength composite

packaging type:
Poly Bag
