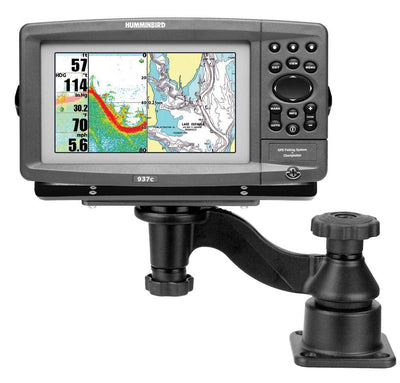

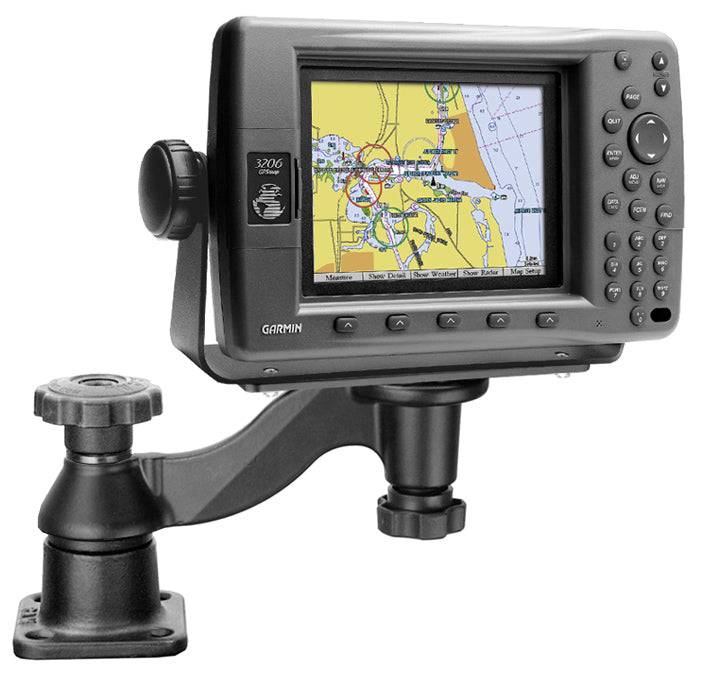

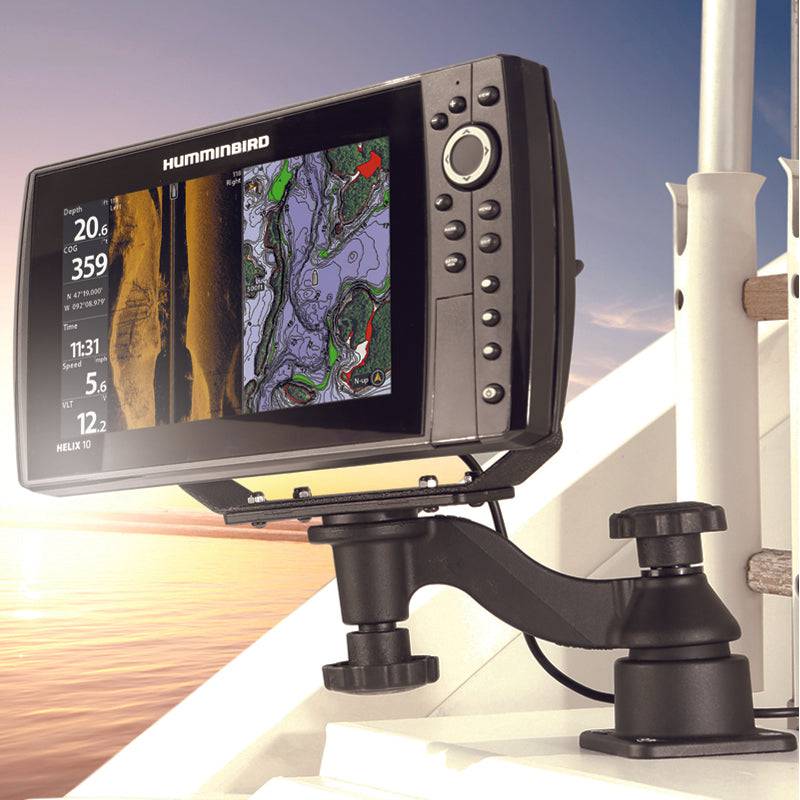

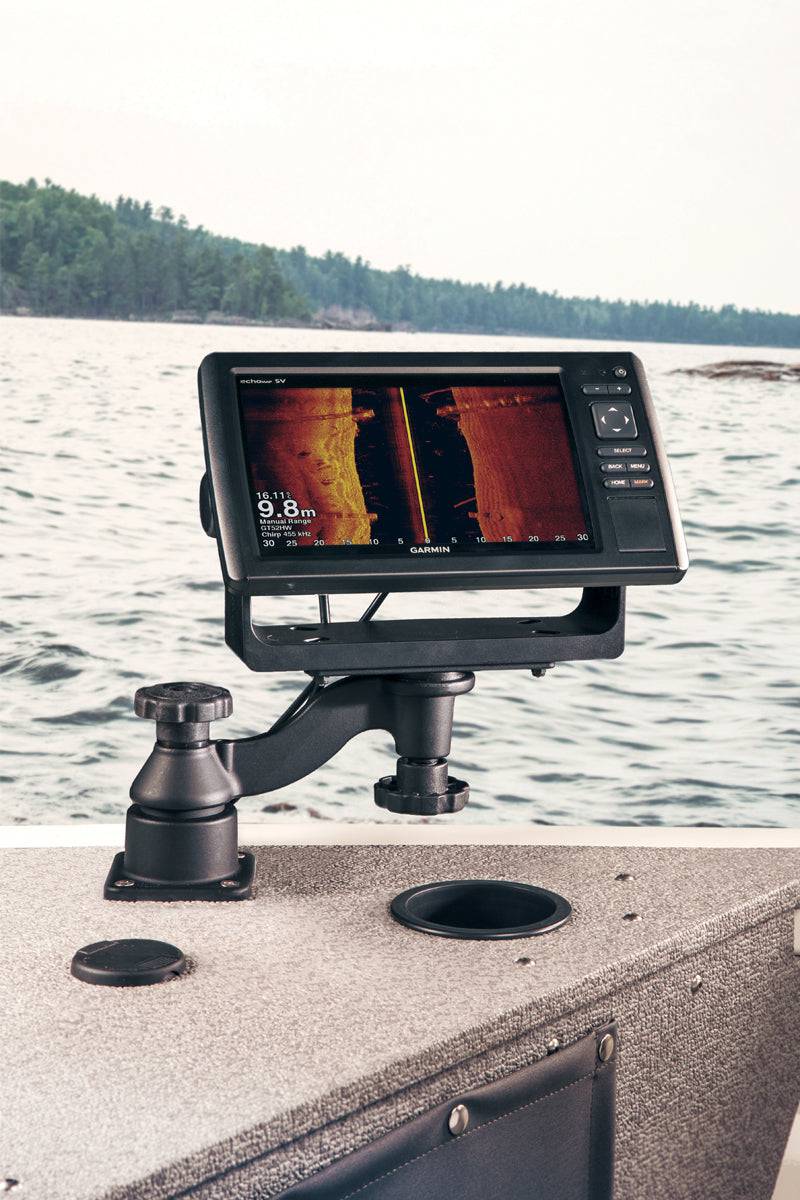

RAM 6" Swing Arm with 6.25" X 2" Horizontal Mounting Base - RAM-109HU

RAM Single 6" Swing Arm With 6.25" X 2" Rectangle Base And Horizontal Mounting Base - RAM-109HU Marine Electronic Mounts

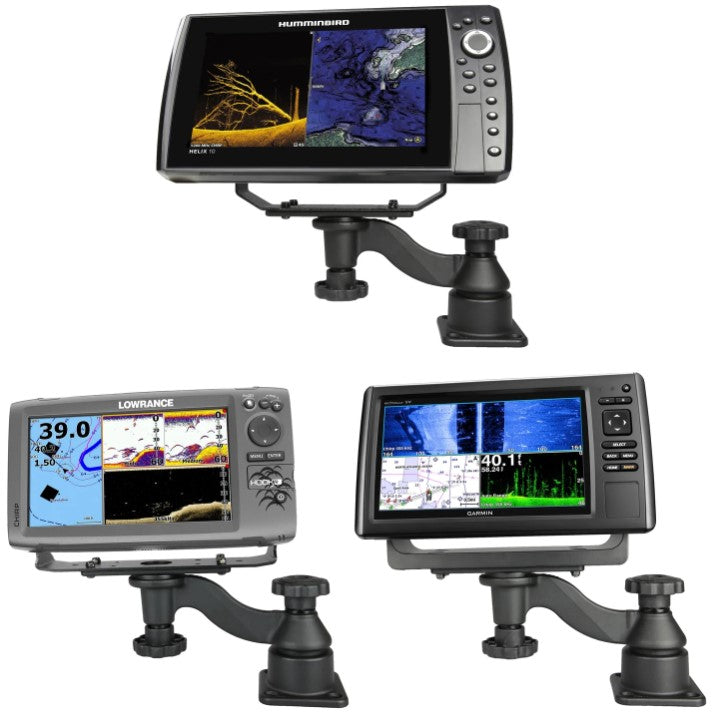

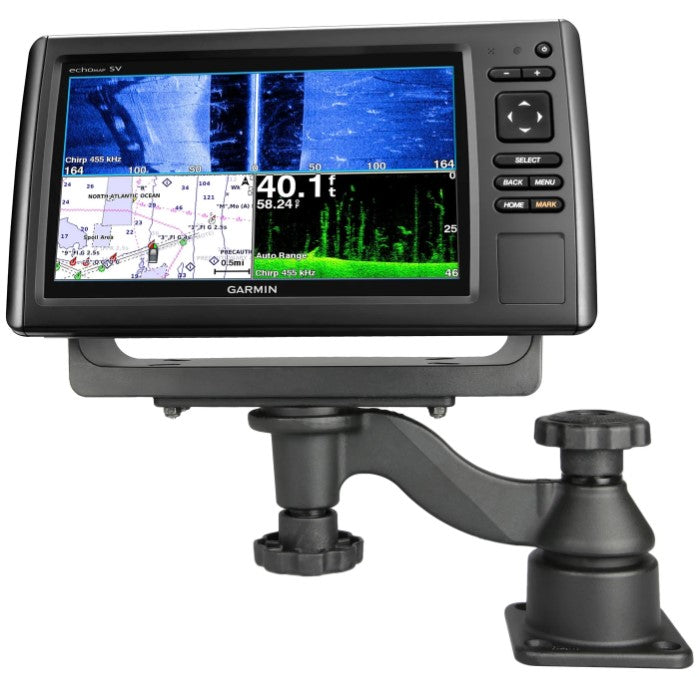

The RAM-109HU sets a new standard for marine electronic mounts. This mounting solution contains a variety of hole locations compatible with many popular fishfinders, including models from Garmin, Humminbird, Lowrance, and Raymarine. The mount also works with a number of popular marine GPS devices. The universal drill-down assembly is easy to install on a boat, so you can be up and running in minutes.

RAM-109HU Specifications

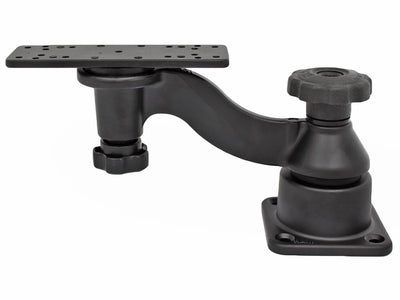

This RAM marine mount is made from powder-coated steel and high-strength composite for maximum durability at sea. It features a 6” bent swing arm mounted atop a horizontal surface mounting base. A rectangular 6.25" x 2" plate is connected to the mounting end.

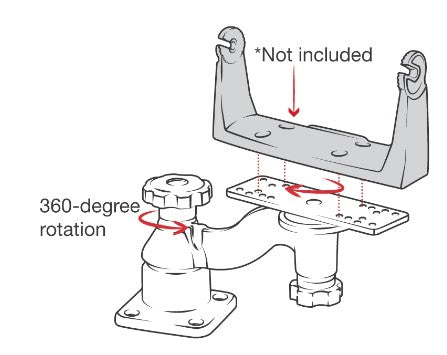

Both the swing arm and the rectangular plate allow for complete 360-degree rotation, so you can easily adjust your marine GPS device according to your needs. The whole component weighs just over 2 pounds but has a weight capacity of up to 10 pounds. The RAM-109HU is also extremely compact. The swing arm measures 6”, and the overall height is just 5.41”.

Order Today

In business for over 15 years, OC Mounts is your source for the best marine electronic mounts. We’re an authorized RAM Mounts dealer, and we offer free shipping on all orders over $25. Order your fishfinder mount today.

Plate Hole Patterns - PDF Plate Hole Patterns - PDF

RAM-109H Dimensions - PDF RAM-109H Dimensions - PDF

A. Center of knob to center of ball socket: 6"
B. Overall length of swing arm assembly: 10.75"
C. Overall height: 5.6"
D. Height from base to top of knob: 4.91"

Powder Coated Marine Grade Aluminum

The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

2.09 lbs.

  • Garmin Fishfinders/Chartplotters
  • Humminbird Fishfinders/Chartplotters
  • Lowrance Fishfinders/Chartplotters
  • Raymarine Fishfinders/Chartplotters
  • Si-Tex Fishfinders and GPS Chartplotters
  • echoMAP Chirp 72-95 Series

    ECHOMAP Plus 72-97 Series

    ECHOMAP UHD 62-95 Series




    ECHOMAP Ultra 102sv

    ECHOMAP Ultra 106sv

    GPSMAP 722

    GPSMAP 722xs

    GPSMAP 723

    GPSMAP 723xsv

    GPSMAP 742

    GPSMAP 742xs

    GPSMAP 743

    GPSMAP 743xsv

    GPSMAP 8410

    GPSMAP 8410xsv

    GPSMAP 8412

    GPSMAP 8412xsv

    GPSMAP 8416

    GPSMAP 8416xsv

    GPSMAP 8610

    GPSMAP 8610xsv

    GPSMAP 8612

    GPSMAP 8612xsv

    GPSMAP 8616

    GPSMAP 8616xsv

    GPSMAP 922

    GPSMAP 922xs

    GPSMAP 923

    GPSMAP 923xsv

    GPSMAP 942

    GPSMAP 942xs

    GPSMAP 943

    GPSMAP 943xsv

    GPSMAP 1223

    GPSMAP 1223xsv

    GPSMAP 1243

    GPSMAP 1243xsv

    Striker Plus 5cv

    Striker Vivid 5cv

    Striker Plus 7cv

    Striker Plus 7sv

    Striker Vivid 5cv

    Striker Vivid 7cv

    Striker Vivid 7sv

    Striker Plus 9sv

    Striker Vivid 9sv

  • Fishfinders and GPS Chartplotters
  • Apex 13
  • Apex 16
  • Helix 8
  • Helix 9
  • Helix 10
  • Helix 12
  • Helix 15
  • Solix 15
  • Fishfinders and GPS Chartplotters
  • Elite FS 7
  • HDS Carbon 7
  • HDS LIVE 7
  • HDS LIVE 9
  • HDS LIVE 12
  • HDS PRO 9
  • HDS PRO 10
  • HDS PRO 12
  • HDS PRO 16
  • Hook Reveal 7 Series
  • Hook Reveal 9 Series
  • HOOK-9
  • Fishfinders and GPS Chartplotters
  • Fishfinders and GPS Chartplotters
Customer Reviews
5.0 Based on 1 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:

    Perfect mount for me

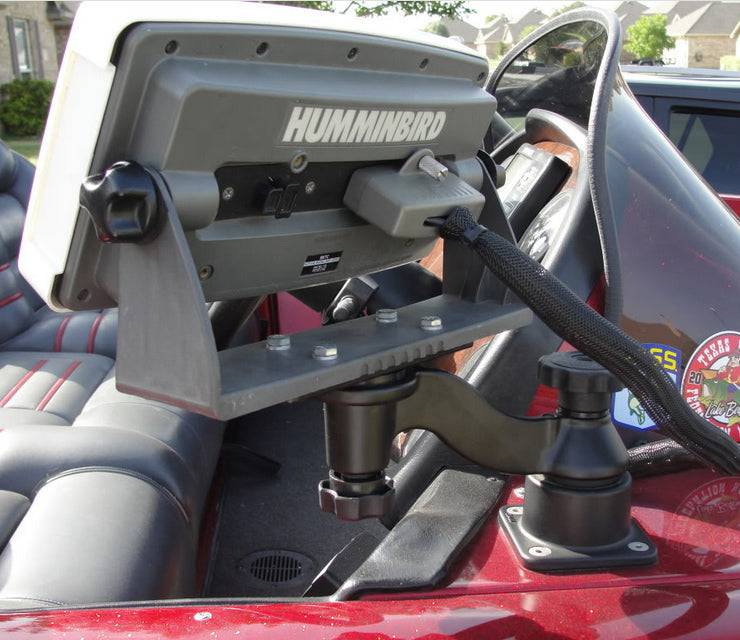

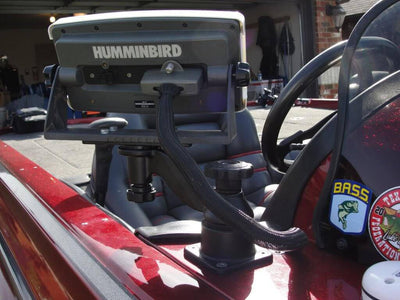

    Due to the size and shape of the console in my boat, I could not use a traditional flat mount on it. To the right of the console I did have a flat area. This mount was easy to install and it put my side imaging unit at my fingertips. No reaching to access it as this mount allowed the unit to swing just to the right of my steering wheel. I love the mount.
