      Home / Products / RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls - RAM-200-1U
      RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls - RAM-200-1U - OC Mounts
      RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls - RAM-200-1U - OC Mounts
      RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls - RAM-200-1U - OC Mounts
      RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls - RAM-200-1U - OC Mounts

      RAM-200-1U

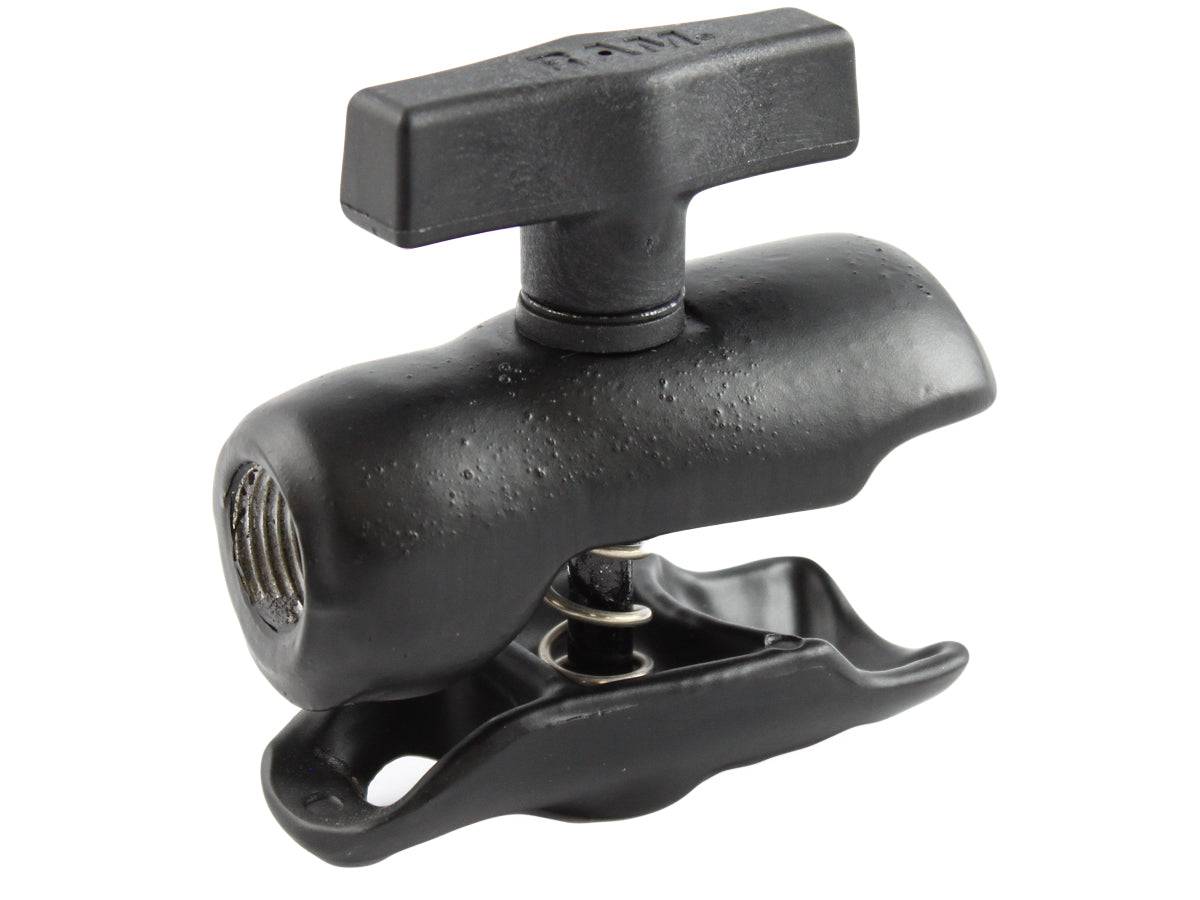

      RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls - RAM-200-1U

      Out of Stock    ( Chat Live to get an ETA )

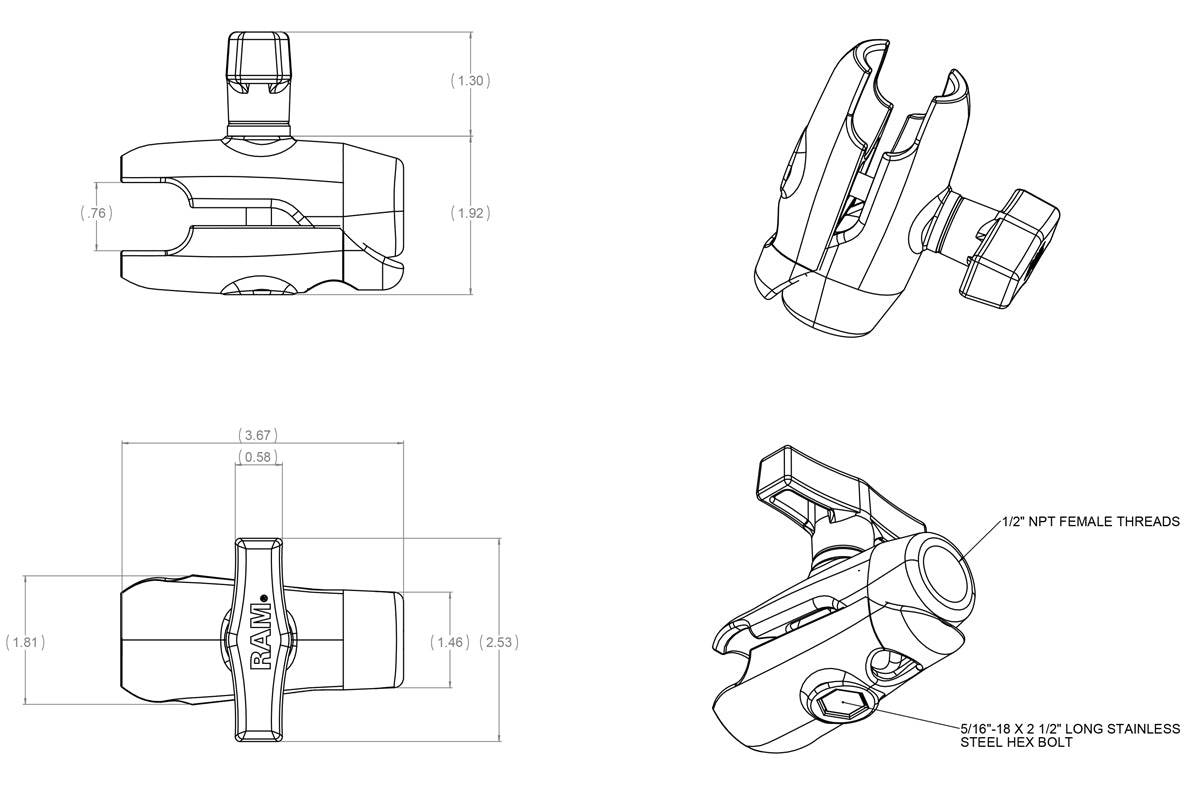

      The RAM-200-1U includes a single socket that will accommodate 1.5" balls and a 1/2" NPT Female thread. This part will connect to 1/2" NPT Male threads, including RAM-PA82XX rigid arms.

      Material:
      Powder Coated Marine Grade Aluminum

      Ball Size:
      1.5" Rubber Ball Size

      Note:
      The "U" in the part number reflects product packaged in poly bag.

      NPT Thread and Pipe Sizing:
      NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:

      NPT Size (NPS) Pipe Outer Dia. (OD) Threads per inch
      1/4" 0.540" 18
      1/2" 0.840" 14
      1" 1.315" 11.5


      Weight:
      0.4 lbs.

      RAM SINGLE BALL ARM WITH 1/2" NPT HOLE

      RAM® Mounts: Ball Sizes & Weight Capacities
