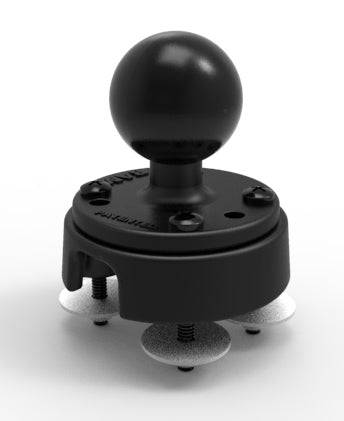

RAM Small Cable Manager for 2.5" Round Plates with AMPs Hole Pattern - RAP-403U

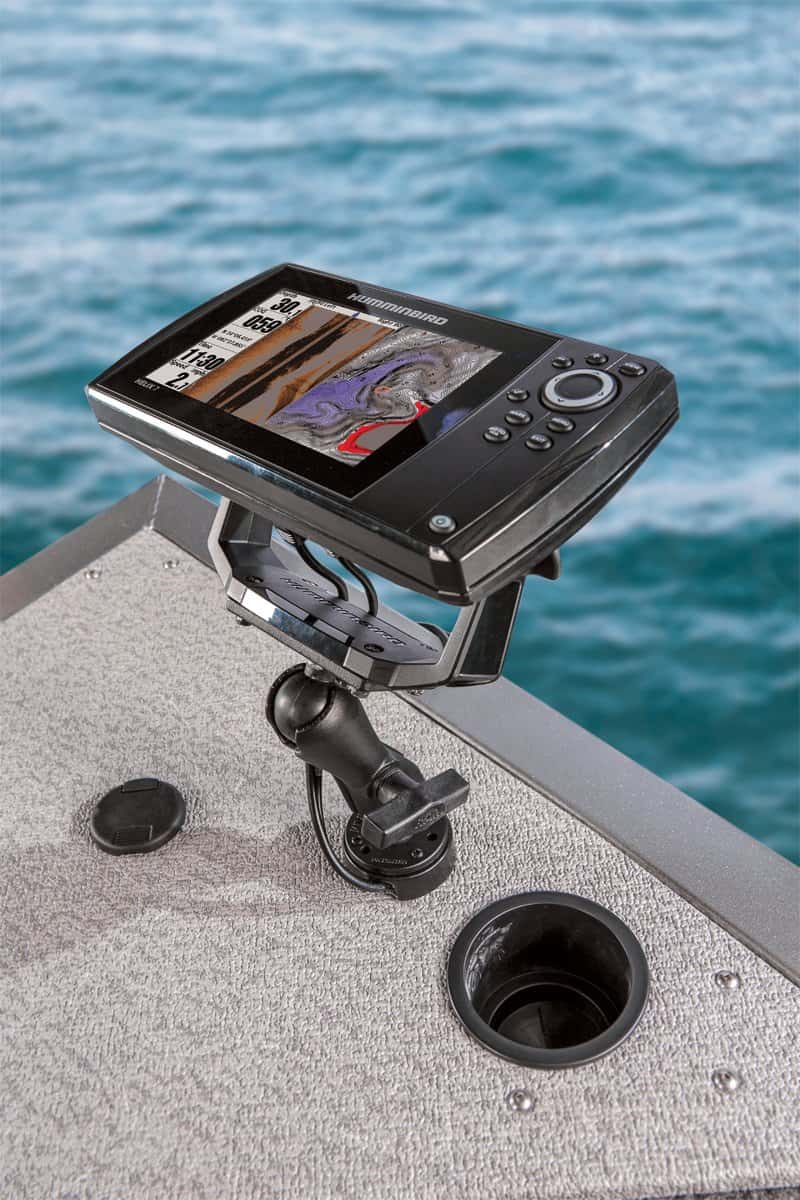

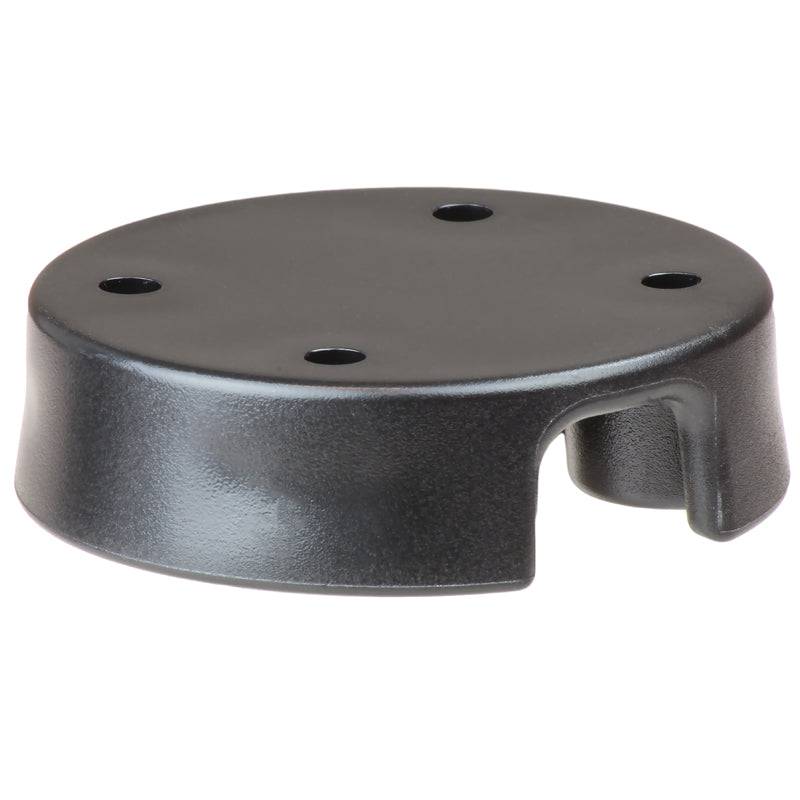

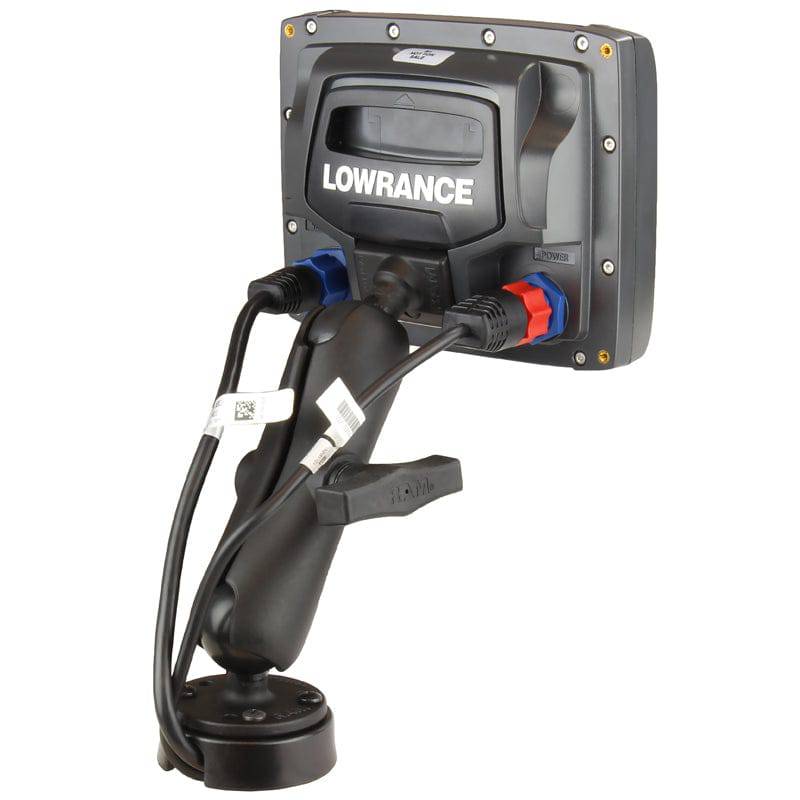

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2.5" round plates with AMPs hole pattern.

Compatible RAM Mounts:
Compatible with B Size 1" and C Size 1.5" balls on a 2.5" diameter base that contain the universal AMPs hole pattern.

Hardware Included:
(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers

Dimensions:
Cable slot height: 0.56”
Cable slot width: 0.7”
Max mounting surface thickness: 0.68”

Material:
High Strength Composite and Glass Filled Nylon

IMPORTANT:
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.

Note:
RAM ball not included with RAP-403U. Will not fit D Size 2.25" Ball with 3.68" diameter base.

Weight:
0.25 lbs.

RAM Small Cable Manager Assembly Instructions - PDF
