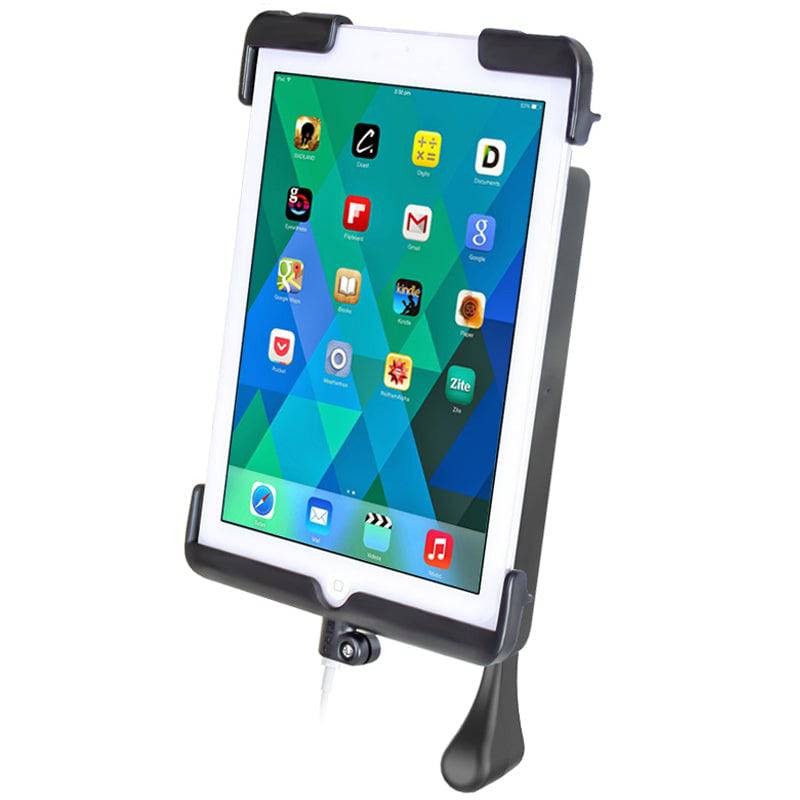

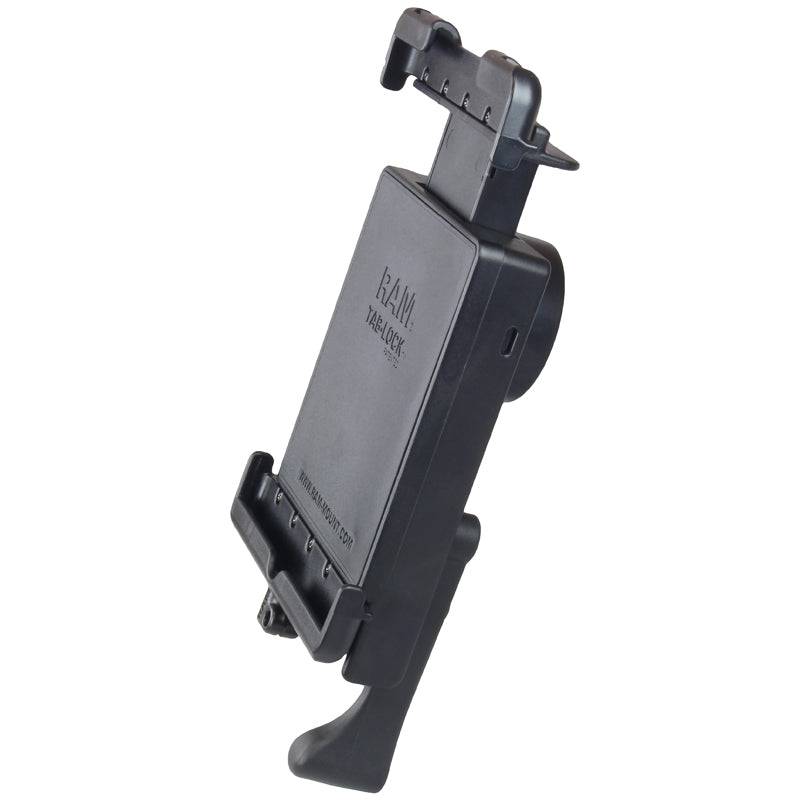

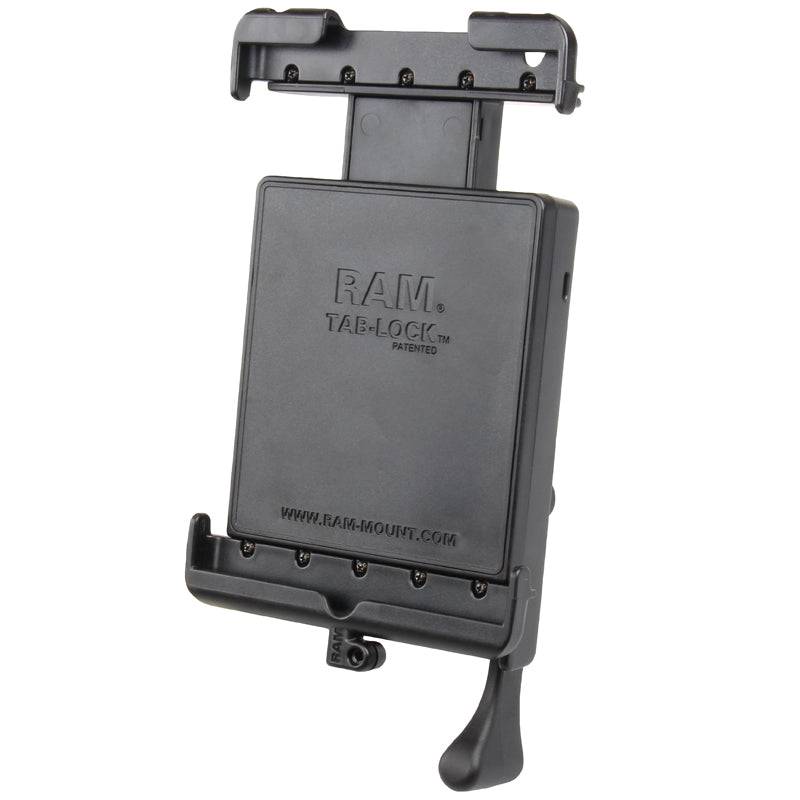

RAM TAB DOCK-N-LOCK™ Model Specific Sync & Lock Cradle for the Apple iPad mini 1-3 WITHOUT CASE, SKIN OR SLEEVE - RAM-HOL-TABL11U

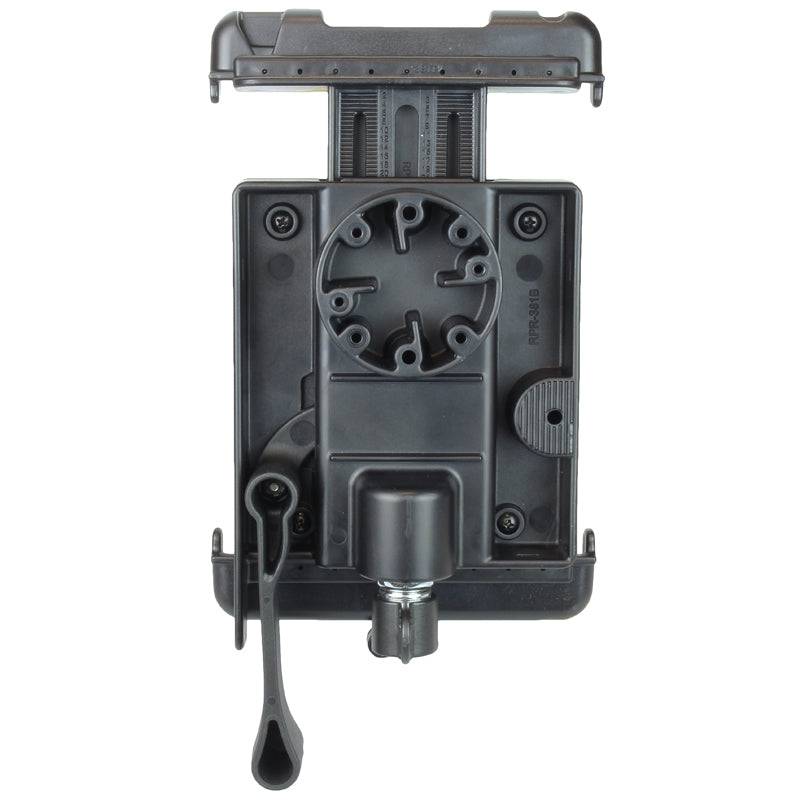

The RAM-HOL-TABL11U consists of a spring loaded backplate, custom support cups and locking mechanism for the iPad mini WITHOUT skin, sleeve or case. This spring loaded design makes it easy to load and unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.

The TAB DOCK-N-LOCK^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specs & Features

Features:

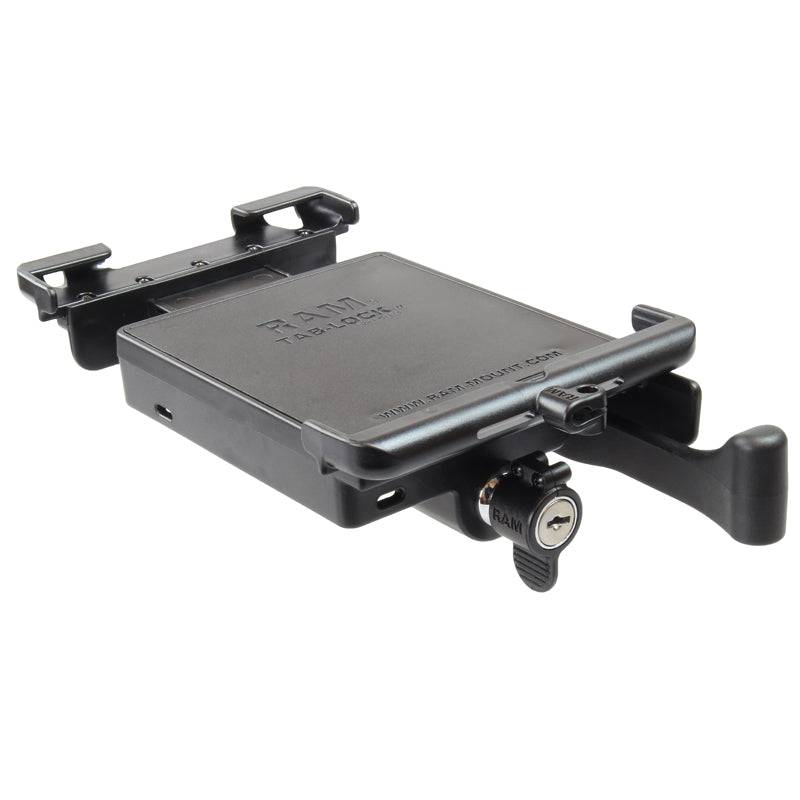

1. Locking mechanism for theft deterrence
2. Support cups contain open slots to accommodate for tablets of various sizes
3. Back plate can support various size support cups
4. Spring loaded tension provides secure support for your tablet
5. Spring loaded cradle allows for quick release of your tablet
6. High strength materials maximize longevity of cradle
7. Full access to all ports
8. Lifetime warranty

Material:
High Strength Composite

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
1.15 lbs.

Cradle Dimensions:
Height: 6.55" to 9.80"
Width: 5.06" to 5.31"
Depth: 0.13" to 0.56"

 RAM Tab-Lock Assembly Guide - PDF

 Lightning Connector Dock Conversion Instructions - PDF

     Tab-Lock^™ Assembly

How to Convert your RAM Mount to hold different tablets
