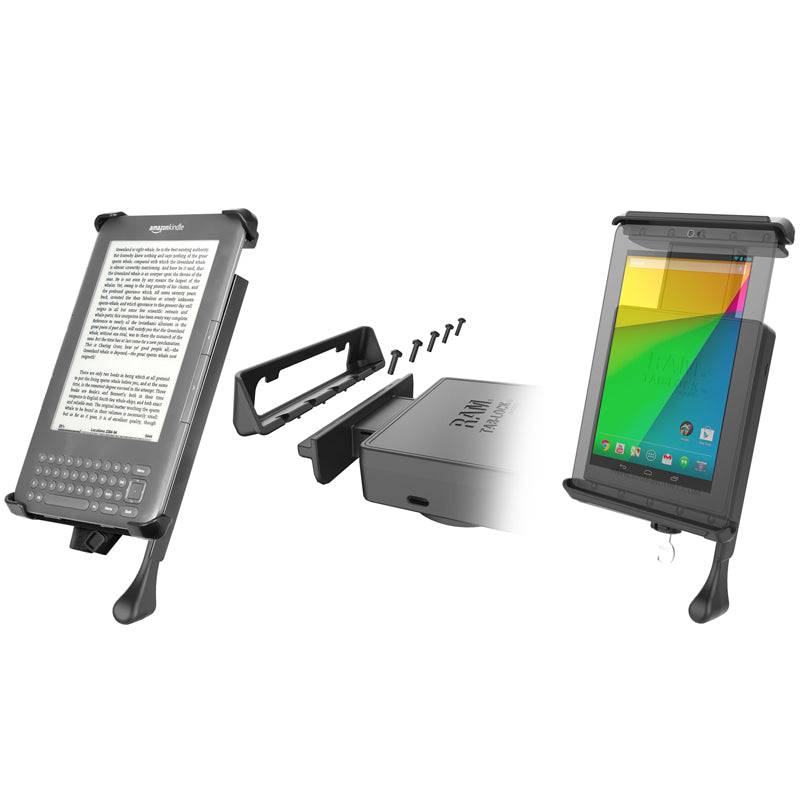

RAM Tab-Lock™ Locking Cradle for 7" Screen Tablets - RAM-HOL-TABL-SMU

Almost everyone wants a tablet pc so don't let someone get yours for free. Keep it safe with the new RAM locking Tab-Lock^™ tablet cradle. This product is sure to make most would-be thieves think twice about trying to steal yours. Our easy to use locking cradle not only looks great and performs flawlessly, but it is compatible with RAM's full line of mounting solutions ideally suited for personal and fleet use. Spring loaded and form fitting, this compact yet durable cradle won't take up a lot of space yet provides loads of security. With the new Tab-Lock^™ tablet cradle, RAM lets you keep your tablet where it belongs...in your possession.

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

	(TAB4) Cradle Dimensions Height: 7.125" minimum to 9.125" maximum Width: Minium width 4" Maximum width to 5.31" Depth: 1.06" maximum
	(TAB2) Cradle Dimensions Height: 6.75" minimum to 8.75" maximum Width: Minium width 4" Maximum width to 5.31" Depth: 0.56" maximum
	(TAB5) Cradle Dimensions Height: 6.75" minimum to 8.75" maximum Width: Minium width 4" Maximum width to 4.70" Depth: 0.44" maximum

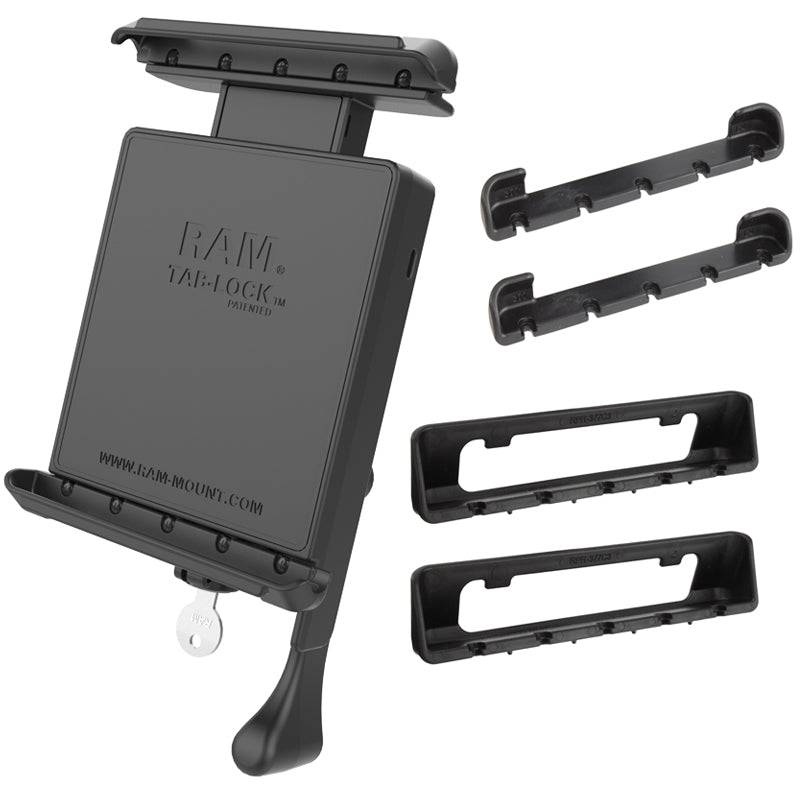

Features: 1. Support cups contain open slots to accommodate for tablets of various sizes 2. Back plate can support various size support cups 3. Spring loaded tension provides secure support for your tablet  4. Spring loaded cradle allows for quick release of your tablet 5. Full access to all ports  Material: High Strength Composite  Included With Purchase: (1) Spring loaded locking back plate (2) Support cups for thin tablets with no skins (2) Support cups for thin tablets with thin or no skins (2) Support cups for thick tablets with cases Mounting hardware  Note: The "U" in the part number reflects product packaged in poly bag.

Weight:
1.23 lbs.

RAM Tab-Lock Assembly Guide - PDF
