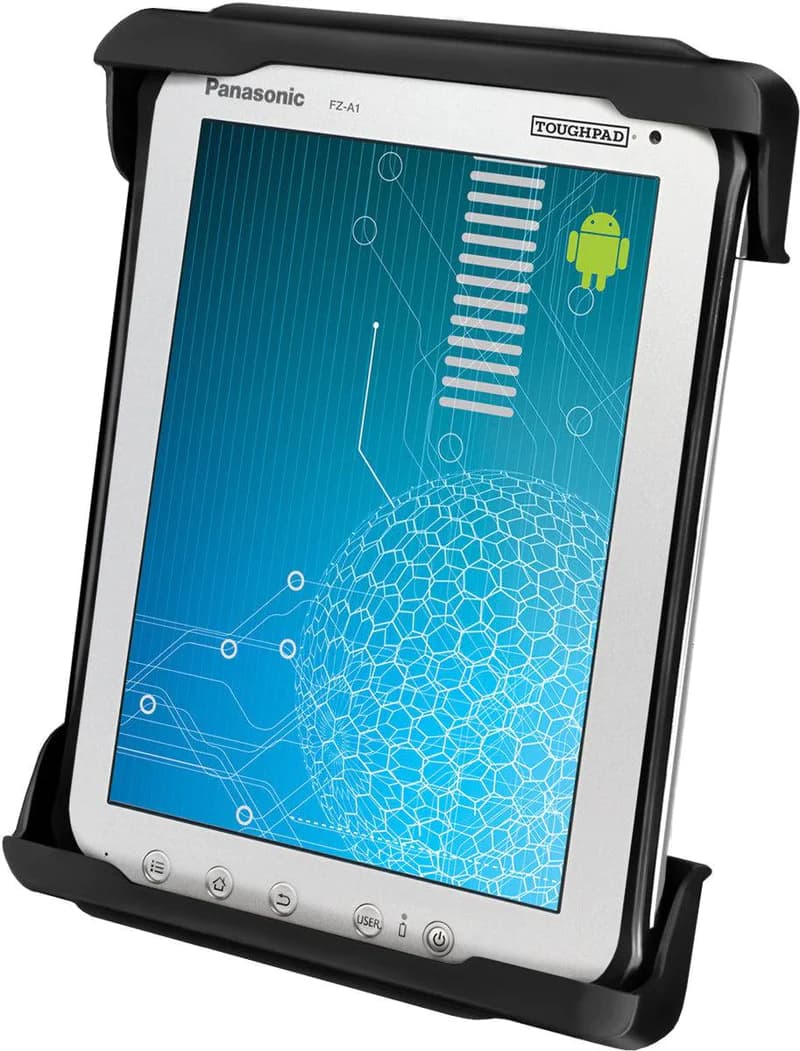

RAM® Tab-Tite™ Tablet Holder for Panasonic Toughpad FZ-A1 + More - RAM-HOL-TAB10U

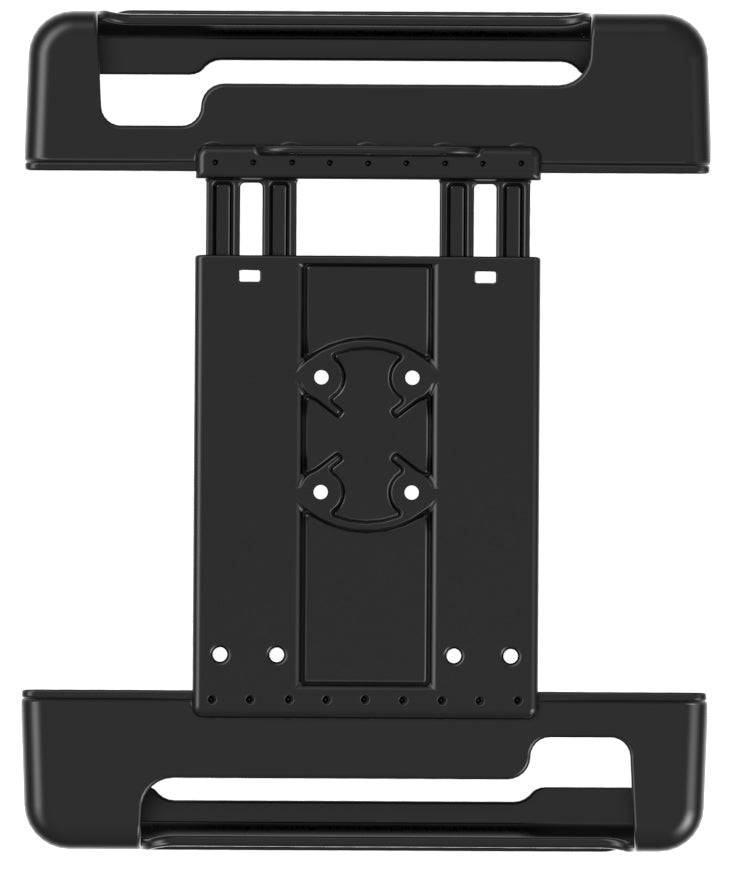

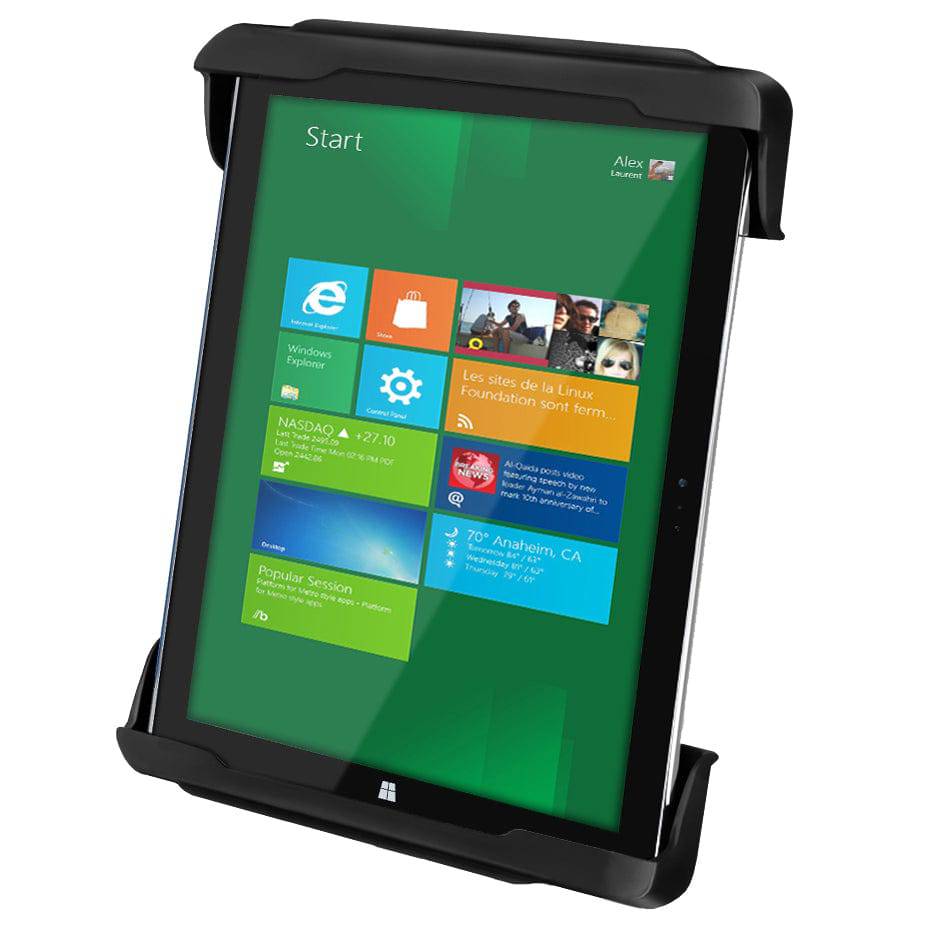

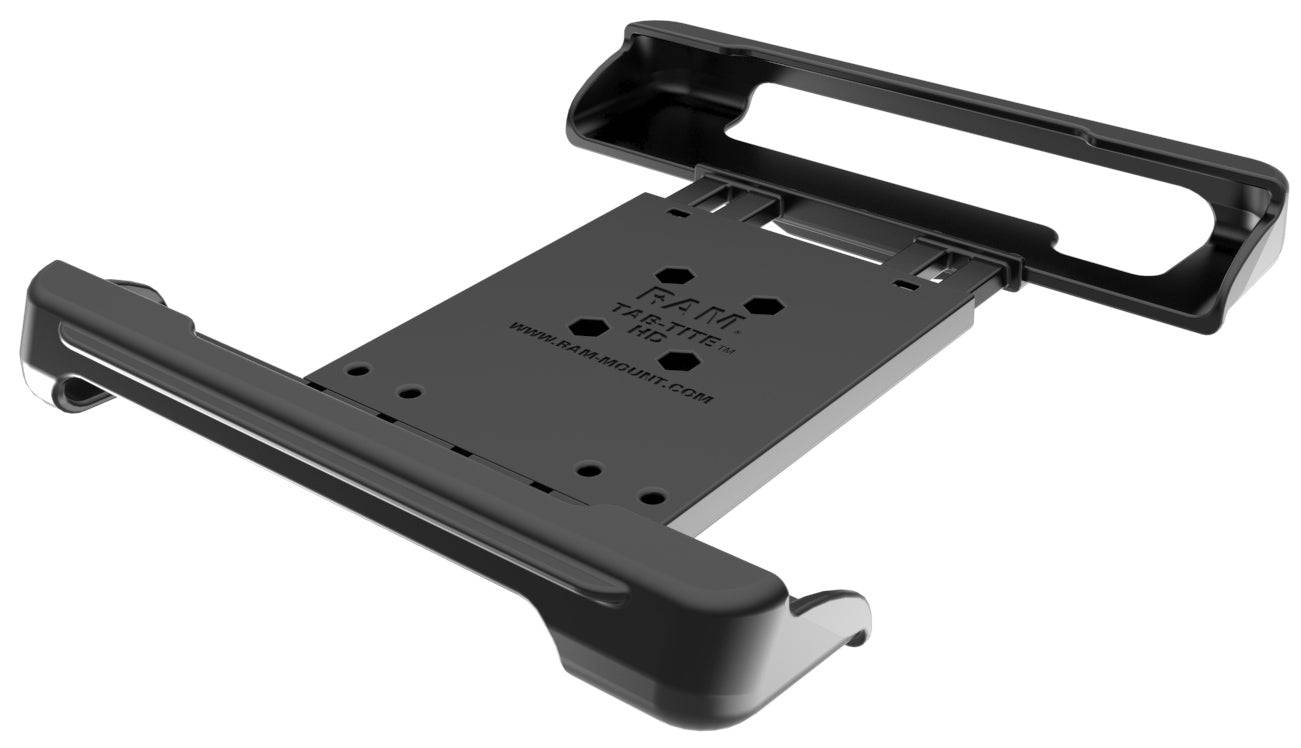

 The spring loaded cradle is durable and allows for easy removal or insertion of your tablet. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

With a full complement of compatible mounts, you are sure to find the perfect solution for all your mobile needs. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Please see the compatible devices for known devices that fit in this cradle.

Cradle Dimensions:
Height: 9.75" to 12"
Width: 6.38" to 8.62"
Depth: 0.13" to 1"

Features:
1. Support cups contain open slots to accommodate for tablets of varying dimensions
2. Spring loaded for ease of removal and insertion of your tablet
3. Customize height of cradle for your tablet
4. Best usage in low vibration environments
5. Lifetime warranty

Material:
High Strength Composite

Note:
The "U" in the part number reflects product packaged in poly bag. Hardware included to attach to mount. The RAM-HOL-TAB10U will not work when using the optional tall corner guards, Smartcard reader, long life battery and/or rotating hand strap.

Weight:
0.7 lbs.

 Tab-Tite Assembly Guide - PDF

      Tab-Tite^™ Assembly

Compatible Mounts

RAM Universal No-Drill™ RAM POD HD™ Vehicle Mount With Double Socket Arm & 2.5" Round Base AMPs Hole Pattern - RAM-316-HD-202U

RAM Yoke Clamp Mount With Double Socket Arm And Round Base Adapter - RAM-B-121-202U

RAM Handlebar U-Bolt Mount & Round Base Adapter That Contains The AMPs Hole Pattern - RAM-B-149Z-202U

RAM POD 18" No-Drill™ Vehicle Mount With B Size 1" Ball On Round Plate With AMPs Hole Pattern - RAM-B-316-1-202U

RAM B Size 1" Ball On 2.5" Round Plates With AMPs Hole Pattern, Long Length Double Socket Arm - RAM-B-101U-C

RAM Twist-Lock™ Suction Cup Mount With Long Double Socket Arm And 2.5" Round Base That Contain The AMPs Hole Pattern - RAM-B-166-C-202U

RAM Large Tough-Claw™ Base With Double Socket Arm And 1.5" Round Base Adapter - RAP-401-202U

Adapter Plates

RAM® Short Accessory/Display Bracket - RAM-DIS-103-1U

RAM Tab-Tite™ Cradle (2 qty) Cup Ends - RAM-HOL-TAB10-CUPSU

RAM® Universal Tab-Tite™ Backplate - RAM-HOL-ACU
