RAM-HOL-TAB36U
Out of Stock
( Chat Live to get an ETA )

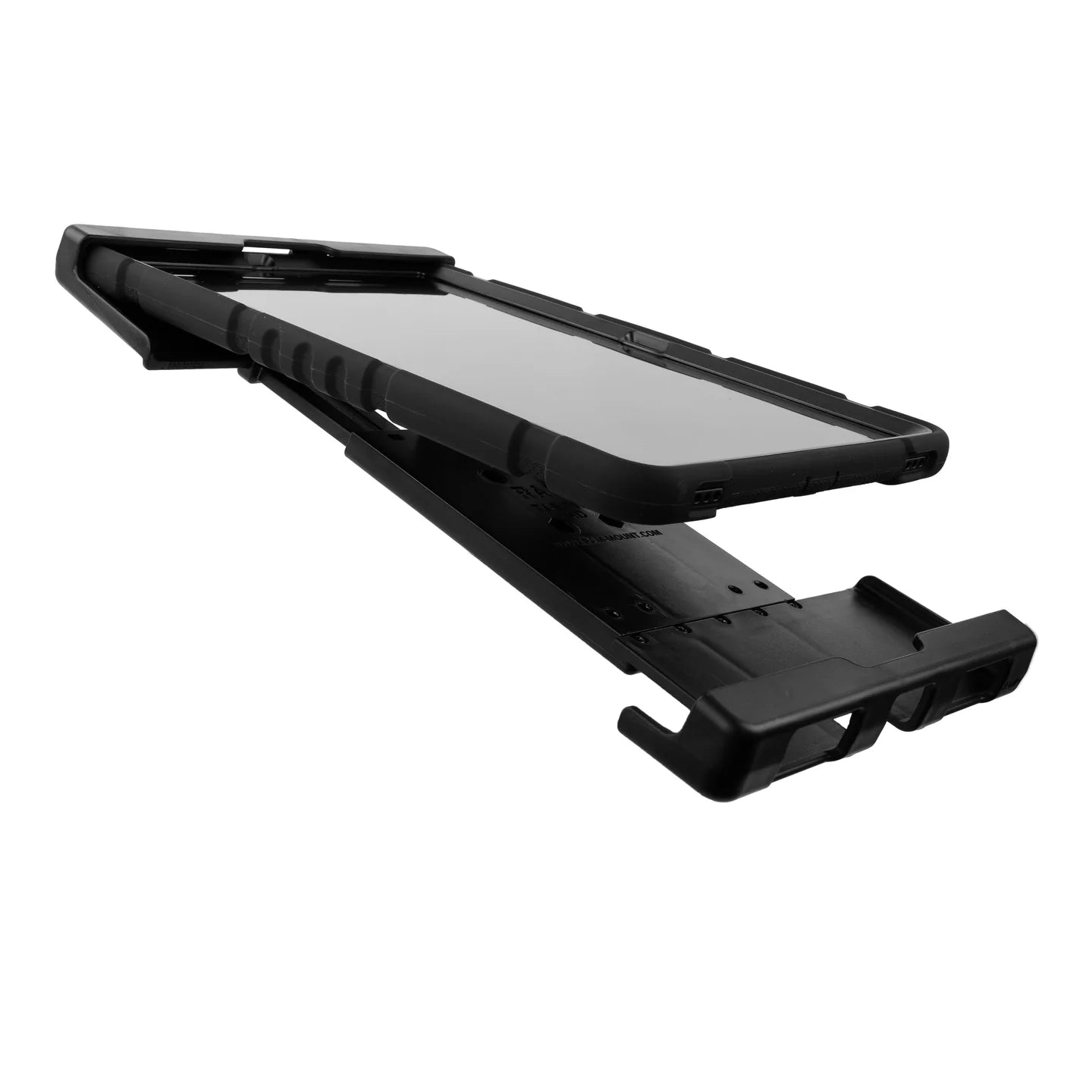

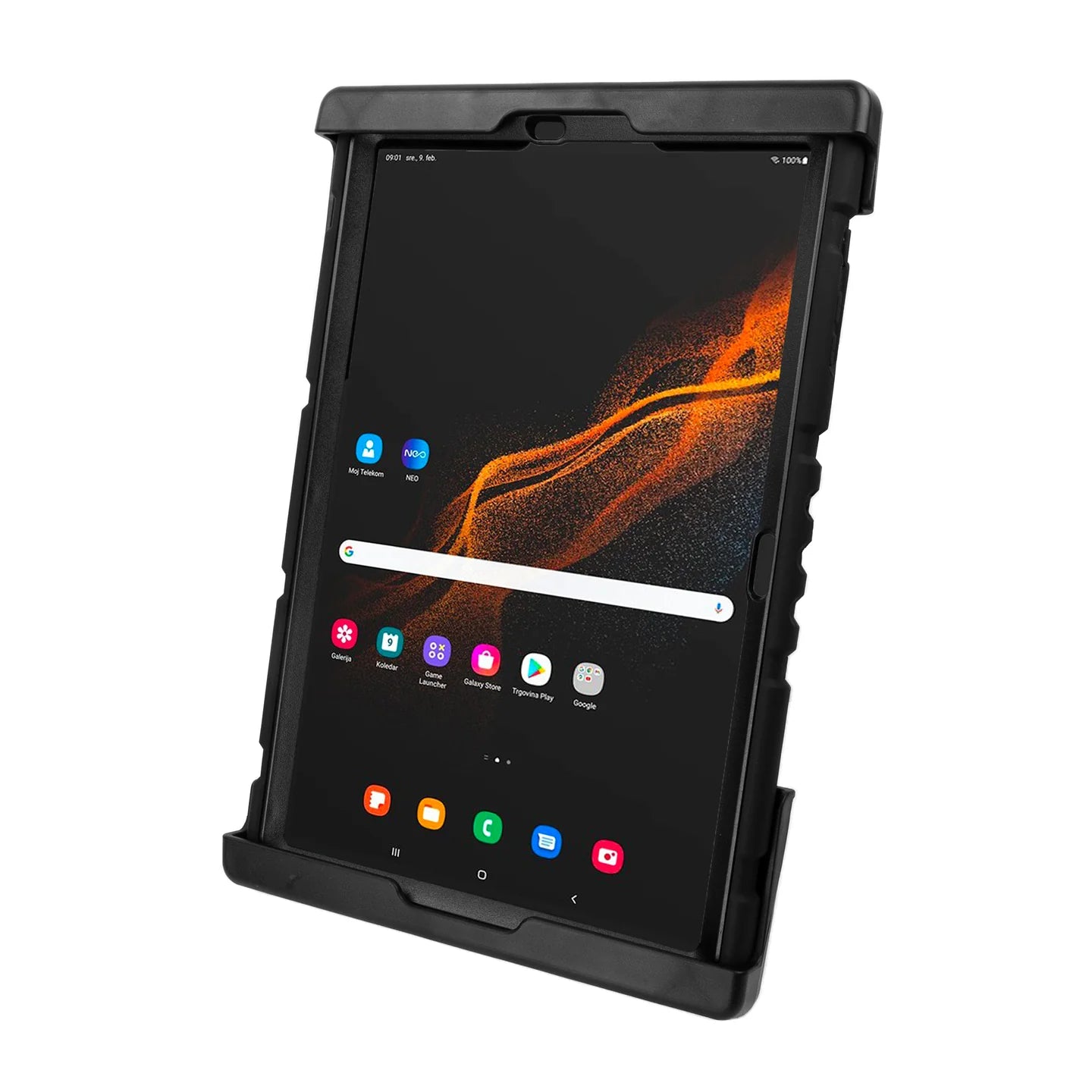

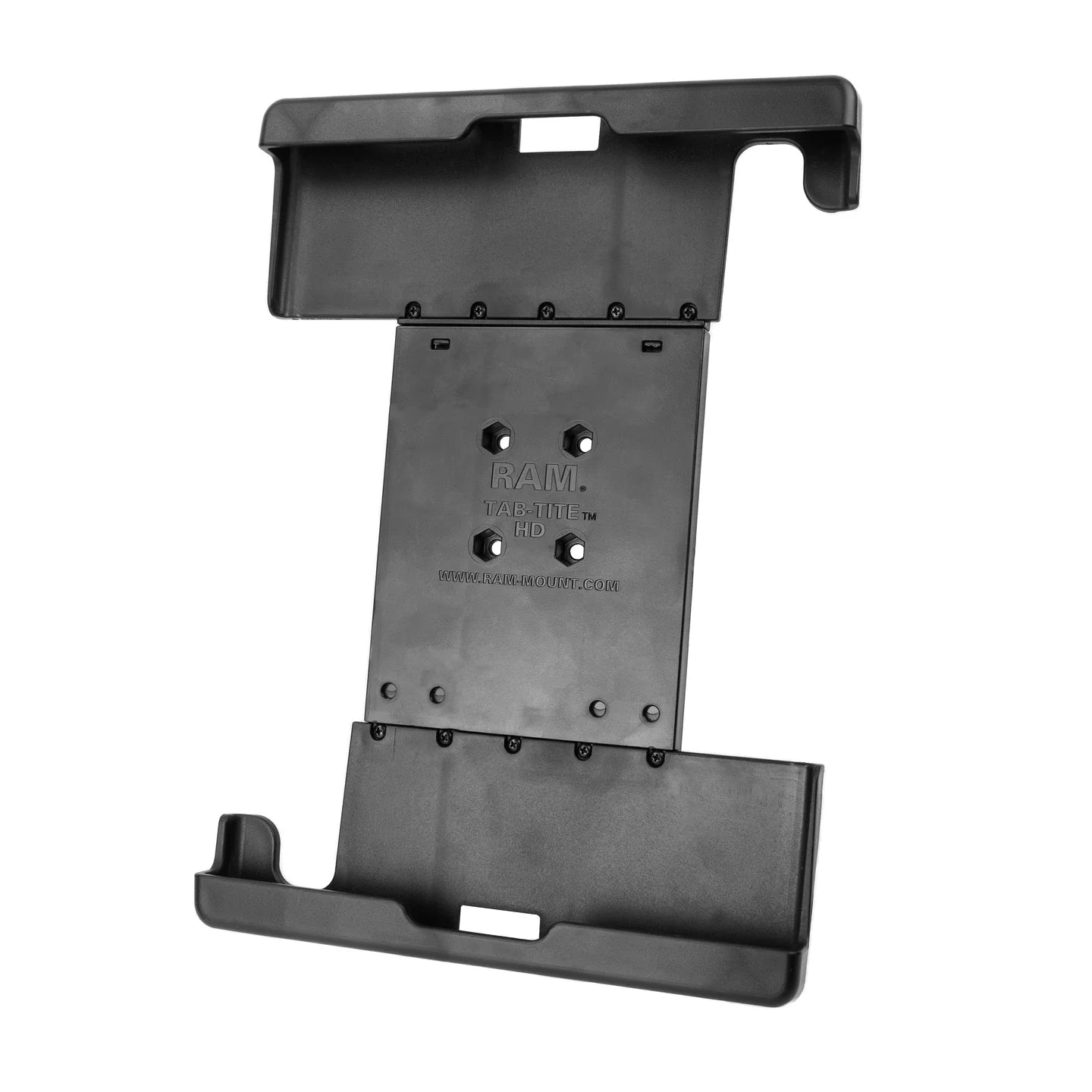

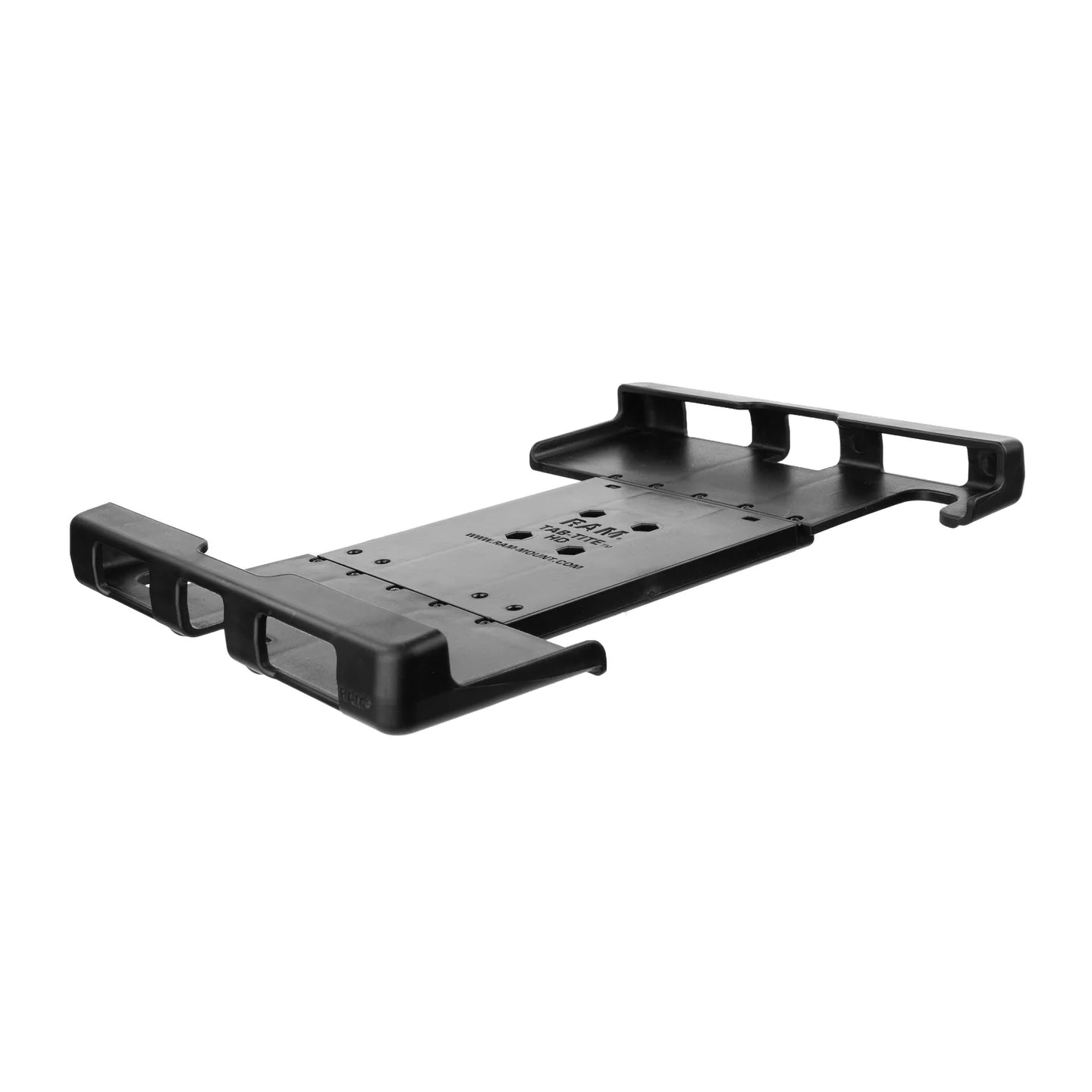

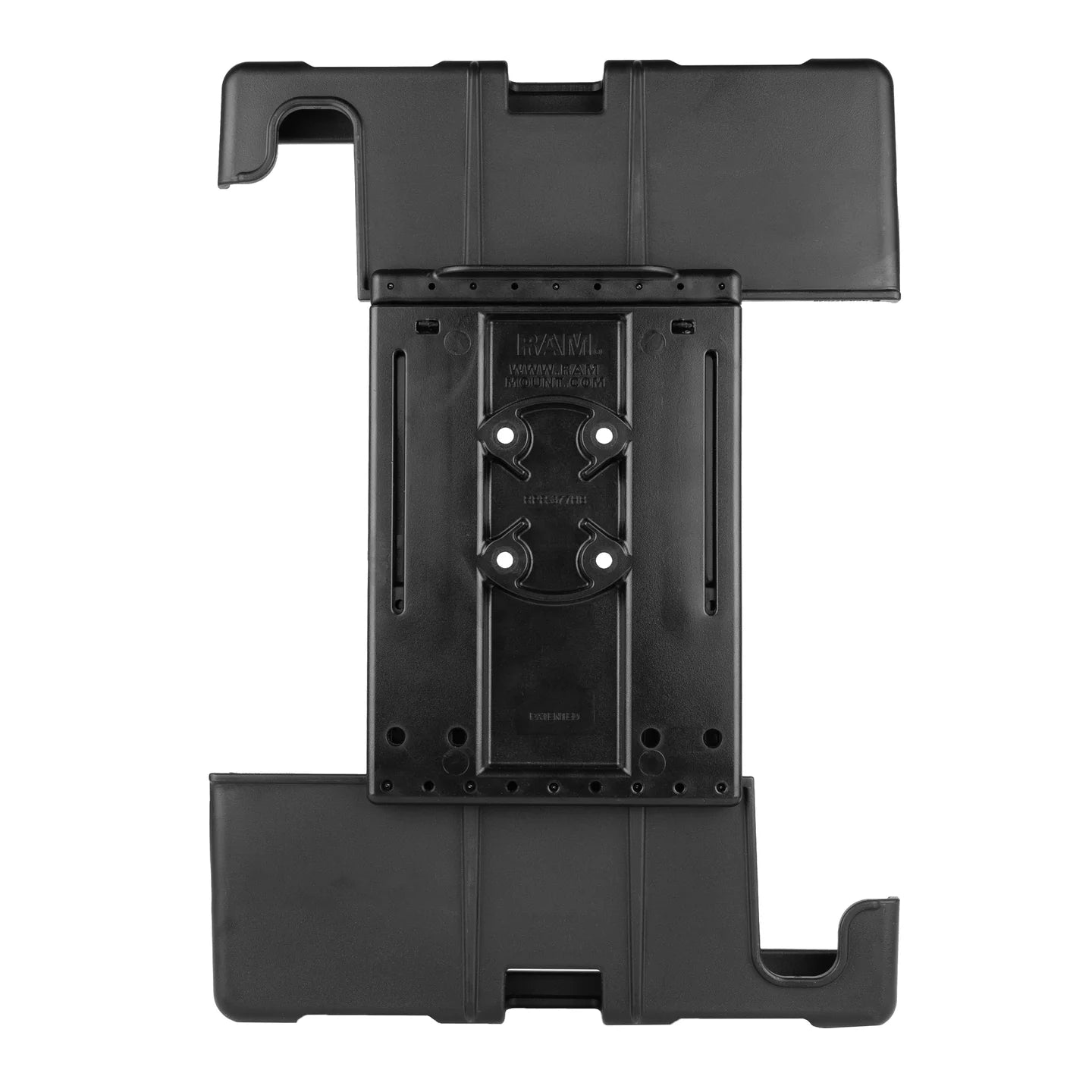

The RAM® Tab-Tite™ Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case (RAM-HOL-TAB36U) is a spring-loaded, quick-release device holder. The spring-loaded design makes it easy to insert and remove your tablet while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. This holder is compatible with the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case. FEATURES Spring-loaded holder secures the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case; interchangeable end cups allow you to modify the holder when upgrading devices Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty (4) #8-32 x 5/8" Machine Screws HOLDER DIMENSIONS HOLE PATTERN MATERIALS WEIGHT Galaxy Tab S9+ with Case Galaxy Tab S8+ with Case Galaxy Tab S7+ with Case Galaxy Tab S7 FE with Case RAM C Size 1.5" Ball Mount With 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U RAM® Drill-Down Dashboard Mount With Backing Plate - C Size Short - RAM-101-B-225B2U RAM Large Tough-Claw™ Base With Double Socket Arm And 1.5" Round Base Adapter - RAP-401-202U RAM 1.5" Ball Medium Length Double Socket Arm With 2.5" Round Base AMPs Hole Pattern) - RAM-103U RAM® Double Socket Arm With Round Ball Plate - RAM-103U-D RAM 1.5" Ball Short Length Double Socket Arm With 2.5" Round Base (AMPs Hole Pattern) - RAM-103U-B RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U RAM 1.5" Track Ball™ With T-Bolt Attachment - RAP-354U-TRA1 RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U This holder is intended for larger, heavy duty cases. Thin or light duty cases may sit relatively loosely in the holder. For a better solution to support lighter duty cases, see RAM® X-Grip® option RAM-HOL-UN11U. Instructions
Description
HARDWARE INCLUDED
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Height Range: 11.5" - 14"
Max Width: 8.125"
Max Depth: .79"
4-Hole AMPS: 1.181" x 1.496"
High strength composite
0.4 lb Compatibility
Components
Mounting Options
Accessories Additional Information
If your case has a built-in hand strap or kickstand, offset risers may be required: RAM-HOL-TAB-RISER2U.
