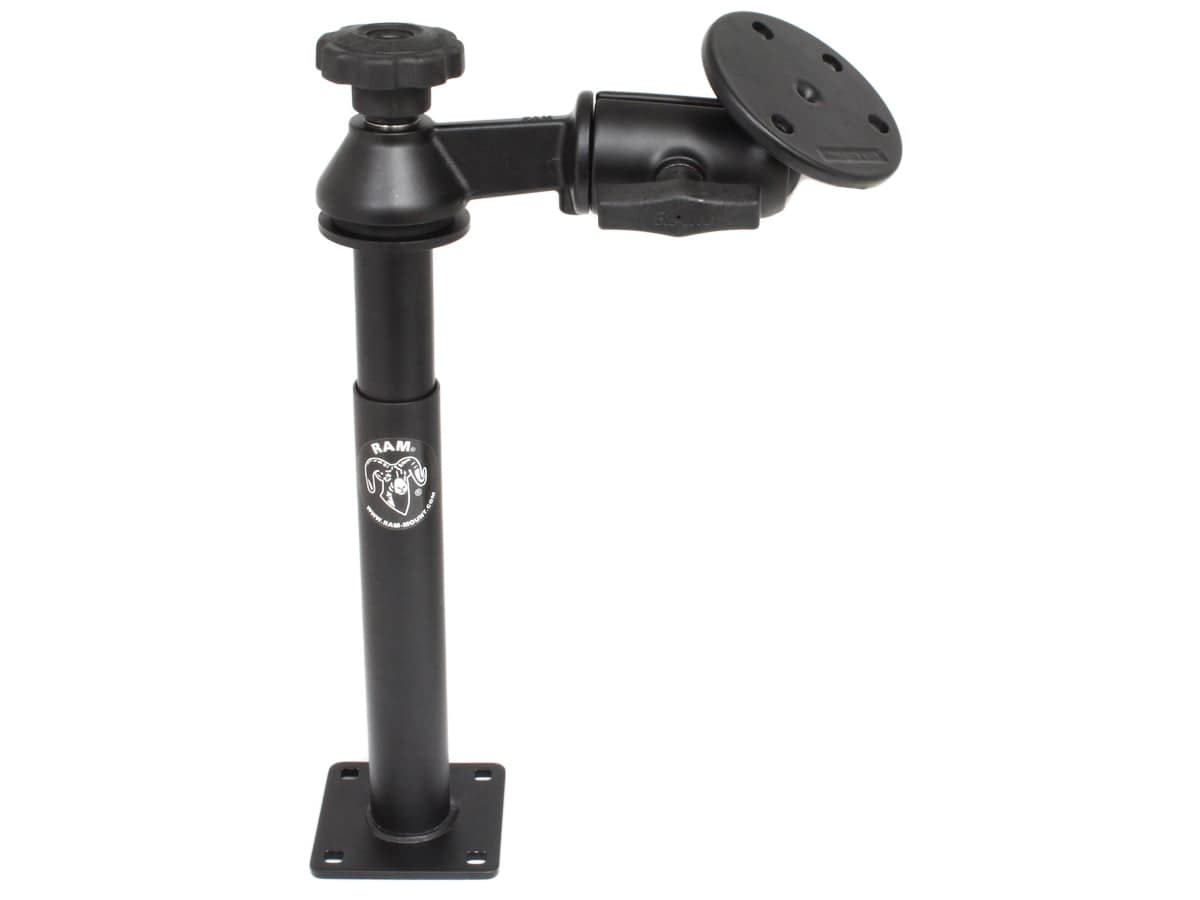

RAM® Tele-Pole™ with 8" & 9" Poles, Single Swing Arm & Large Round Plate - RAM-VP-SW2-89-240

The RAM-VP-SW2-89-240 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 3.68" round base. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combinded, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The length of the double swing arm is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock™ Powered Docking Stations.

HARDWARE INCLUDED

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

PRODUCT DIMENSIONS

Minimum Height: 16.3"
Maximum Height: 21.3"

HOLE PATTERN

Tele-Pole: 2.625" x 2.625"
Round Plate: See Drawing

BALL/SOCKET SIZE

C Size (1.5")

MATERIALS

Powder coated steel
Marine-grade aluminum

PACKAGING TYPE

Box

WEIGHT

6.5 lbs.

 Upper Tele-Pole Assembly Guide - PDF

 RAM 9" Long Lower Female Tele-Pole™ - RAM-VP-TBF9U

RAM 8" Long Top Male Tele-Pole™ - RAM-VP-TTM8U

RAM Single Socket Swing Arm With Open Single Socket For 1.5" Balls - RAM-VB-110-5NBU

RAM 3.68" Round Base with 1.5" Ball - RAM-240U
