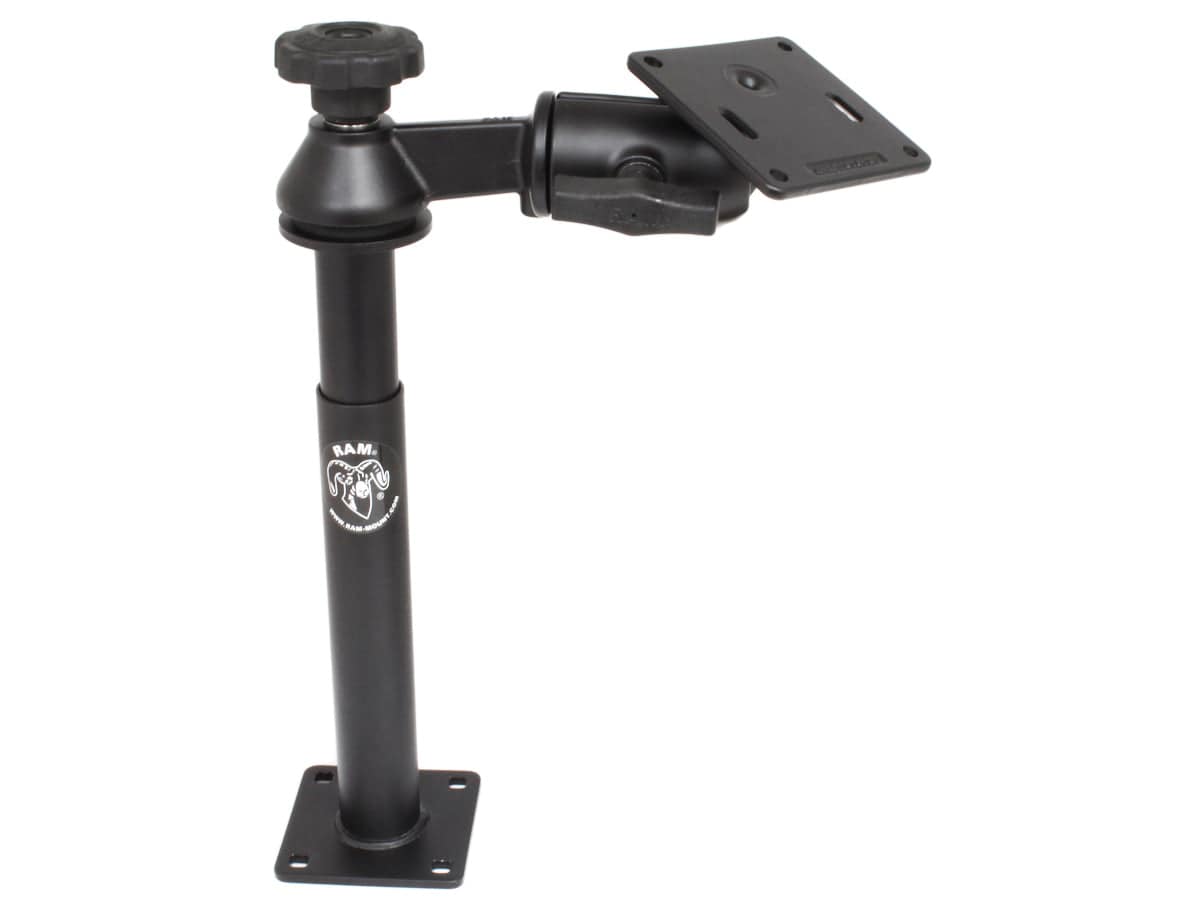

RAM® Tele-Pole™ with 8" & 9" Poles, Swing Arm & 75x75mm VESA Plate - RAM-VP-SW2-89-2461

The RAM-VP-SW2-89-2461 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 3.625" square base that contains the VESA hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The 3.625" square base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.

HARDWARE INCLUDED

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

PRODUCT DIMENSIONS

Minimum Height: 16.3"
Maximum Height: 21.3"

HOLE PATTERN

Tele-Pole: 2.625" x 2.625"
VESA Plate: See Drawing

BALL/SOCKET SIZE

C Size (1.5")

MATERIALS

Powder coated steel
Marine-grade aluminum

PACKAGING TYPE

Box

WEIGHT

6.5 lbs.
