RAM-DOCK-HEATER1-DU
More on the way!
( Chat Live to get an ETA )

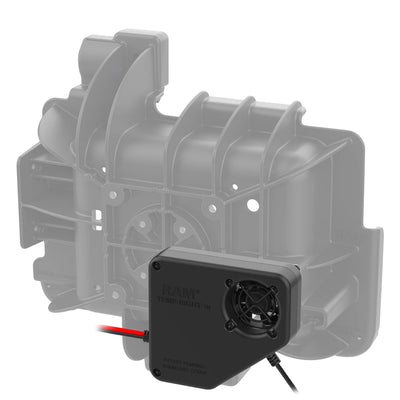

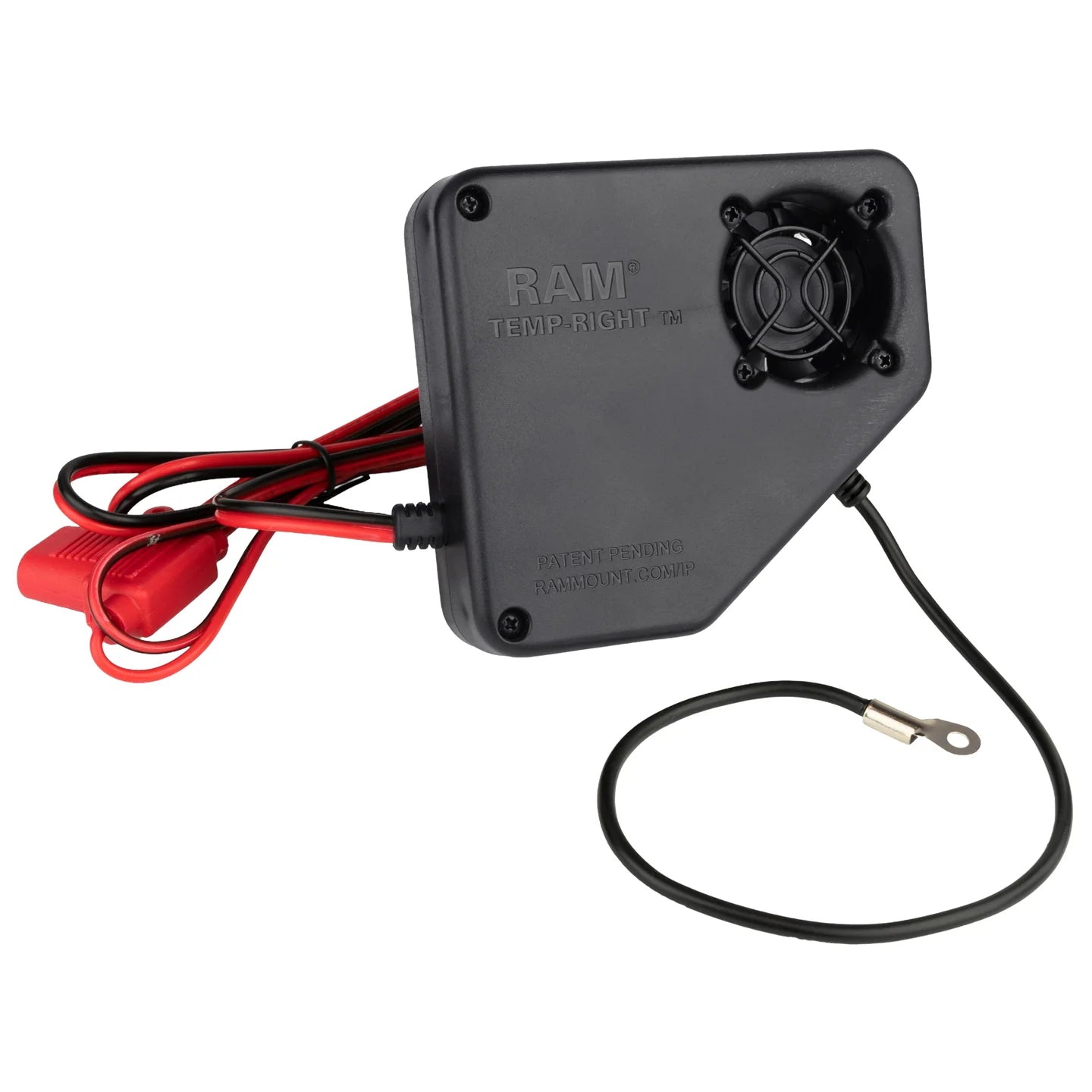

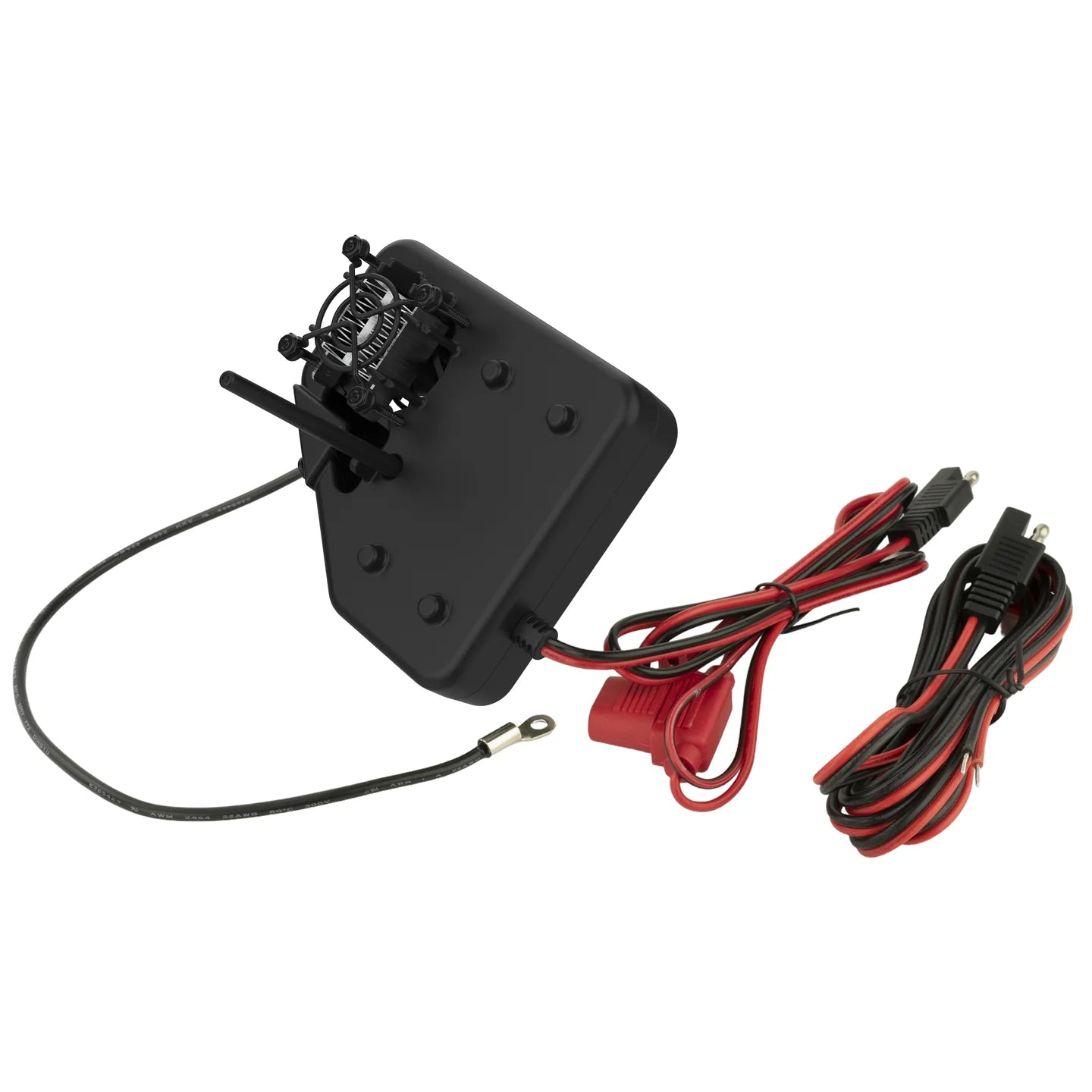

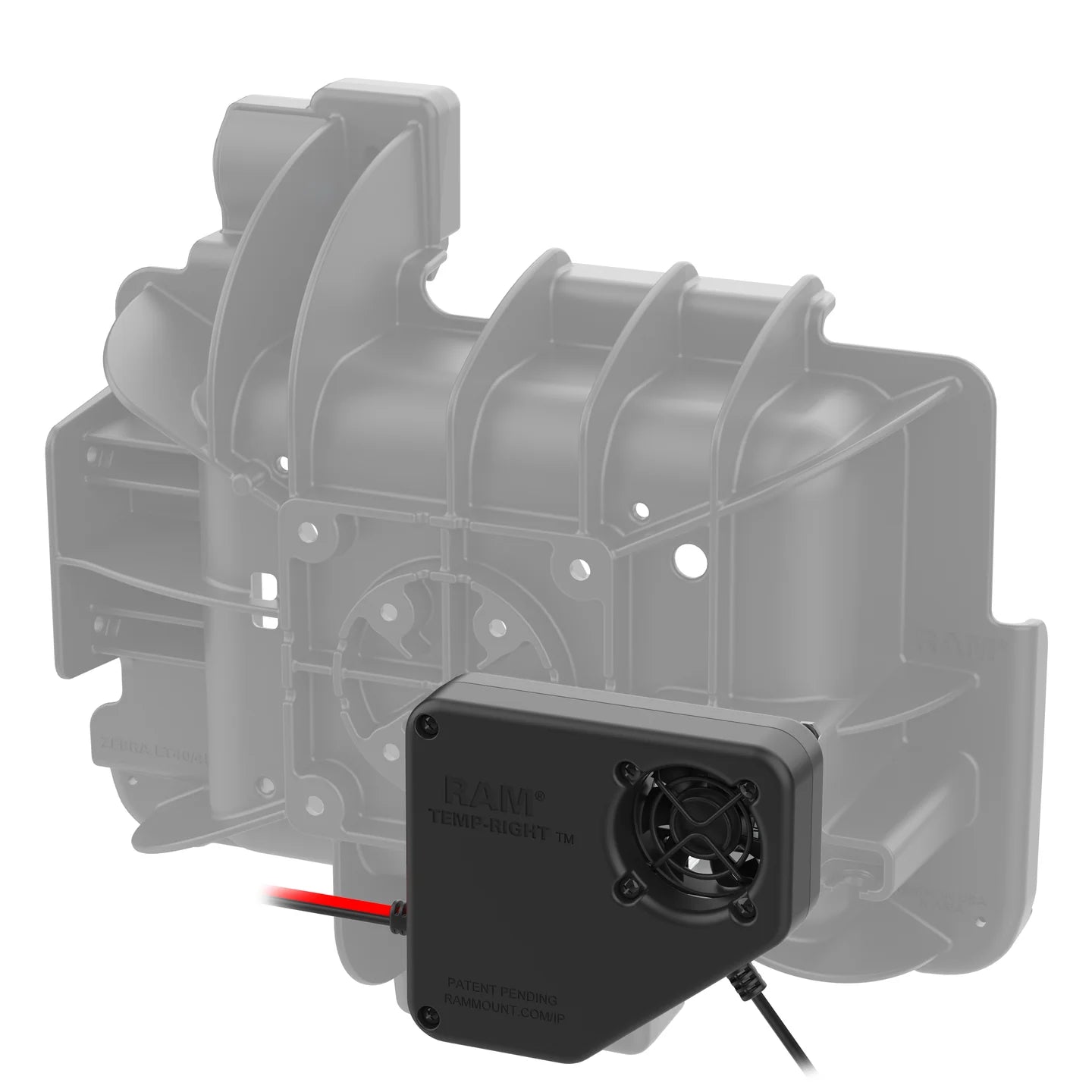

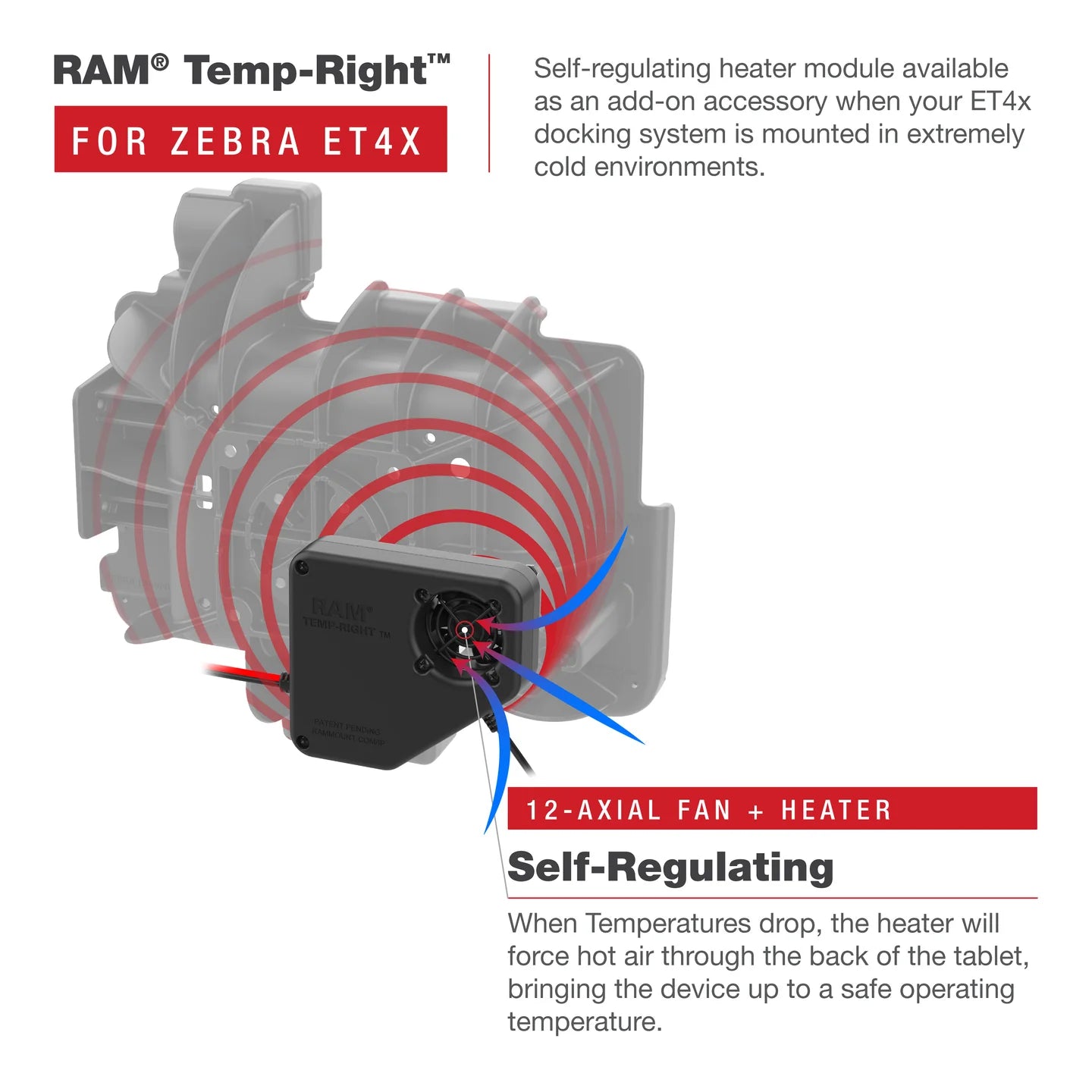

The RAM® Temp-Right™ Dock Heating Module for Zebra ET4x tablet docks (RAM-DOCK-HEATER1-DU) is a self-regulating heater module available as an add-on accessory when your ET4x docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan. The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right™. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases. FEATURES Heater module designed specifically for the Zebra ET4x RAM® and GDS® tablet docks Regulates the tablet's operating temperature by generating forced heat to the back of the tablet Integrated thermistor detects temperature and automatically activates the heater when temps reach below approximately 32-degrees Fahrenheit Built-in safety plunger deactivates the heater when the device is undocked Backed by a 3-year warranty HARDWARE INCLUDED MATERIALS INPUT VOLTAGE OUTPUT VOLTAGE POWER OUTPUT OUTPUT CURRENT INPUT CABLE LENGTH OPERATING TEMPERATURE STORAGE TEMPERATURE COMPLIANCE WARRANTY WEIGHT Zebra ET40 8" & 10" ET45 8" & 10"
Description
Assembly Hardware
High strength composite
Stainless Steel
11-16VDC
12V @ 7.5A
85W
7.5A max
1 Meter
-30°C to +70°C
-40°C to +85°C
WEEE and RoHS Compliant
3 year warranty
0.71 lb Compatibility
Accessories Additional Information
