      Home / Products / RAM® Tilt-N-Turn™ 45-Degree Bracket with Single Swing Arm - RAM-VB-TNT45-1
      RAM® Tilt-N-Turn™ 45-Degree Bracket with Single Swing Arm - RAM-VB-TNT45-1 - OC Mounts

      RAM-VB-TNT45-1

      RAM® Tilt-N-Turn™ 45-Degree Bracket with Single Swing Arm - RAM-VB-TNT45-1

      Out of Stock    ( Chat Live to get an ETA )

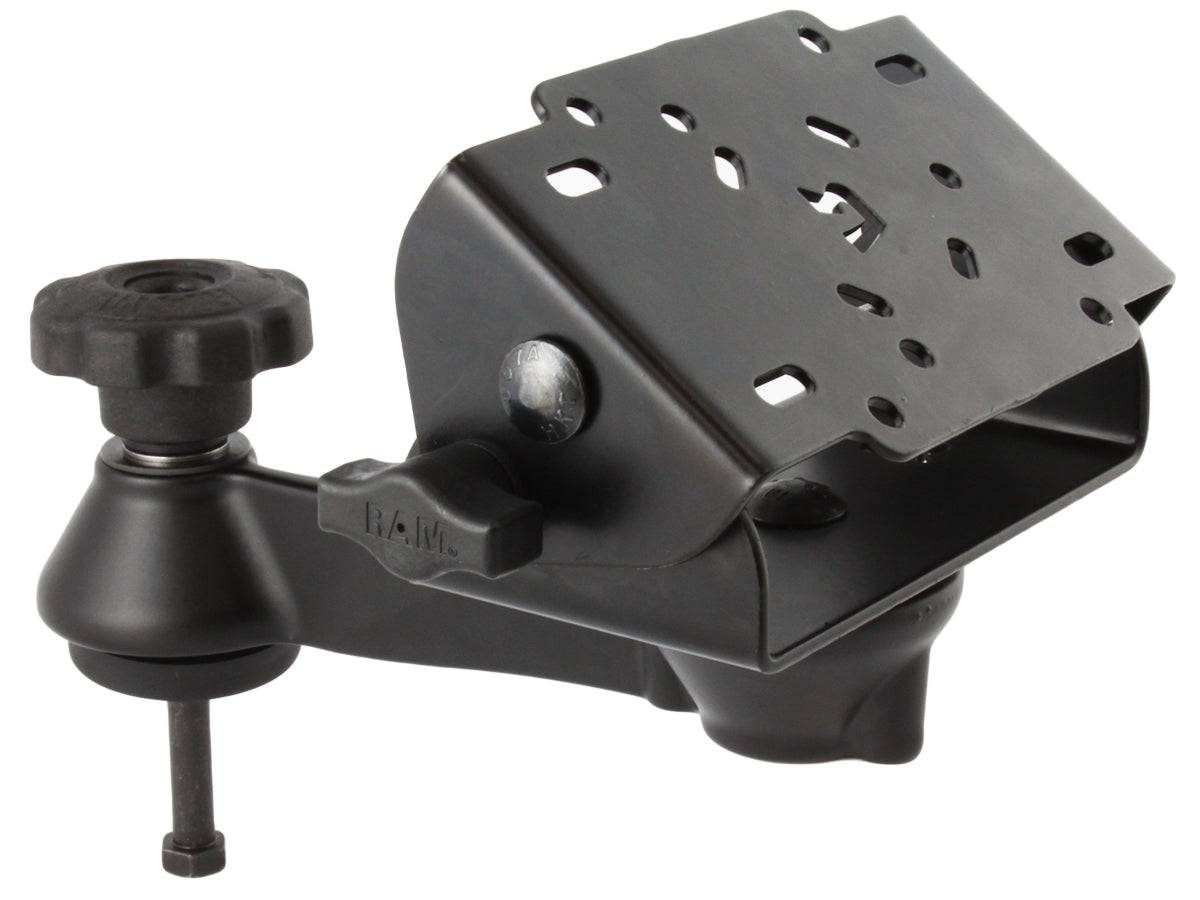

      The RAM-VB-TNT45-1, Tilt-N-Turn™ 45 degree motion attachment swing arm, consists of a steel plate on a single swing arm that has a tilt range of 45 degrees forward and back from the vertical position. The small range of tilt is designed to angle a connected RAM laptop cradle forward giving you a comfortable typing and viewing angle. The Tilt-N-Turn™ plate can spin in 360 degrees around on the swing arm end, and with a twist of the side lock knob, the attachment will tilt forward and back. Knowing that this product has countless applications, numerous hole patterns are built right in making the Tilt-N-Turn™ exceptionally versatile. The AMPS, 90 degree AMPS, 75 x 75MM VESA, 2” x 4”, and RAM’s own three hole at 120 degrees take the guess work out of whether this product will work for you. Whether you have and existing RAM system and want to integrate this product, or simply need the best mounting system available, consider RAM and yet another ergonomic product; this time with the Tilt-and-Turn™ feature.

      HARDWARE INCLUDED

      Assembly Hardware
      (1) 3/8"-16 x 1.5" Carriage Bolt
      (1) 3/8"-18 Lock Nut
      (1) 2" Rubber Washer
      (2) 5/16" Flat Washer

      MATERIALS

      Powder coated steel
      Marine grade-aluminum

      PACKAGING TYPE

      Poly Bag

      WEIGHT

      3.0 lbs.

       TILT-N-TURN & Swing Arm Assembly Guide - PDF
