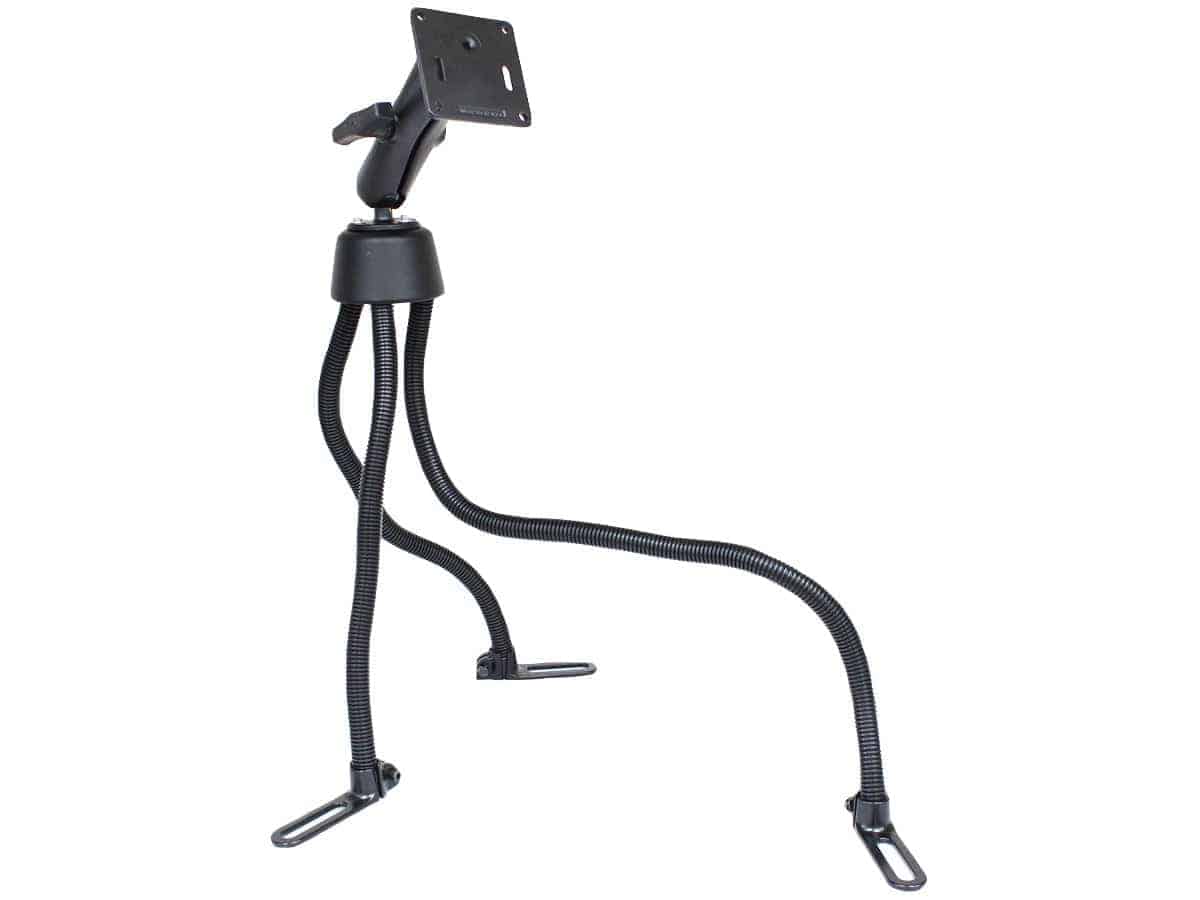

The RAM-316-3-2461U consists of the RAM POD III No-Drill™ vehicle base, 3 rigid aluminum rod legs, double socket arm, 2.5" round base that contain the universal AMPs hole pattern and 3.625" square base that contains the VESA hole pattern. The base of the mount connects to your seat rail without any drilling necessary. The rigid aluminum rod legs can be bent to position your device to its optimum viewing location. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The square base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.
Leg Lengths: 18", 20" and 30"
Installation Instructions: At right angles to the base of two legs are feet with mounting holes. Simply place the holes into the passenger seat mounting bolts and adjust the mount to the required height with the rigid aluminum rod legs. The third leg on the RAM POD III should also be adjusted to help support the mount. The rigid aluminum rod arms will hold everything you need safely and securely.
Material: Powder Coated Marine Grade Aluminum
Ball Size: 1.5" Rubber Ball Size
Note: The "U" in the part number reflects product packaged in poly bag.
