RAM Universal No-Drill™ RAM POD HD™ Vehicle Mount with Double Socket Arm - RAM-316-HD-NBU

Blending the best of versatility, strength and installation ease; the RAM POD HD^™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM ToughPod HD is an ideal solution for mounting tablets, small laptops and other similar devices. Requiring minimal space in the vehicle cab, it can be remove quickly without the use of tools. The versatility of the RAM ToughPod HD makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your tablet.

The RAM-316-HD-NBU will accommodate all 1.5" dia. ball bases and mounts.

To check compatibilitiy with your vehicle, review the dimensions of the RAM POD HD™ Foot in this reference guide:
RAM POD HD^™ Compatibility Guide

Low Profile, Low Cost and Extremely Robust:
- The minimalist design offers a low profile form factor while offering an extremely robust mounting platform
- Ideal mounting solution for fleet and service vehicle fleets with a varying range of vehicles. Stands up to the demands of field applications

Highly Versatile:
- Angle adjustment feature to compensate for varying floorboard angles
- Can be used as a horizontal or vertical flat surface drill-down mount
- aluminum post can be cut to size in order to accommodate varying vehicle configurations

Easy to Install and Remove:
- Works on most vehicles. Fast and simple installation, requires no drilling or modification to your vehicle

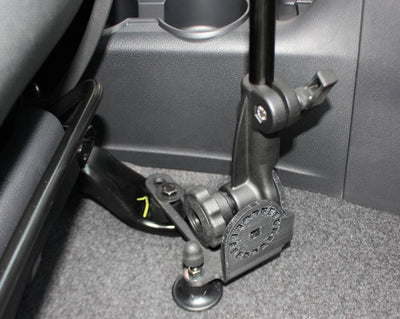

- Attaches using an existing seat rail bolt or seat track
- Remove the upper portion of the mount with the turn of one knob, creating valuable space in the cab when the mount is not in use

Pole Length:
Minimum: 18.75”
Maximum: 25.75”

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5" Rubber Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
4.85 lbs.

RAM Pod HD Installation Instructions - PDF

     RAM^® Pod HD^™ Installation

RAM® Pod HD™ Installation Guide - Rugged Vehicle Tablet Mount

Compatible Holders and Adapters

RAM® X-Grip® Cradle with 1.5" Ball for 7"-8" Tablets - RAM-HOL-UN8BCU

RAM® X-Grip® Large Phone/Phablet Cradle with 1.5" Ball - RAM-HOL-UN10BCU

RAM 75mm X 75mm VESA 3.625" Plate with 1.5" Ball - RAM-2461U

RAM 2.5" Round Plate with AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U

RAM Medium Length Double Socket Arm for C Size 1.5" Balls - RAM-201U

RAM No-Drill™ RAM POD HD™ Vehicle Base with 12" Aluminum Rod and C Size 1.5" Ball - RAM-316-HD-NABU
