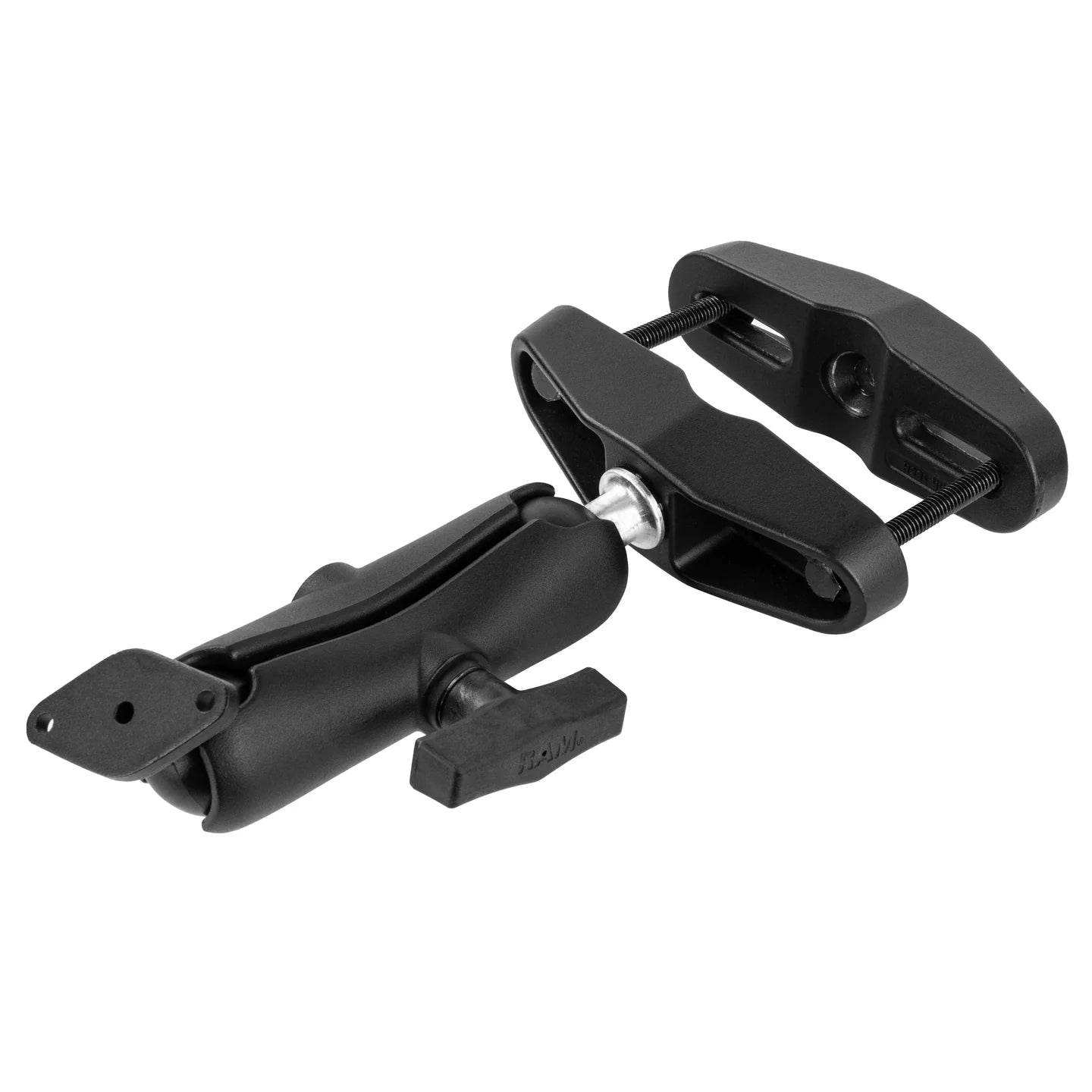

RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm - RAM-102U-247

The RAM^® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm (RAM-102U-247) is a mounting solution designed to secure large handheld devices to forklifts. This kit consists of one (1) double socket C size medium arm, one (1) diamond plate with C size ball, and one (1) square post clamp.

The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM^® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

FEATURES

• 2.43" x 1.31" diamond plate connects to RAM^® device holders containing the universal AMPS hole pattern

• Includes 4" clamping base for posts and a medium length, C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability

• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

HARDWARE INCLUDED
Assembly Hardware

CLAMP RANGE
1.75" - 4" width

SOCKET TO SOCKET LENGTH
4.66"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL SIZE
C Size (1.5")

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lb

MATERIALS
Marine-grade aluminum

WEIGHT
2.28 lb

RAM 2.43" X 1.31" Diamond Base With 1.5" - Ball - RAM-238U

RAM Medium Length Double Socket Arm For C Size 1.5" Balls - RAM-201U

RAM® Square Post Clamp Base For Posts 1.75" - 4" Wide - RAM-247U

INSTRUCTIONS

 Square Post Clamp Base Assembly Guide
