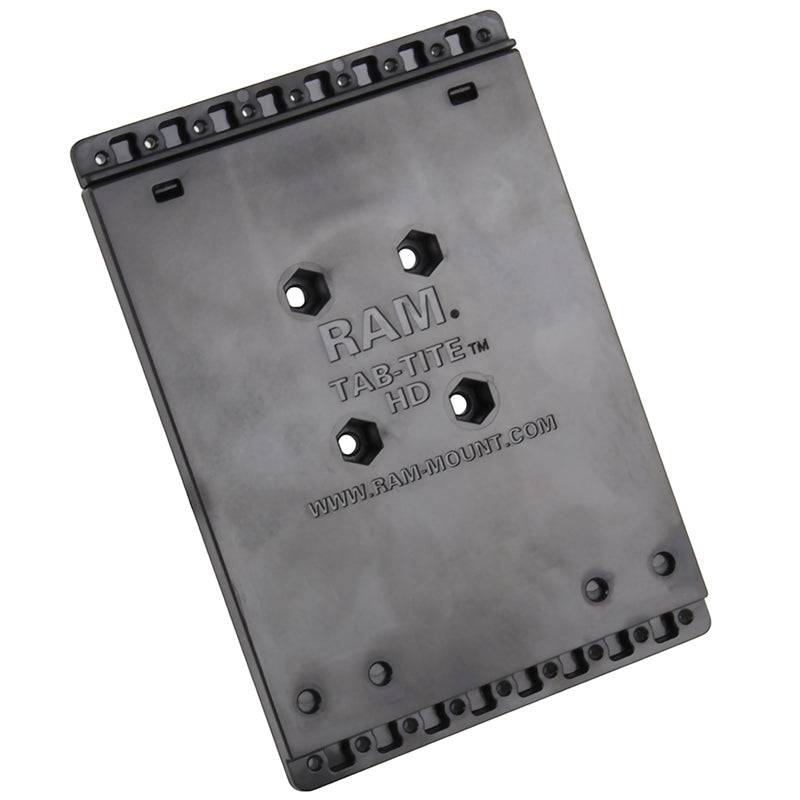

RAM® Universal Tab-Tite™ Backplate with Fixed Mounting Screws - RAM-HOL-ACNU

The RAM® Tab-Tite™ HD spring loaded backing plate is known for providing quick and easy insertion and removal of a tablet but sometimes you want to leave your device where it’s at. The RAM-HOL-ACNU is an alternative configuration that allows the user to fix their tablet in place. This configuration is ideal for high vibration environments or use cases where the tablet needs to remain fixed in the vehicle with a low profile mount for a low cost.

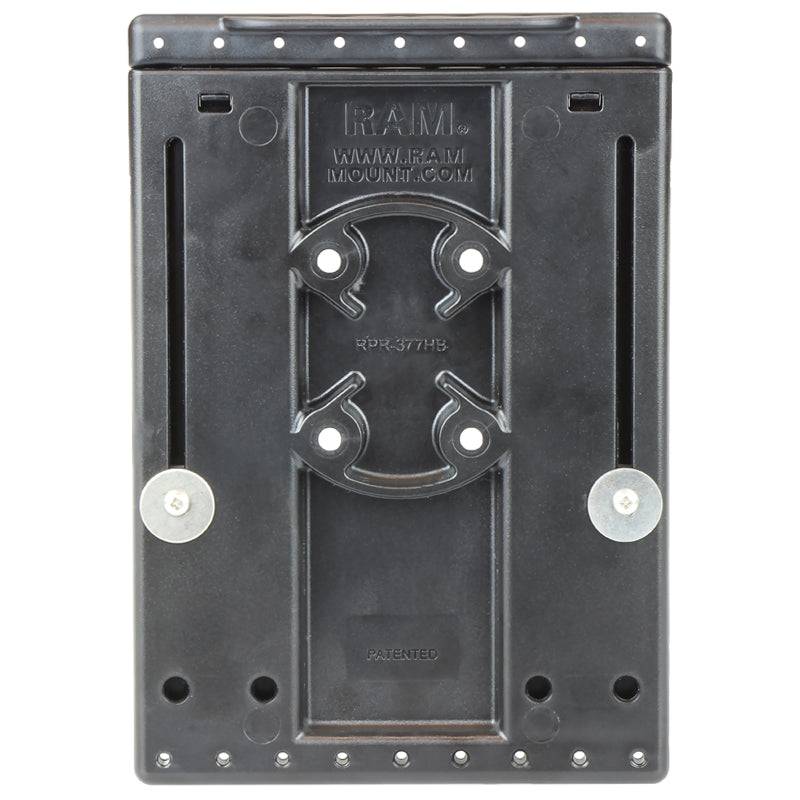

During the assembly process, two nuts are inserted into the slots on the back of the Tab-Tite™ HD. The included Phillips screws are attached to the nuts and tightened, fixing the spring adjustment feature in place.

The RAM® Tab-Tite™ HD is compatible with over 40 sets of end cups to accommodate a wide range of tablets, with or without a case. The Tab-Tite™ HD is compatible with GDS® end cups allowing you to charge and secure your device.

Features:
1. Compatible with all Tab-Tite^™ and GDS^® end cups to support tablets for various sizes
2. Low profile fixed mounting option
3. Includes Phillips screws to fix your tablet in place
4. Easily upgrade to new devices by switching the end cups

Material:
High Strength Composite

Note:
The "U" in the part number reflects product packaged in poly bag. Hardware included to attach to interchangeable TAB cups to the backplate.

Weight:
0.35 lbs.

 RAM Tab-Tite Fixed Screws Assembly Guide - PDF
