No Drill Laptop Mount for 2000-2012 Ford Ranger, 2000-06 Explorer Sport Trac - RAM-VB-113-SW1

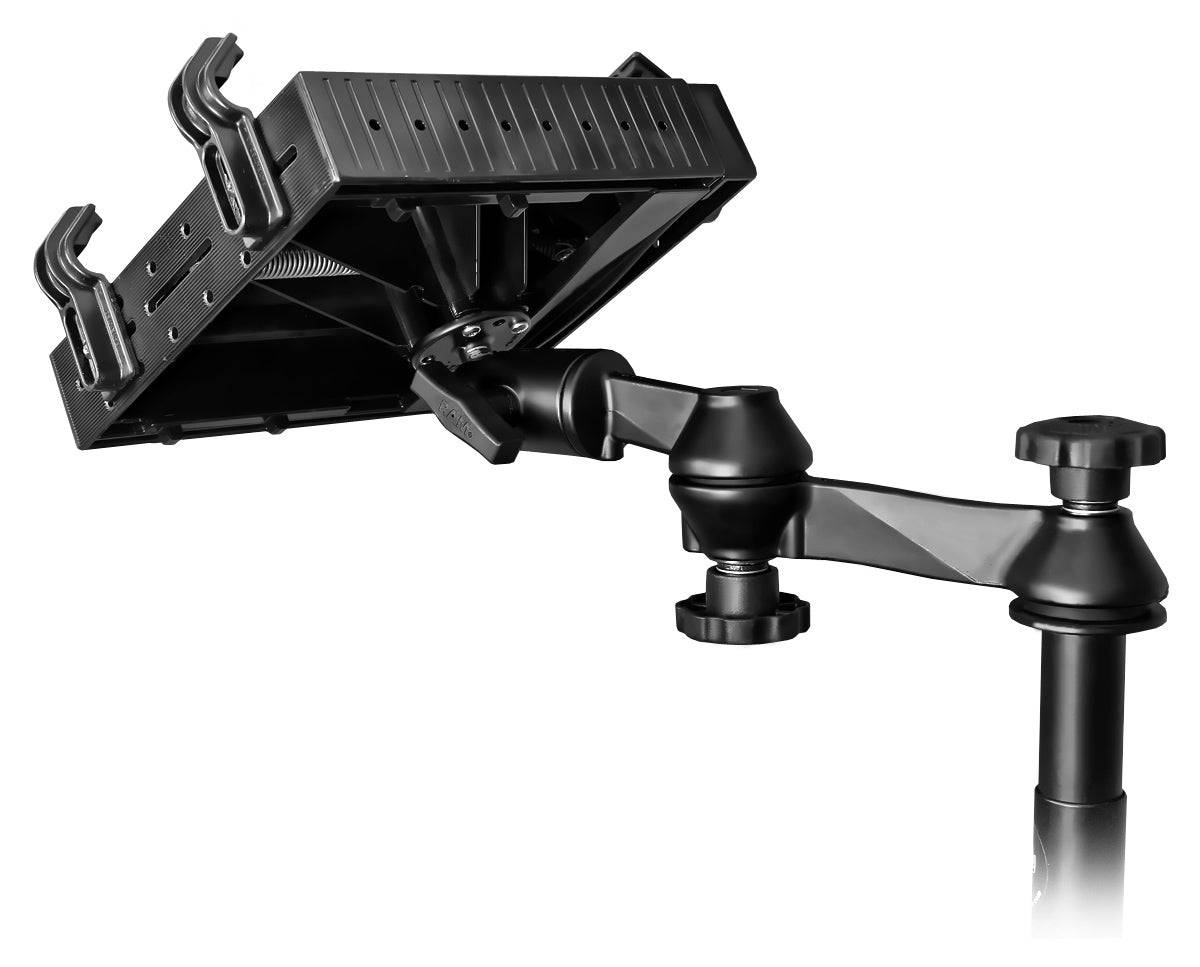

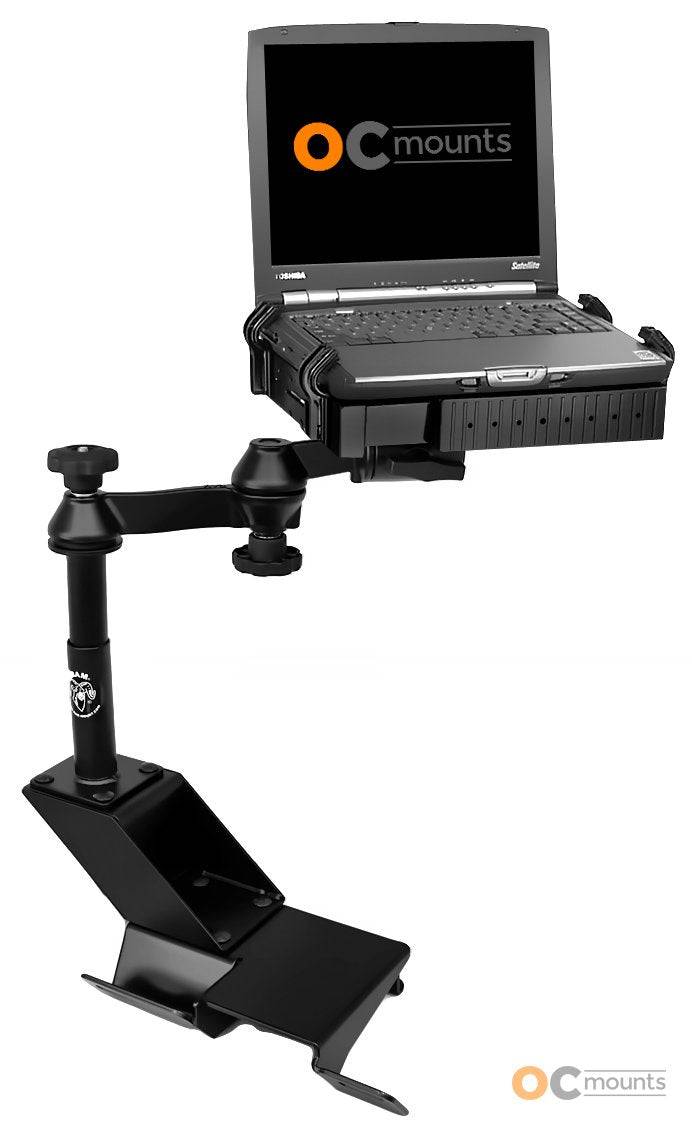

This No-Drill^™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Placement of Mount:
Passenger side floor board, on top of seat bracket

Drilling Requirements:
No - uses existing seat bolts

Seat Configuration:
Bucket/Bench

Material:
High Strength Composite and Powder Coated Steel

Notes:
If the Tough-Tray^™ Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-N-Motion^™ kit.

One 4” riser is included with this vehicle base. Riser allows optimized placement of mount with a minimal amount of intrusion of passenger leg space. Will not interfere with levers or factory installed consoles.

Weight:
17.0 lbs.

RAM-VB-113-SW1

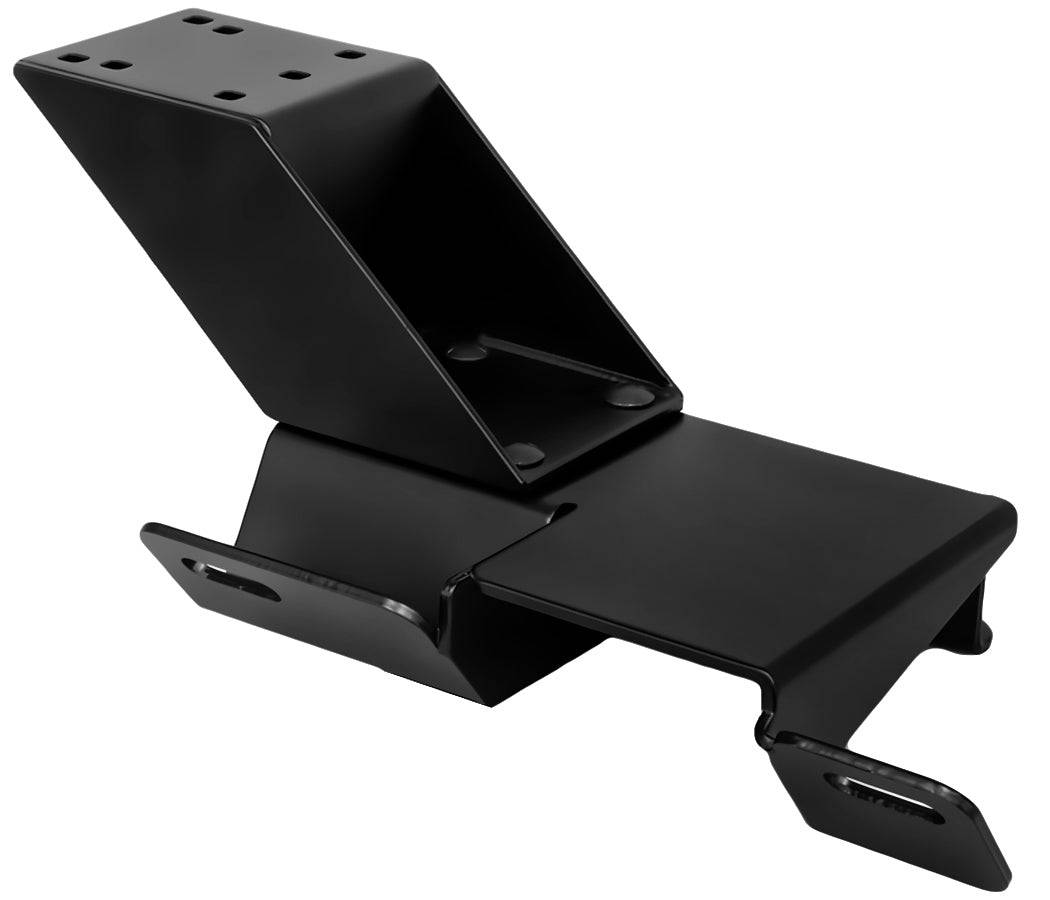

 No-Drill™ Laptop Base for the Ford Ranger & Explorer Sport Trac - RAM-VB-113

&

 RAM 9" Long Lower Female Tele-Pole™ - RAM-VP-TBF9U

&

 RAM 8" Long Top Male Tele-Pole™ - RAM-VP-TTM8U

&

 RAM 12" Double Swing Arm with 2.5" Diameter Round Base - RAM-VB-110-1U

&

 RAM Universal Laptop Tough-Tray™ Cradle - RAM-234-3
