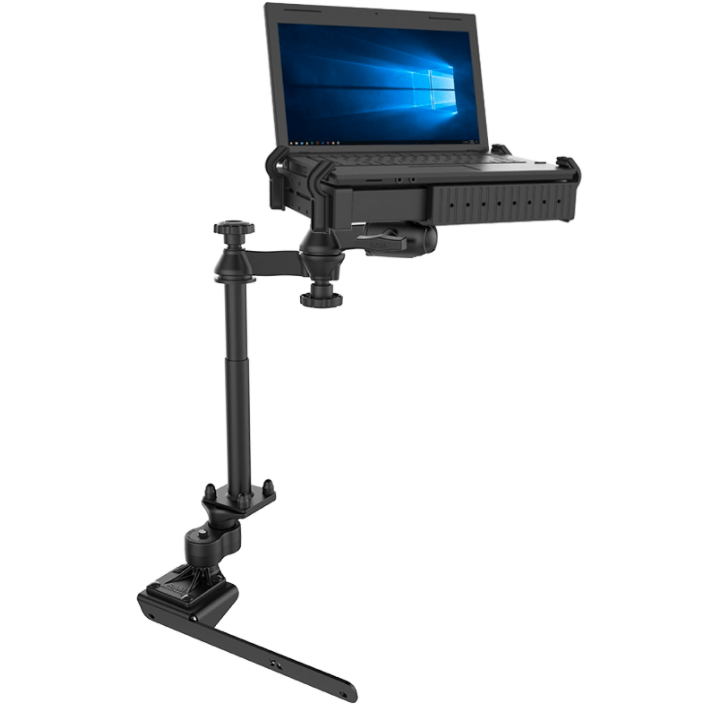

No Drill Laptop Mount for 2012-2024 Ram 2500-5500 & Other Ram Truck - RAM-VB-178A-SW1

The RAM-VB-178A-SW1 is a rugged Ram truck laptop mount that installs quickly and easily, securing your laptop no matter where the road takes you. Just use the hardware already attached to your passenger seat, where the seat rail frame connects to the floorboard.

No drilling is required. The low-profile design ensures that the mount takes up minimal leg space, so there’s still plenty of room for your passengers. In addition, the base is designed to remain clear of all levers and console equipment.

Tough Features

• Compatible with laptops between 10” and 17”
• Includes the RAM Tough-Tray™, a spring-loaded tray that’s rugged and fully adjustable
• Attach and remove your laptop with ease and adjust the side-clamping arms as needed to accommodate the thickness of your laptop
• ***Compatible with the models below. (Click here if you have a new body 2019-2024 5th Gen RAM 1500)

Order Your Laptop Mount from RAM Mounts

This mount is made from high-strength composite and powder-coated steel, so you know it’s built to last. From the ball-and-socket joint to the varied hole patterns in the tray, every component is customizable to your needs, and we have it all here at OC Mounts. We’re an authorized RAM partner, and we offer competitive rates on the best mounts. Order your RAM laptop mount, and get free shipping on a truly rugged mount.

Hardware Included:
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers
Passenger side, front, where seat rail frame attaches to floor board.

Hole Pattern:
Seat Bolt Distance: 13.25" center to center

Seat Configuration:
Bucket

Material:
High Strength Composite and Powder Coated Steel

Notes:
Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)

If the Tough-Tray^™ Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-N-Motion^™ kit.

Weight:
15.0 lbs.

- RAM-VB-178A-SW1 Installation Instructions - PDF
- Tele-Pole Assembly Instructions - PDF
- Tough Tray Assembly Instructions - PDF
- Adjust-A-Pole Assembly Instructions - PDF

RAM-VB-178A-SW1

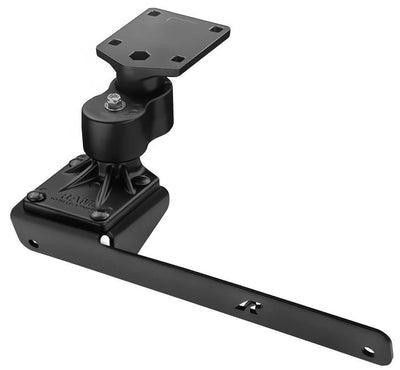

 No-Drill™ Laptop Base for the RAM 2500-5500 (12-24 RAM 2500-5500 and more) - RAM-VB-178A

 &

 RAM 9" Long Lower Female Tele-Pole™ - RAM-VP-TBF9U

&

 RAM 8" Long Top Male Tele-Pole™ - RAM-VP-TTM8U

&

 RAM 12" Double Swing Arm with 2.5" Diameter Round Base - RAM-VB-110-1U

 &

 RAM Universal Laptop Tough-Tray™ Cradle - RAM-234-3
