RAM® 12" Upper Flange Pole with Double Ball Mount - RAM-VP-TTMF12-101U-D

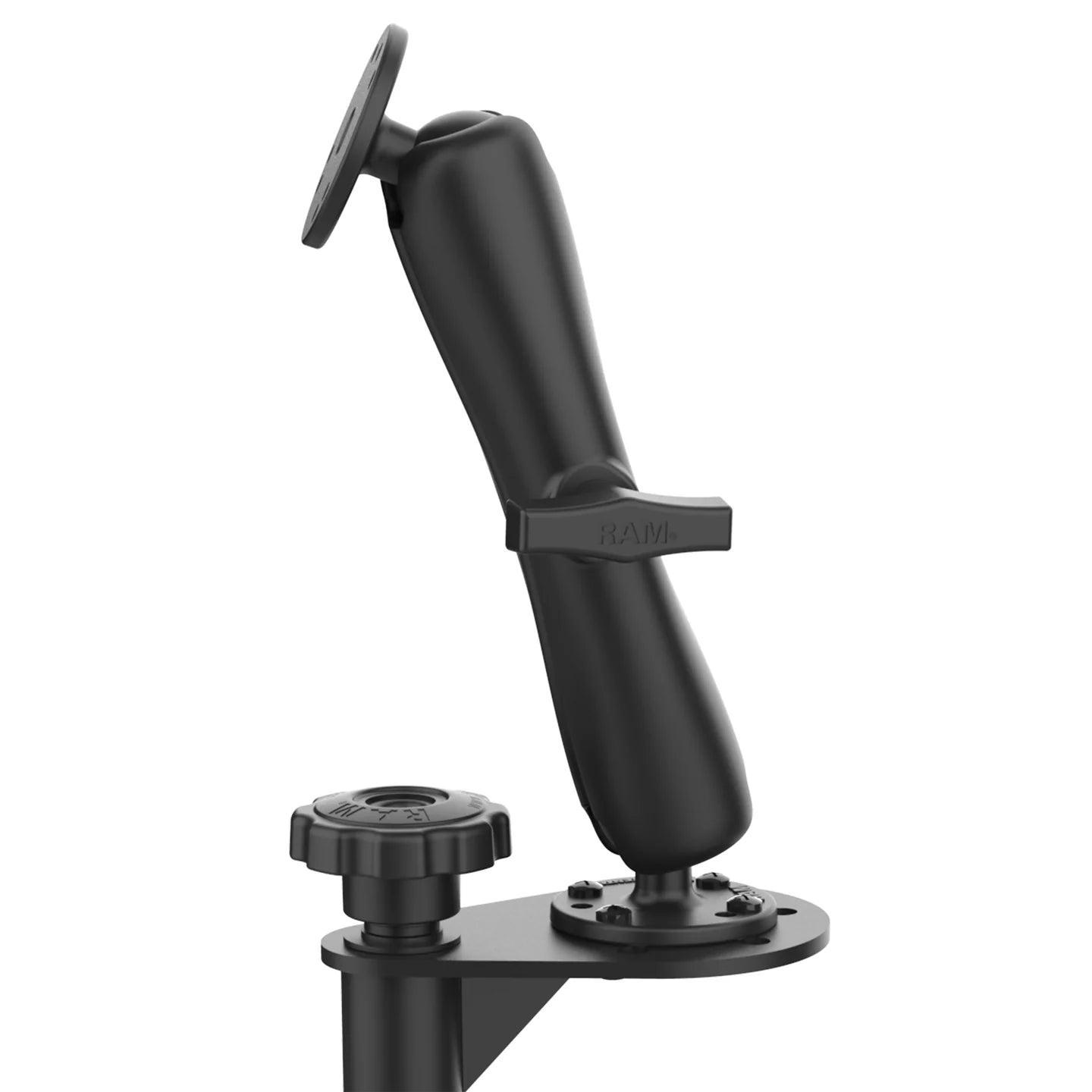

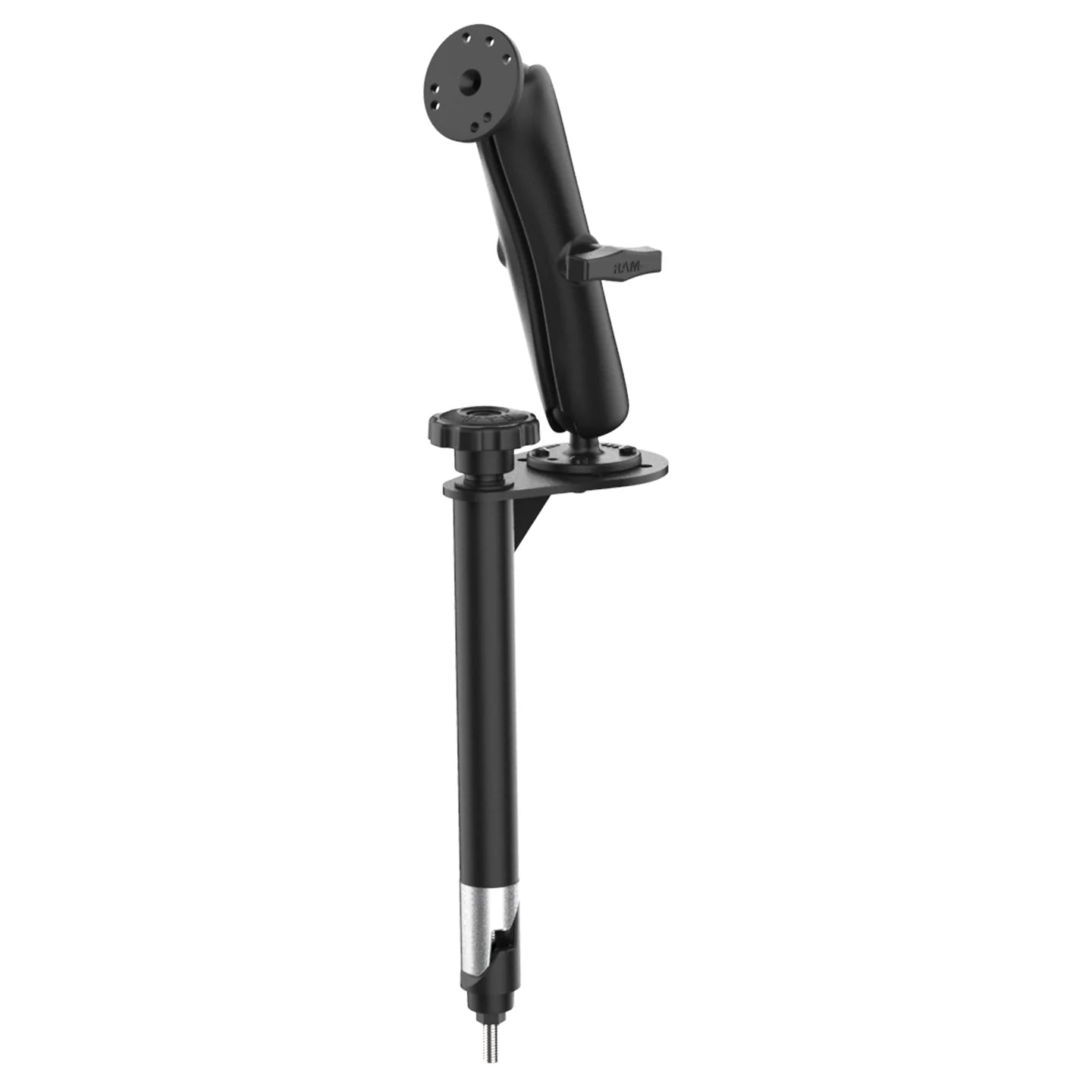

The RAM® 12" Upper Flange Pole with Double Ball Mount (RAM-VP-TTMF12-101U-D) consists of a 12" upper male Tele-Pole™ with a connection point for the 3-part ball and socket system. The 2.5" round ball features the universal 4-hole AMPS hole pattern to connect any RAM® device holder or GDS® Dock™. The Tele-Pole™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The Tele-Pole™ will connect to any RAM® vehicle base with a welded female Tele-Pole™.

• 12" pole installs onto any RAM® vehicle base with a welded female Tele-Pole™

• Ball and socket mounting system offers shock and vibration damping

• Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern

• Backed by a lifetime warranty

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 26.85"

SOCKET TO SOCKET LENGTH
8"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL SIZE
C Size (1.5")

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
5.27 lb
