RAP-B-166-2-UN10U

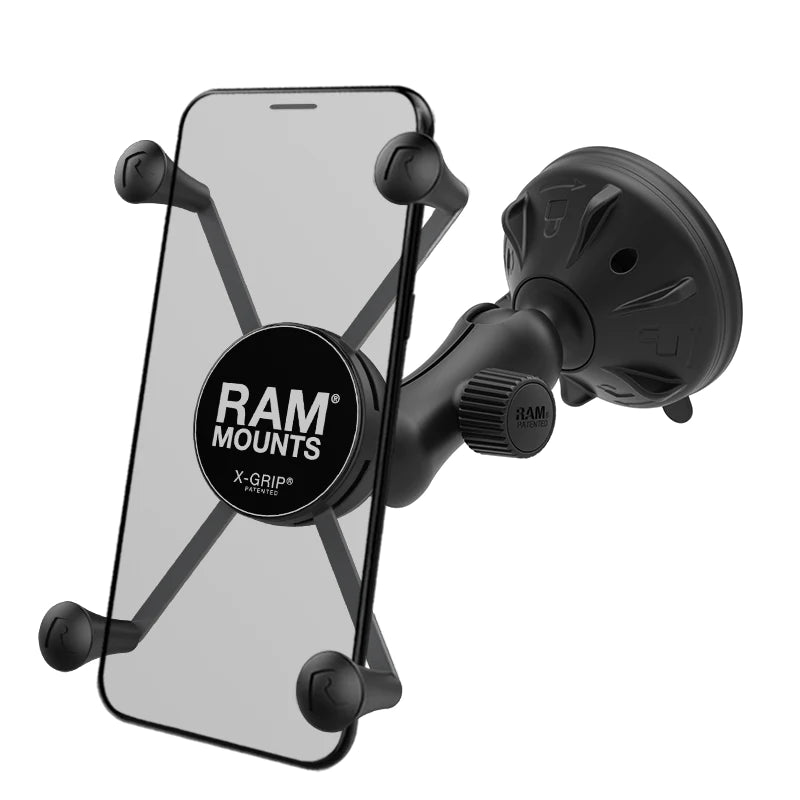

RAM® X-Grip® Large Phone Mount with Low Profile Suction Base - RAP-B-166-2-UN10U

The RAP-B-166-2-UN10 consists of a 2.75" twist lock suction cup base, double socket system and universal spring loaded X-Grip® cradle for large phones. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic.

The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED:

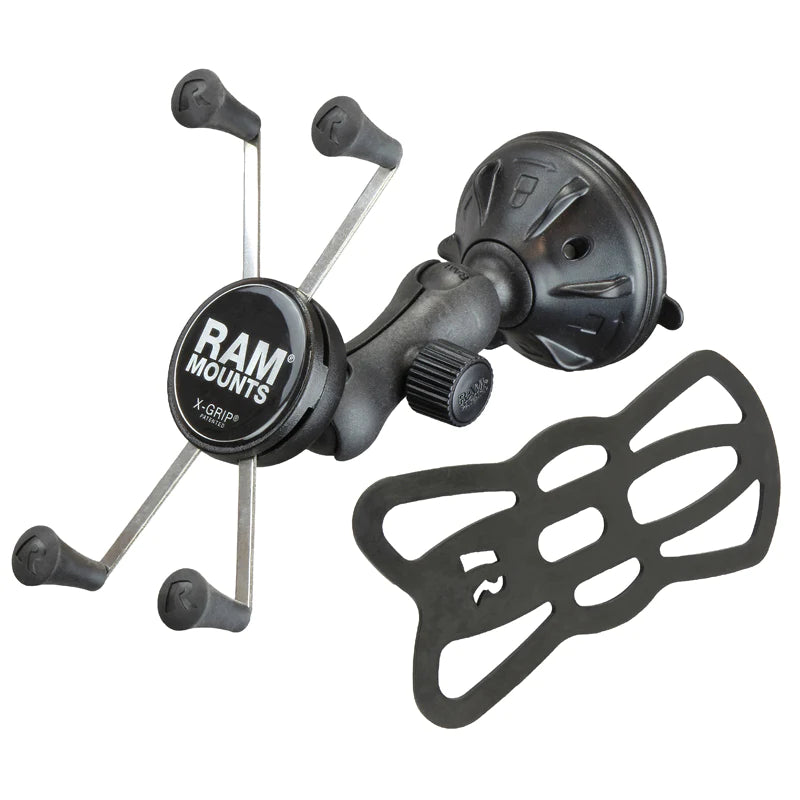

(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS:

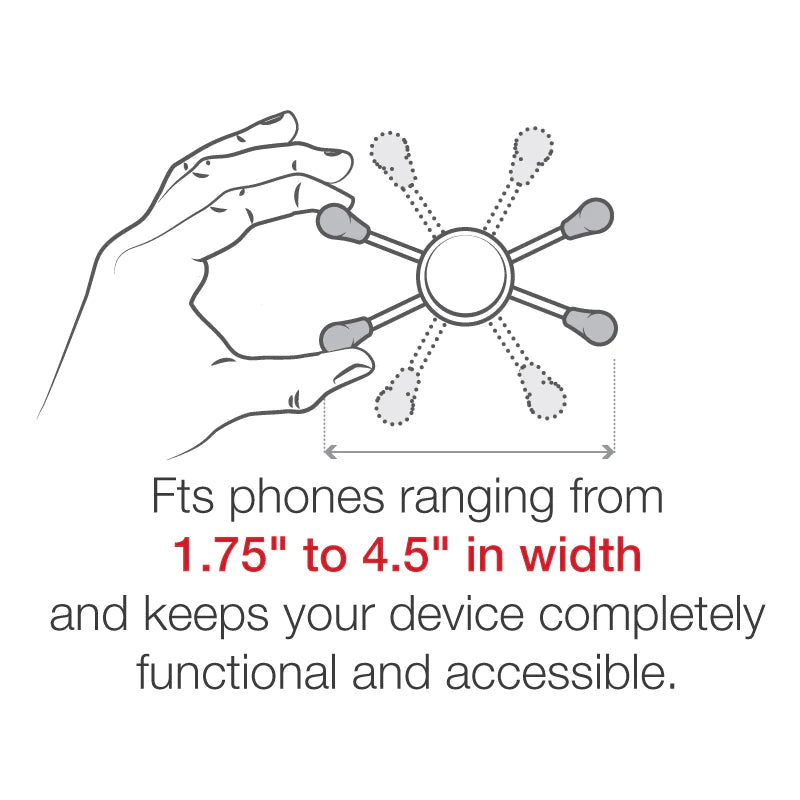

Width Range: 1.75" - 4.5"
Depth Range: .875" max

SUCTION SIZE:
2.75" Diameter

SOCKET TO SOCKET LENGTH:
2.1"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
High strength composite
Stainless steel

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.43 lb

COMPATIBLE DEVICES
  • Apple:

    iPhone 6s Plus iPhone 7 Plus iPhone 8 Plus iPhone Xs Max iPhone 11 Pro Max iPhone 12 Pro Max iPhone 13 Pro Max iPhone 14 Plus iPhone 14 Pro Max

  • Blackberry:

    Evolve X

  • Blackview:

    BV9900 BV9900 Pro

  • Cat:

    S42 S62 S62 Pro

  • Garmin:

    Drive 50 Drive 51 LM Drive 52 Drive 61 LM DriveSmart 51 LMT-S DriveSmart 61 LMT-S DriveTrack 71 Nuvi 2788LM RV 660LMT RV 770 LMT-S

  • Google:

    Pixel 2 XL Pixel 3 XL Pixel 3a XL Pixel 7 Pro

  • HTC:

    Bolt U Ultra

  • Huawei:

    Mate 20 X

  • Kyocera:

    DuraSport 5G

  • LG:

    Fiesta 2 LTE Fiesta LTE G8S ThinQ Harmony Stylo 2 V Stylo 3 Stylo 3 Plus Titan Stylo 4 V20 V50 ThinQ X charge X venture

  • Magellan:

    TR5 TR7

  • Motorola:

    moto e4 plus moto g4 moto z2 moto z2 play moto z3

  • Rand:

    McNally Road Explorer 5 McNally TND 540

  • Razer:

    Phone 2

  • Samsung:

    Galaxy A7 Galaxy A7 (2017) Galaxy A7 (2018) Galaxy A8 Galaxy A8 (2016) Galaxy A9 (2016) Galaxy A9 Pro (2016) Galaxy A9 (2018) Galaxy A70 Galaxy A80 Galaxy A90 5G Galaxy C7 Galaxy C7 Pro Galaxy C9 Pro Galaxy E7 Galaxy Grand Neo Plus Galaxy J7 Galaxy J7 Max Galaxy J7 V Galaxy Note 5 Galaxy Note 10 Plus Galaxy Note20 Ultra Galaxy On7 Galaxy S10 5G Galaxy S8 Galaxy S8 Active Galaxy S21 5G Galaxy S21+ 5G Galaxy S21 Ultra 5G Galaxy S22 Ultra 5G Galaxy S23+ Galaxy S23 Ultra

  • Sonim:

    RS60

  • Sony:

    Xperia C4 Xperia L2 Xperia XA Ultra Xperia XA1 Ultra Xperia XA2 Ultra Xperia XZ Premium
