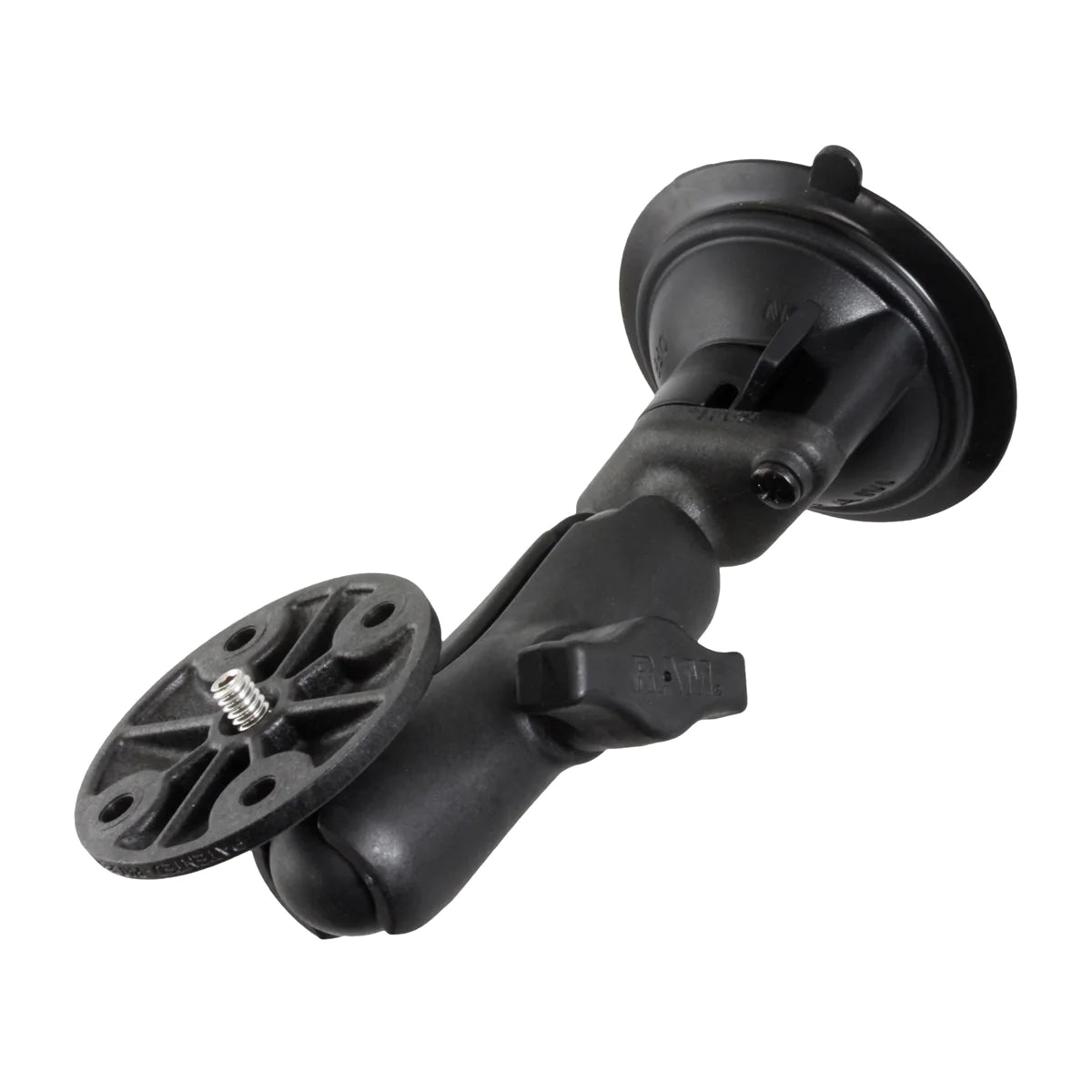

RAM® Twist-Lock™ Composite Suction Mount with Round Plate & 1/4"-20 Stud - RAP-B-166-202AU

The RAP-B-166-202AU consists of a 3.3" suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

SUCTION SIZE:
3.3" Diameter

SOCKET TO SOCKET LENGTH:
3"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.67 lb

RAM® Twist-Lock™ Composite Suction Cup Base with Ball - RAP-B-224-1U

&

RAM® Composite Double Socket Arm - B Size Medium - RAP-B-201U

&

RAM® Composite Ball Adapter with Round Plate and 1/4"-20 Threaded Stud - RAP-B-202AU

• Cameras:

  that contain 1/4"-20 Female Threaded Hole

  RAM® Portable Friction Dashboard Base - RAP-279B

  RAM® Black 3.5" Adhesive Plate for Suction Cups - RAP-350-35BU
