RAM® Twist-Lock™ Composite Suction Cup Mount with 1/4"-20 Camera Adapter - RAP-B-224-1-366

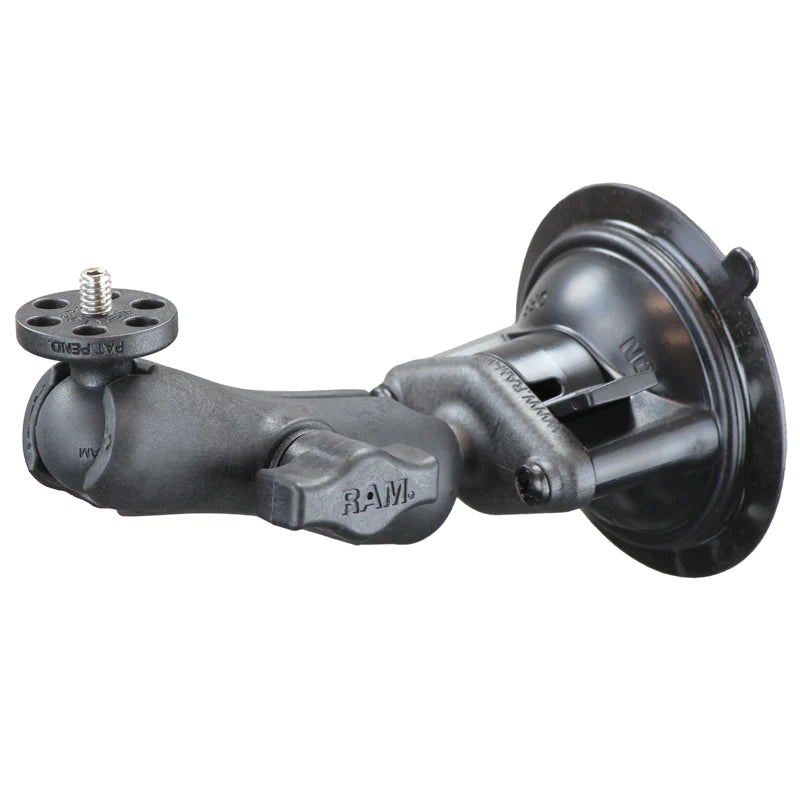

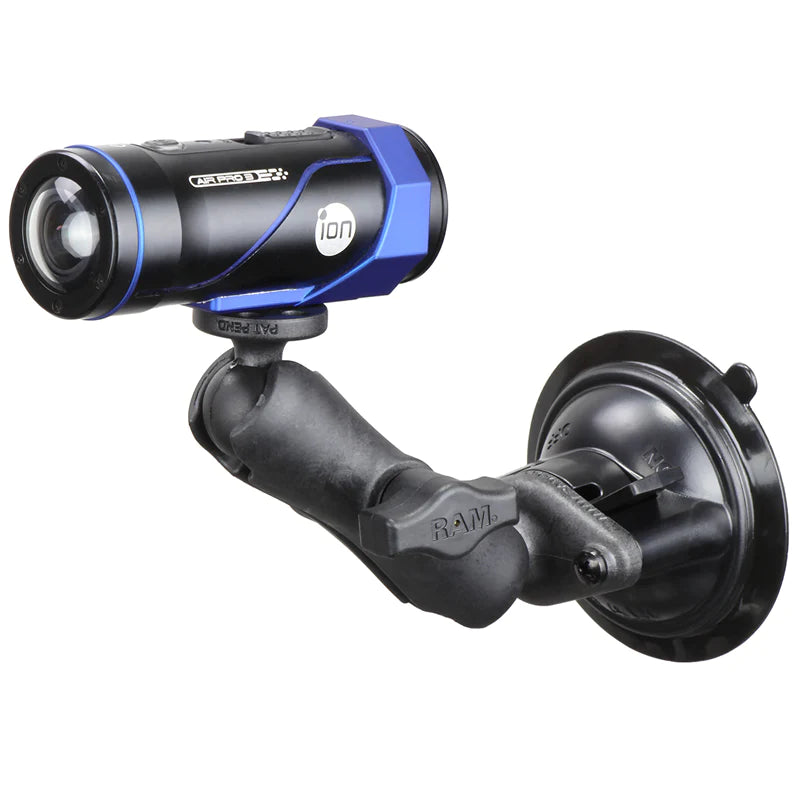

The RAP-B-224-1-366 consists of a 3.3" suction cup twist lock base, high strength composite double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED:
Assembly Hardware

SUCTION SIZE:
3.3" Diameter

SOCKET TO SOCKET LENGTH:
3"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS:
High strength composite

PACKAGING TYPE:
Retail Bag

WEIGHT:
0.58 lb
