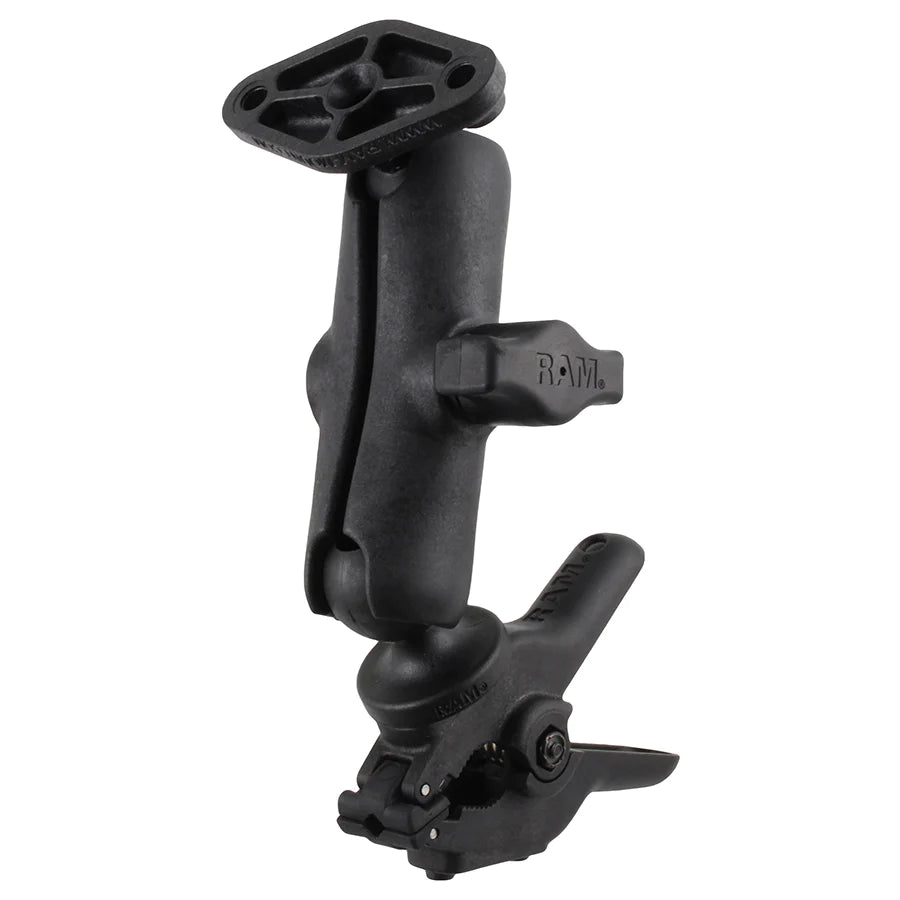

RAM® Tough-Clamp™ Small Double Ball mount with Diamond Plate - RAP-B-397-1-238U

The RAP-B-397-1-238U consists of the RAM Tough-Clamp™ clamping base, 1" ball compatible STANDARD length double socket arm and diamond base adapter. The RAM Tough-Clamp™ includes a 1" ball which can be used to mount a variety of products utilizing RAM's vast selection of mounting solutions. The diamond base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED:
Assembly Hardware

CLAMP RANGE:
.25" - .75" diameter 0" - 1" flat surfaces

SOCKET TO SOCKET LENGTH:
3"

HOLE PATTERN:
2-Hole AMPS: 1.912"

BALL SIZE:
B Size (1")

WEIGHT CAPACITY:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

WEIGHT:
0.41 lb
