Placement of Mount:
Passenger side, front, where seat rail frame attaches to floor board.
Drilling Requirements:
Yes
Dimensions:
A = 3", B = 7.5", C = 2.029", Base Hole Centers = 3.34"

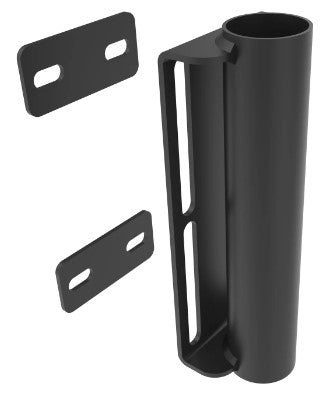

Back Plate Dimensions:
A = 3.25", B = 1.5", Back Plate Hole Centers = 2"
Height Adjustability:
Height can be adjusted from 7.75” to 12.7.5”, depending on the upper tube size.
Note:
RAM-VB-181 can be mounted on both sides of RAM 9", 13", 17" and 21" Console Boxes.
Weight:
3.0 lbs.
