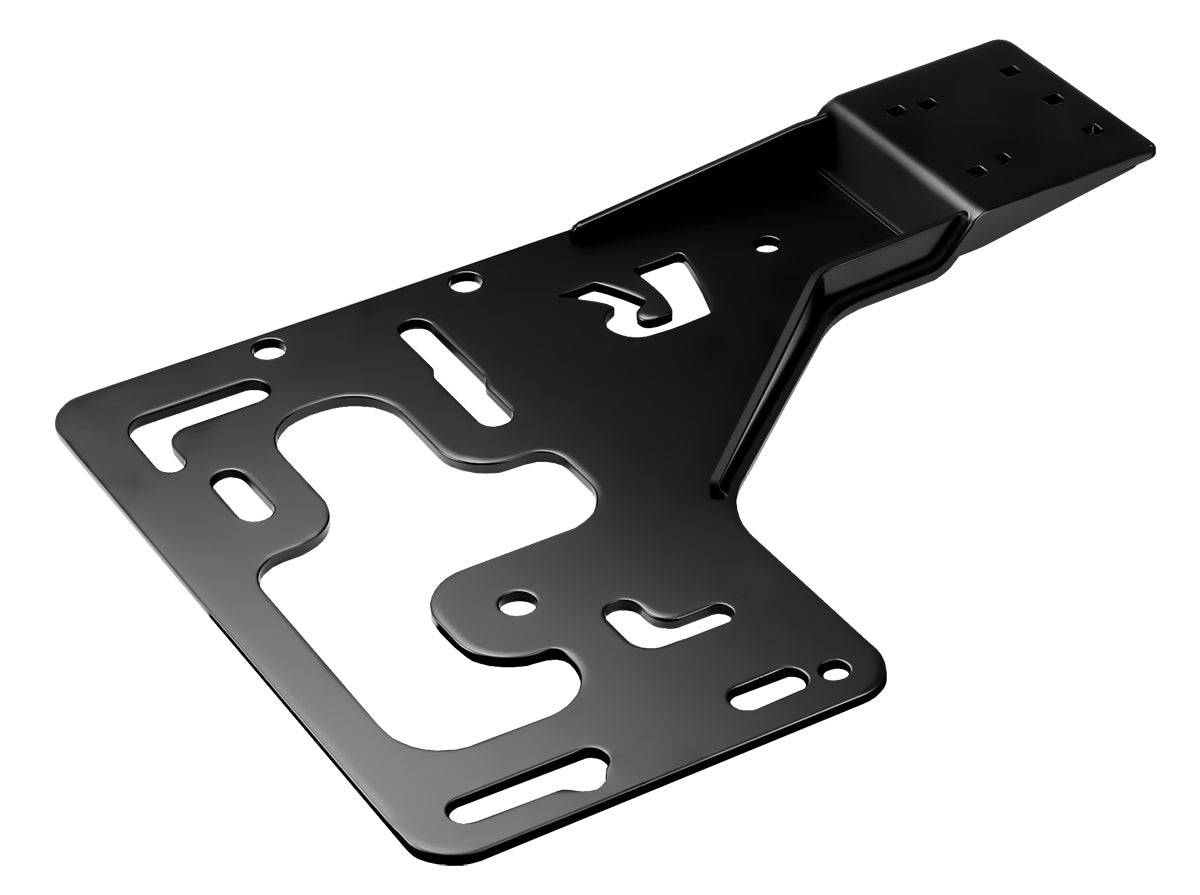

Universal No-Drill™ Vehicle Base for heavy duty trucks - RAM-VB-168

The RAM^® No-Drill^™ mounting base features a heavy-duty steel mounting base custom designed to fit these vehicles perfectly. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the base in the vehicle. This vehicle base will accept all the Tele-Pole systems.

Placement of Mount:
Passenger side on the floor, under front seat

Drilling Requirements:
No - attaches to seat studs

Seat Configuration:
Bucket/Bench

Pole:
Sold Separately

Material:
Powder Coated Steel

Features:
Quick installation with no drilling needed.

Notes:
If the heater box in under the seat, the installer may need to drill holes in the base to accommodate vehicle mounting holes or studs. Also, the heater box may cause the system to sit higher than normal. Pole may be cut down by installer to lower kit. This will not void the warranty. May not work with swivel style seats for big rigs.

Weight:
14.0 lbs.
