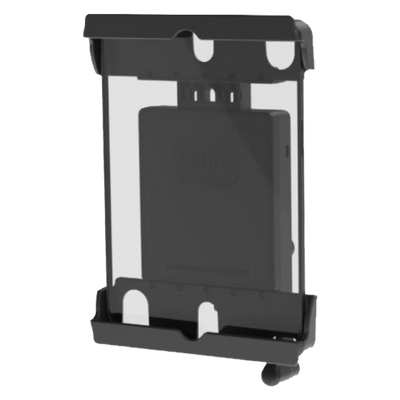

      RAM® Tab-Lock™ Fitment Guide

      *For non-locking tablet holder options, click here to see RAM® Tab-Tite™ & X-Grip® Fitment Guide
      Part Number Height Range (in) Max Width (in) Max Depth (in)
      RAM-HOL-TABL11U 6.8 - 8.675 5.31 0.3
      RAM-HOL-TABL2U 7 - 8.875 5.31 0.56
      RAM-HOL-TABL12U 7.125 - 9 5.68 1
      RAM-HOL-TABL4U 7.375 - 9.25 5.31 1.06
      RAM-HOL-TABL22U 7.38 - 9.255 4.25 0.4
      RAM-HOL-TABL18U 7.5 - 9.375 4.7 0.43
      RAM-HOL-TABL16U 7.5 - 9.375 5.05 0.82
      RAM-HOL-TABL30U 7.82 - 9.695 5.375 0.3125
      RAM-HOL-TABL27U 7.88 - 9.755 5.3 0.37
      RAM-HOL-TABL24U 8.08 - 9.955 4.96 0.36
      RAM-HOL-TABL29U 8.25 - 10.125 5.88 0.67
      RAM-HOL-TABL23U 8.32 - 10.195 5.3 0.62
      RAM-HOL-TABL-SAM29U 8.5 - 10.375 5.23 0.6
      RAM-HOL-TABL3U* 8.5 - 10.375 7.75 0.56
      RAM-HOL-TABL6U* 8.625 - 10.5 6.8 0.5
      RAM-HOL-TABL8U 9 - 10.875 8.31 1.12
      RAM-HOL-TABL28U 9 - 10.875 6.65 0.315
      RAM-HOL-TABL31U 9.375 - 11.25 5.875 0.3125
      RAM-HOL-TABL26U 9.38 - 11.255 7 0.34
      RAM-HOL-TABL20U 9.25 - 11.125 8.25 1.1
      RAM-HOL-TABL17U 9.5 - 11.375 7.43 0.875
      RAM-HOL-TABL33U 9.55 - 11.425 6.95 0.66
      RAM-HOL-TABL25U 9.5 - 11.375 7.4 0.7
      RAM-HOL-TABL10U 9.75 - 11.625 8.62 1
      RAM-HOL-TABL34U 10.5 - 12.375 7.88 1.25
      RAM-HOL-TABL9U 10.625 - 12.5 8.25 2
      RAM-HOL-TABL19U 10.625 - 12.5 7.75 0.93
      RAM-HOL-TAB36LU 11.5 - 13.375 8.125 0.79

      *The RAM-HOL-TABL3U and RAM-HOL-TABL6U have cup designs that may technically support your device but do not wrap around the corners of the tablet as effectively as other cup designs. These holder options are only recommended for lighter duty applications.
