GDS® Key Locking Form-Fit Holder for Zebra ET5x 10.1" Series - RAM-HOL-ZE11KLU

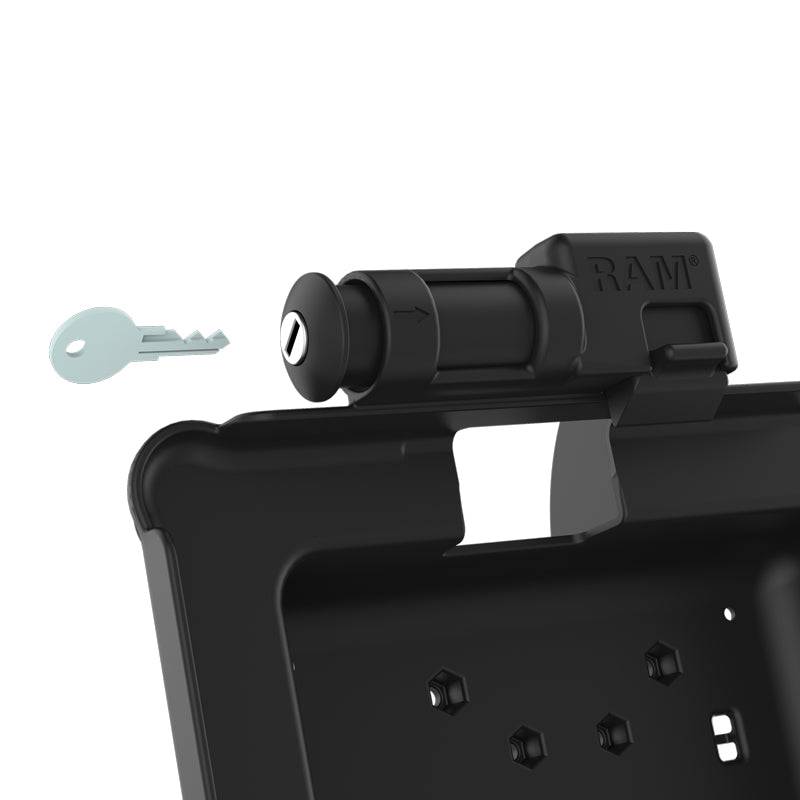

• Spring-loaded key-locking form-fit holder perfectly secures the Zebra ET5x 10.1" series tablets with Rugged Frame; includes set of keys for locking capabilities

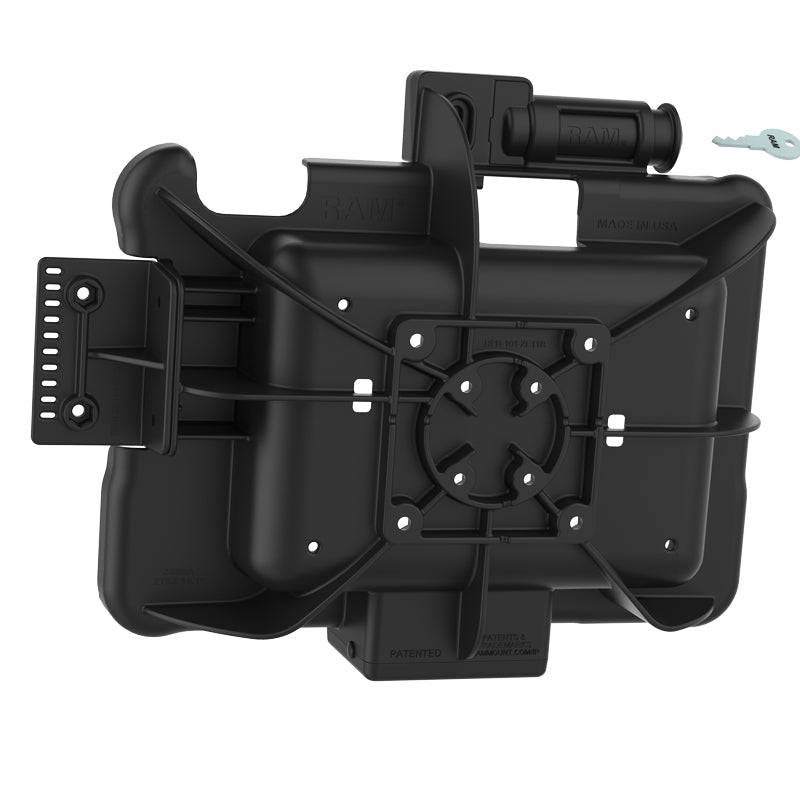

• Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
• Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked
• Backed by a lifetime warranty

OVERVIEW

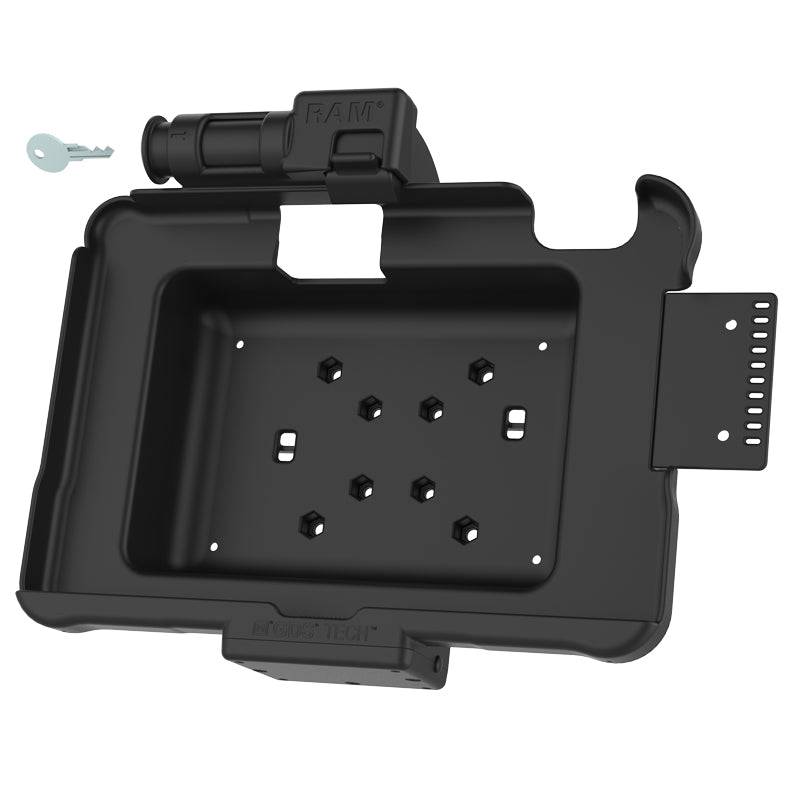

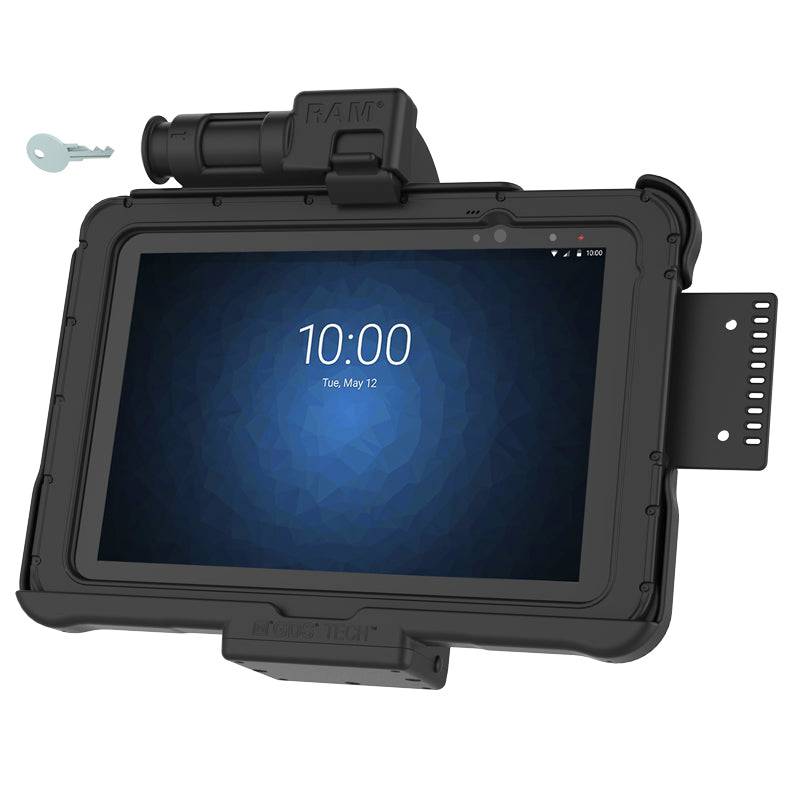

The GDS^® Vehicle Dock features a key-locking form-fit design specifically for the Zebra ET5x 10.1" series tablets, including cutouts leaving all buttons and ports exposed. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM^® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM^® 2-hole diamond bases for device mounting and features a cable management system.

HARDWARE INCLUDED

(2) Keys
(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(6) Small Cable Ties

HOLL PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.84 lbs.

Zebra

 Sell Sheet - PDF

 Assembly Instructions for Zebra Dock - PDF
