      Home / Products / GDS® Modular 30-64V Hardwire Charger with 90-Degree DC Cable - RAM-GDS-CHARGE-M55-V8BU
      GDS® Modular 30-64V Hardwire Charger with 90-Degree DC Cable - RAM-GDS-CHARGE-M55-V8BU - OC Mounts

      RAM-GDS-CHARGE-M55-V8BU

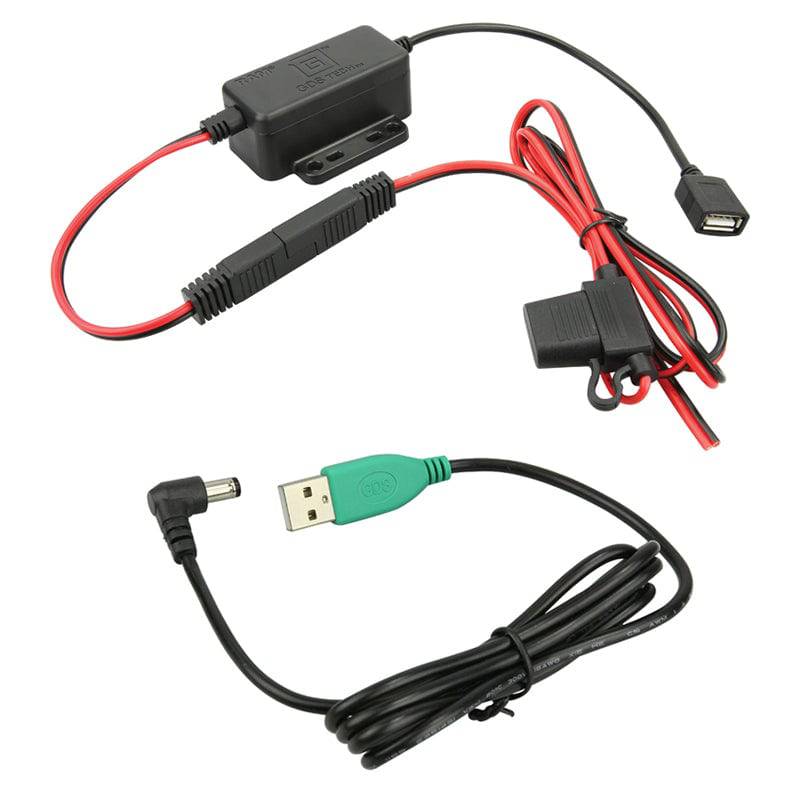

      GDS® Modular 30-64V Hardwire Charger with 90-Degree DC Cable - RAM-GDS-CHARGE-M55-V8BU

      Out of Stock    ( Chat Live to get an ETA )

      • Hardwire charger includes USB Type-A female connector; 30V-64V input range, 5V output. In addition it includes the USB Type-A male connection and a 5.5mm DC connector.
      • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
      • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
      • Backed by a 3-year warranty

      OVERVIEW

      The GDS® Modular Hardwire Charger with Female USB Type A connector and a USB Type-A male connector which is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range.

      PACKAGING TYPE

      Poly Bag

      INPUT VOLTAGE

      30V-64V DC

      OUTPUT VOLTAGE

      5-9VDC

      OUTPUT CURRENT

      2.5A max

      INPUT CONNECTOR

      90° DC Plug

      INPUT CABLE LENGTH

      1.2 Meters including 2 Pole Flat Marine Connector

      OUTPUT CABLE LENGTH

      .2 Meters

      OPERATING TEMPERATURE

      -10°C to +70°C

      STORAGE TEMPERATURE

      -40°C to +70°C

      COMPLIANCE

      Over Voltage Protection
      Short Circuit Protection
      Reverse Polarity Protection
      RoHS Compliance
      WEEE Compliance
      SAE J-1113-5 Load Dump (Transient Voltage)
      Moisture Resistant

      CERTIFICATIONS

      CE Certification
      e-Mark Certification
      RCM Certification
      FCC Certification

      WEIGHT

      0.42 lbs.

      WARRANTY STATUS

      3 year warranty

      GDS® Modular 30-64V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V8BU

      GDS® Genuine USB Type A With 90-Degree DC Cable - RAM-GDS-CAB-USBA-DC90-1U

      Instructions for Modular Hardwire Charger - PDF
