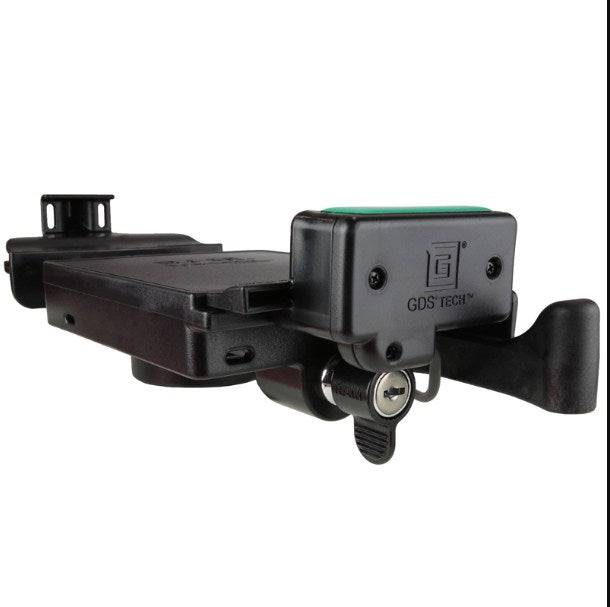

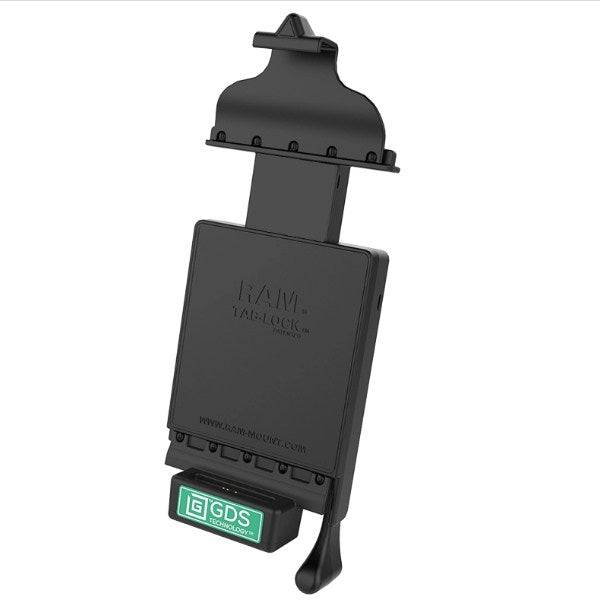

GDS® mUSB Vehicle Dock for IntelliSkin® Next Gen Tablets - RAM-GDS-DOCKL-V9-OMT2U

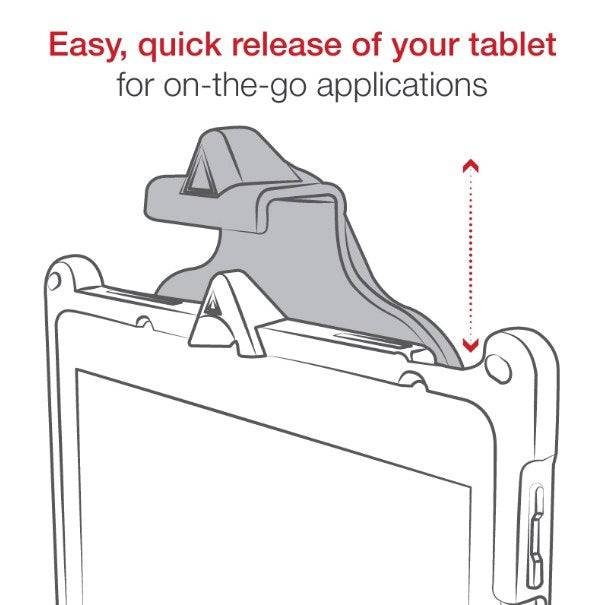

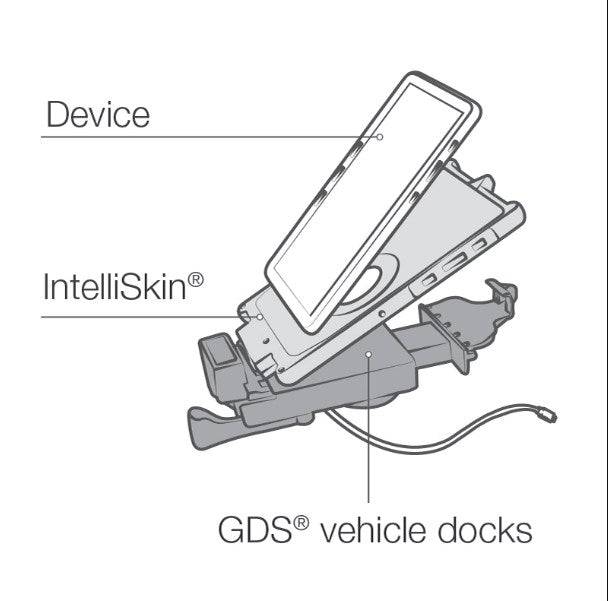

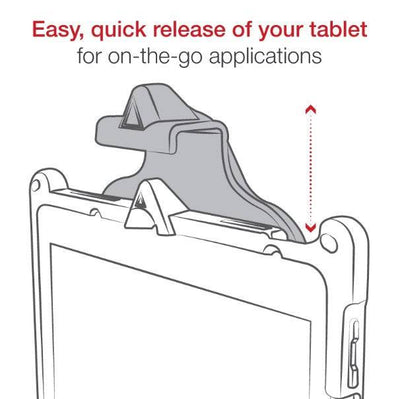

The mUSB locking vehicle dock for IntelliSkin^® Next Generation features GDS^® Technology^™ to enable data sync and charging capabilities on the go. This spring-loaded, quick release cradle features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes GDS^® pogo pins and a mUSB pigtail. Without the need to remove your IntelliSkin^® Next Generation sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.

HARDWARE INCLUDED

Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

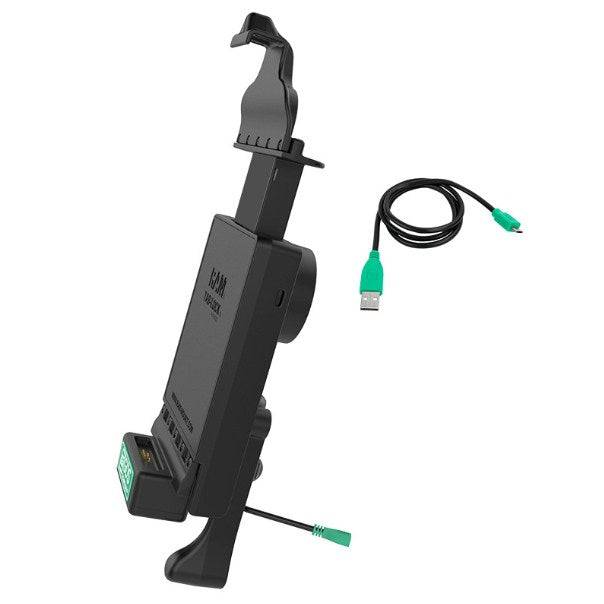

(1) Micro USB 2.0 Cable

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 12V @ 2A

POWER OUTPUT

15W

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.35 Meter

WEIGHT

1.55 lbs.

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

• mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A.
