GDS® mUSB Vehicle Dock for Samsung Tab A 8.4 & Tab A 8.0 (2019) - RAM-GDS-DOCKL-V9-SAM67U

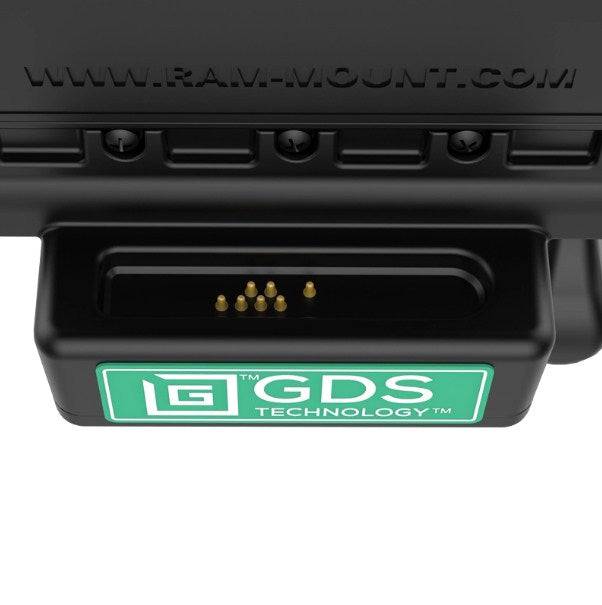

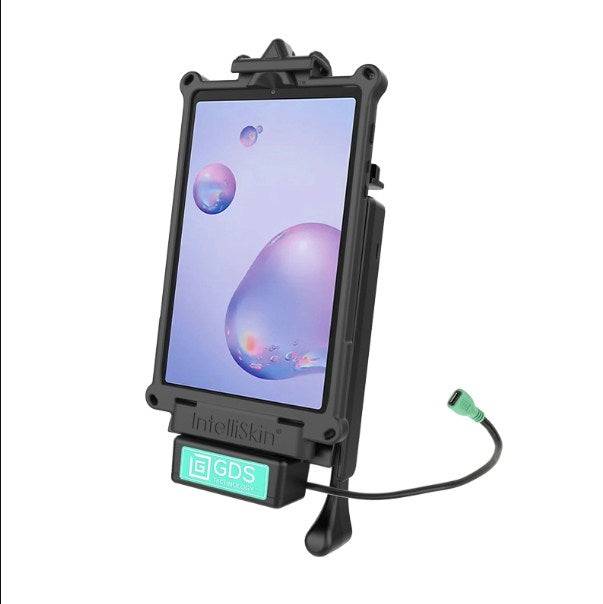

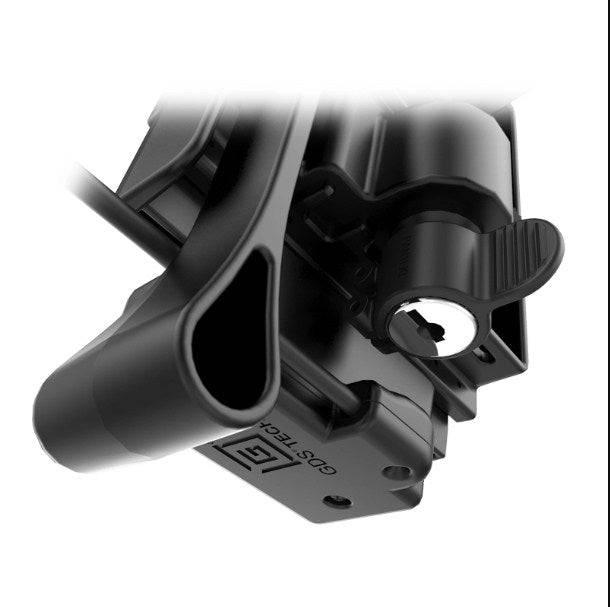

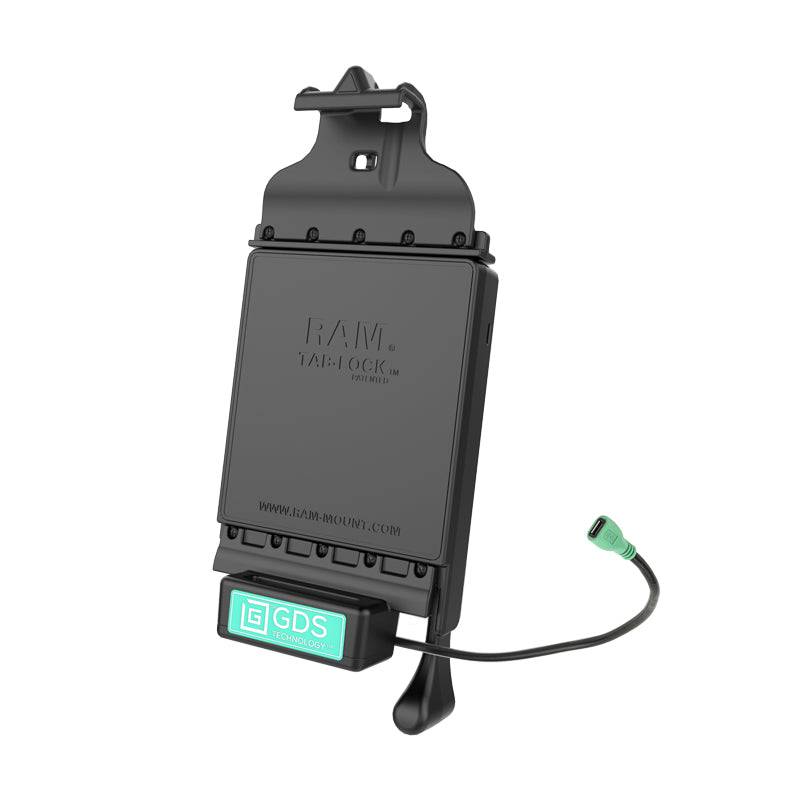

This mUSB locking vehicle dock for IntelliSkin^® Next Generation features GDS^® Technology^™ to enable data sync and charging capabilities on the go. This spring-loaded, quick release cradle is designed specifically to fit the Samsung Galaxy Tab A 8.4 (2020) or the Tab A 8.0 (2019) in an IntelliSkin^® protective sleeve, and features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes GDS^® pogo pins and a mUSB pigtail. Without the need to remove your IntelliSkin^® Next Generation sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. The top cup of this system is specifically designed to allow access of the 3.5mm headphone jack of the tablet while in the dock. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.

HARDWARE INCLUDED

Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

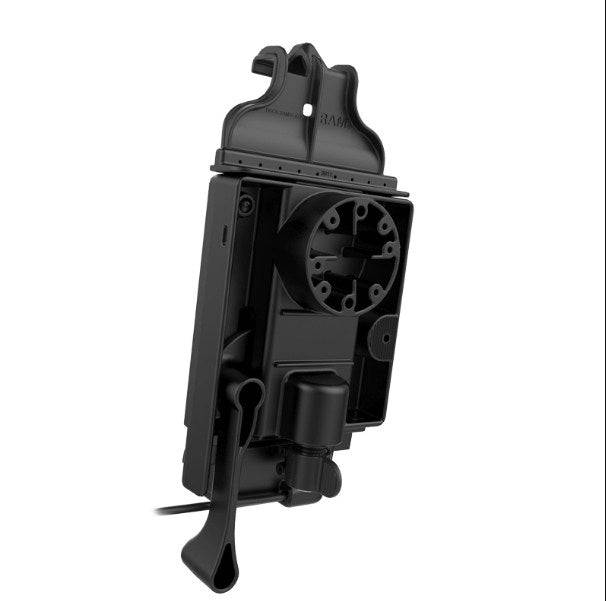

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 12V @ 2A

POWER OUTPUT

15W

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.35 Meter

WARRANTY STATUS

3 year warranty
