GDS-DOCKNLL-ZE21PD2U

GDS® Power + Dual USB Dock with Latch for Zebra ET4x 10" Tablet - GDS-DOCKNLL-ZE21PD2U

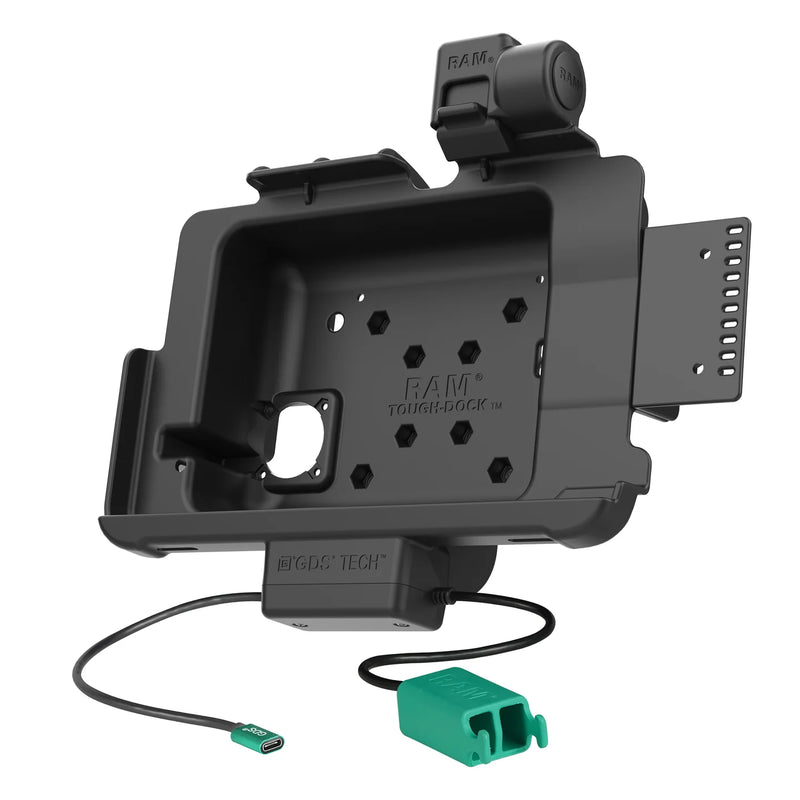

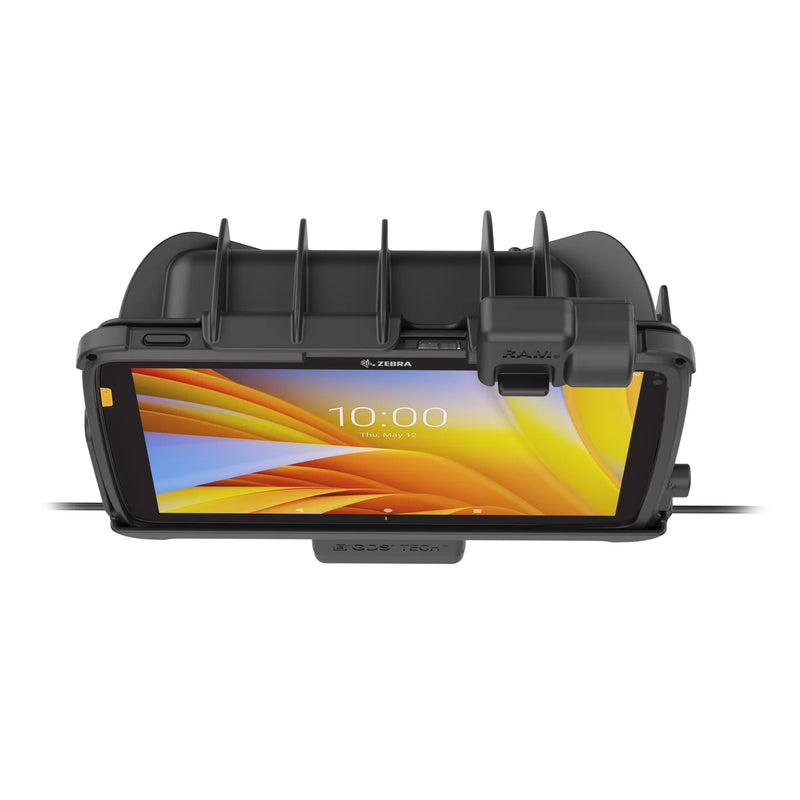

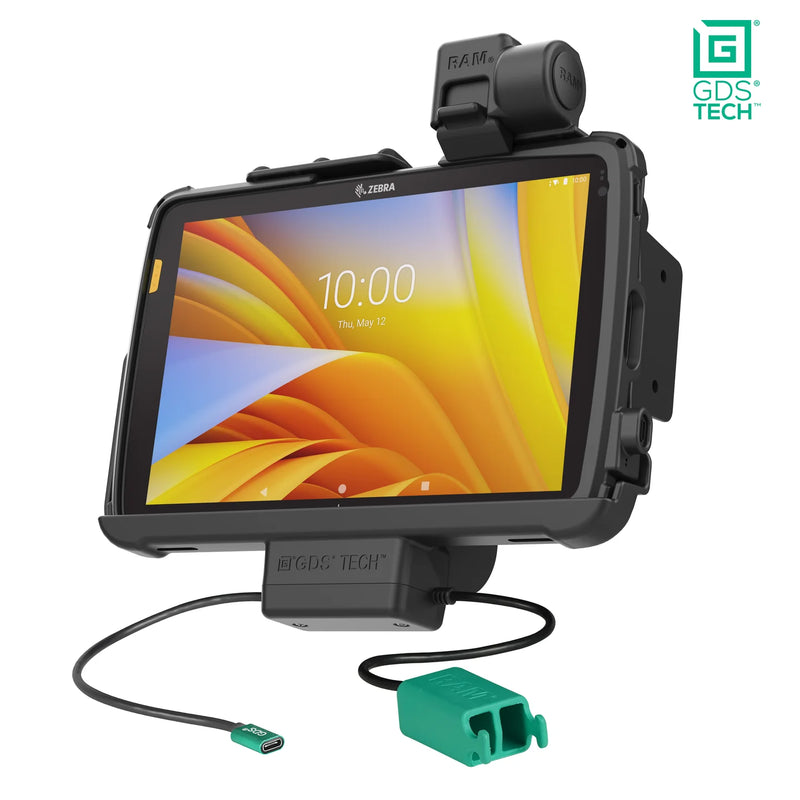

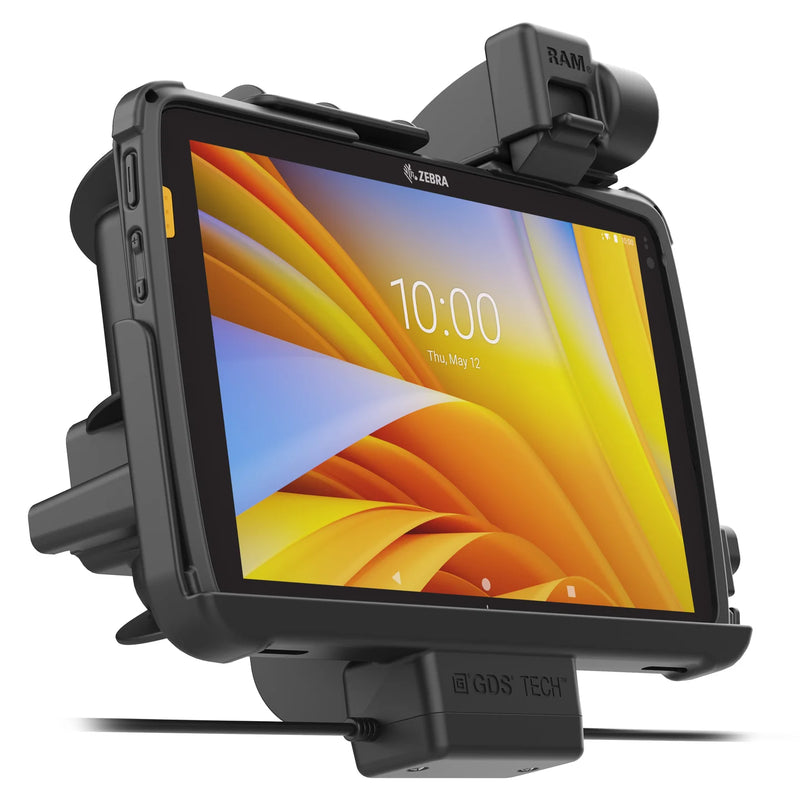

For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE21PD2U) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 10" is docked. A dual USB Type-A pigtail connector is provided for adding two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™.

To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.



  • Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with IntelliSkin® protective sleeve, featuring GDS® Technology™

  • When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked

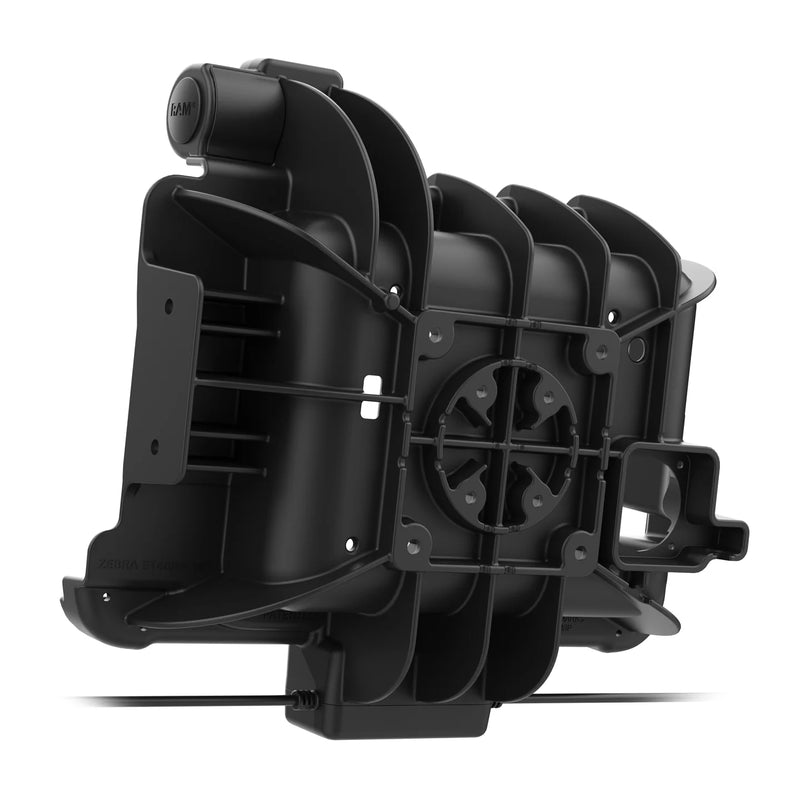

  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

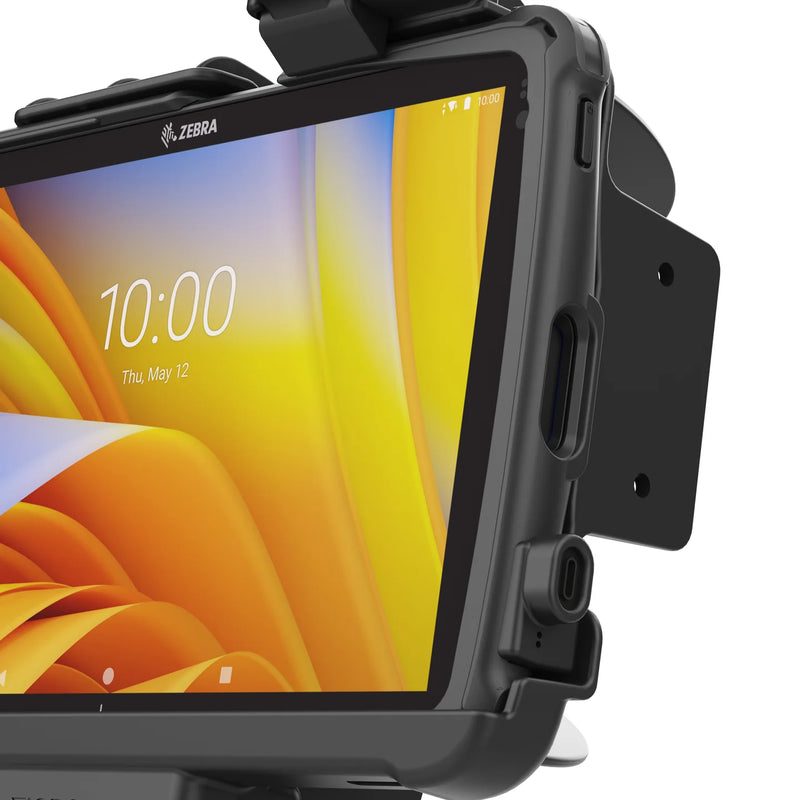

  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket

  • Backed by a 3-year warranty

 HARDWARE INCLUDED
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

HOLE PATTERN
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

OUTPUT VOLTAGE
5V - 20V @ 3A

POWER OUTPUT
60W

INPUT CONNECTOR
USB Type-C

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
(2) USB 2.0 Type A

OUTPUT CABLE LENGTH
215mm

TRANSFER SPEED
12Mbps

CERTIFICATIONS
CE Certification
E-Mark Certification
RCM Certification
FCC Certification

WARRANTY
3 year warranty

WEIGHT
1.69 lb



Zebra

  • ET40 10" Tablet with Rugged Frame
  • ET45 10" Tablet with Rugged Frame



Instructions:

PDF Icon Assembly Guide for Zebra ET4x Dock


IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
